Power Source Circuit

Power Source Circuit

DESCRIPTION
This is the power source circuit for the outer mirror control ECU.

WIRING DIAGRAM

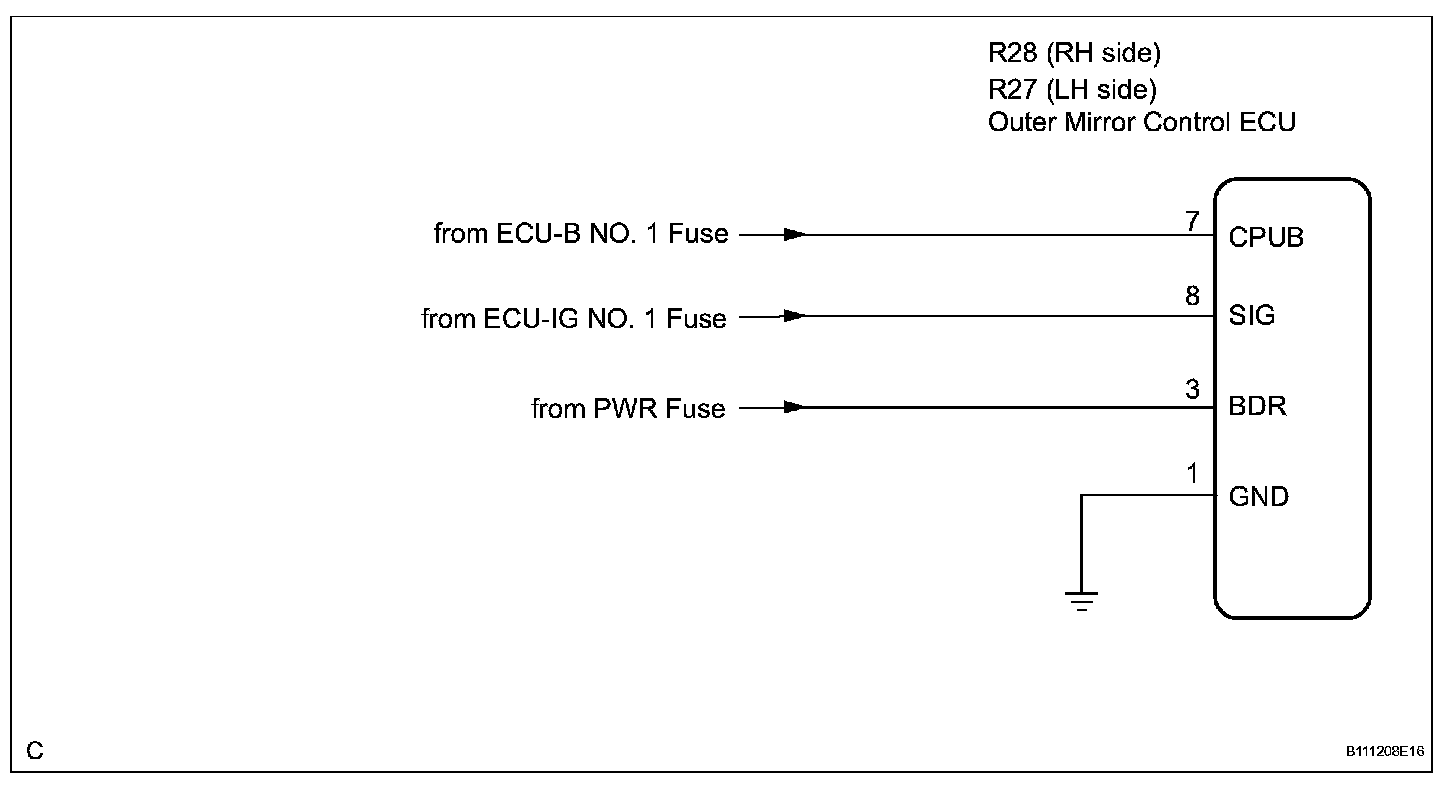

Wiring Diagram:





INSPECTION PROCEDURE

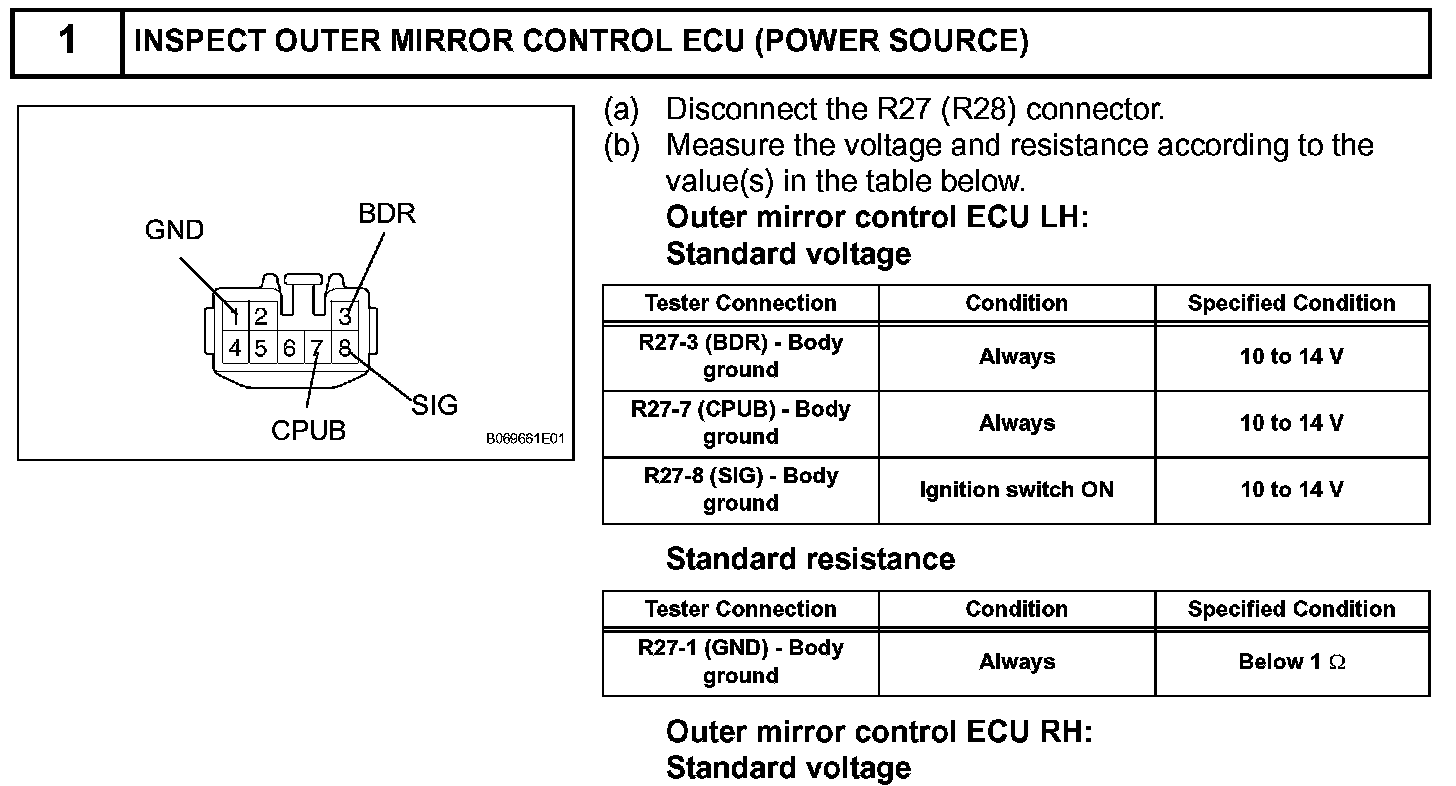

Step 1:

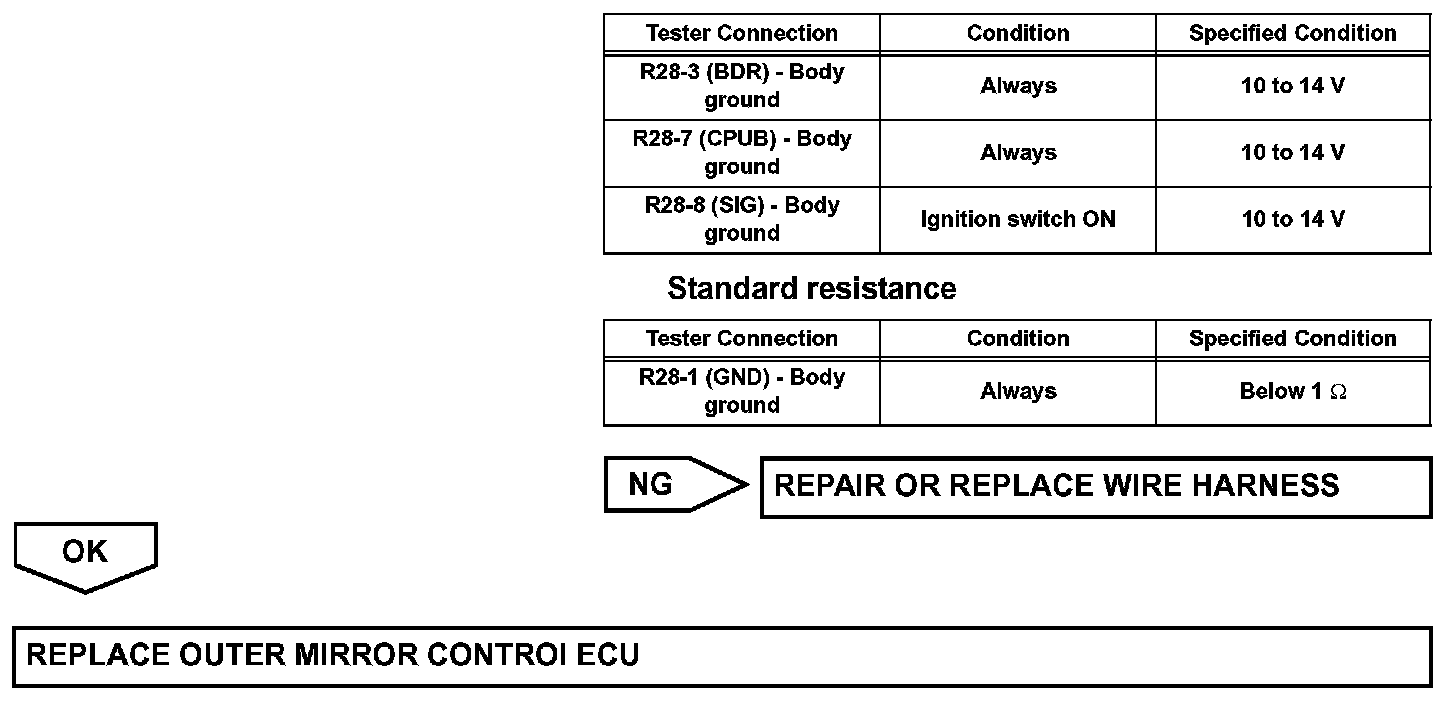

Step 1(Continued):
