Power Mirror Switch: Testing and Inspection
OUTER MIRROR SWITCHINSPECTION

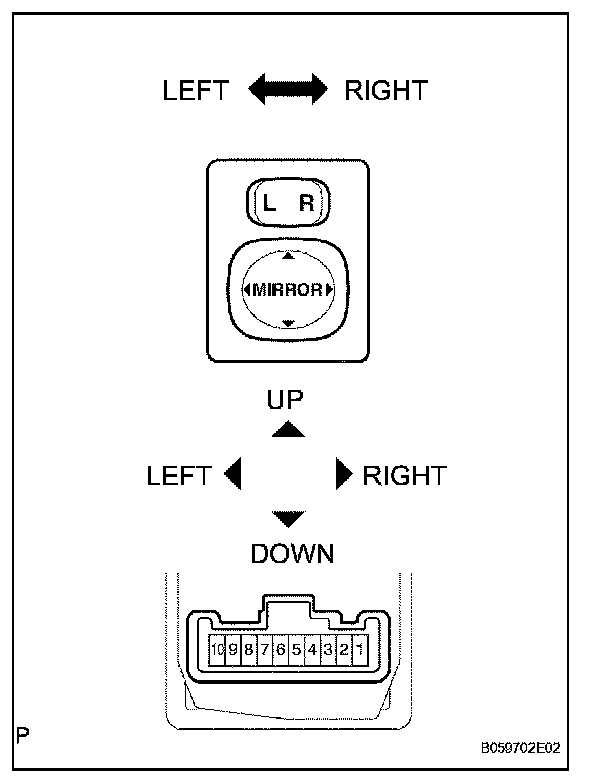

1. INSPECT OUTER MIRROR SWITCH (W/ MEMORY SEAT)
a. Inspect the outer mirror switch.

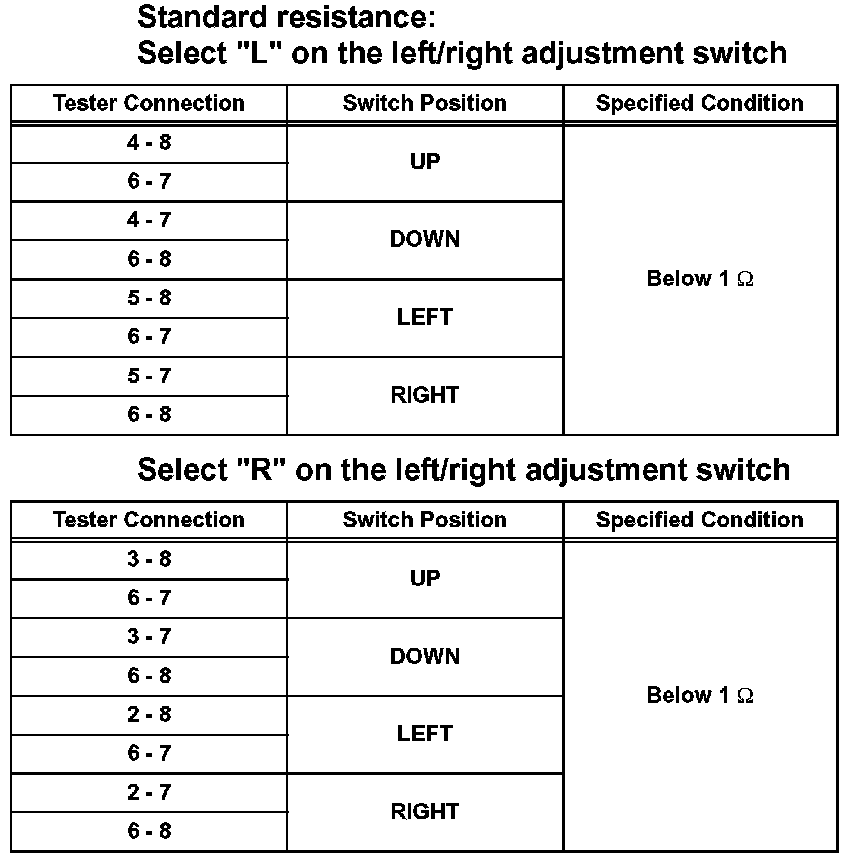

b. Measure the resistance according to the value(s) in the table below when the switch is operated.

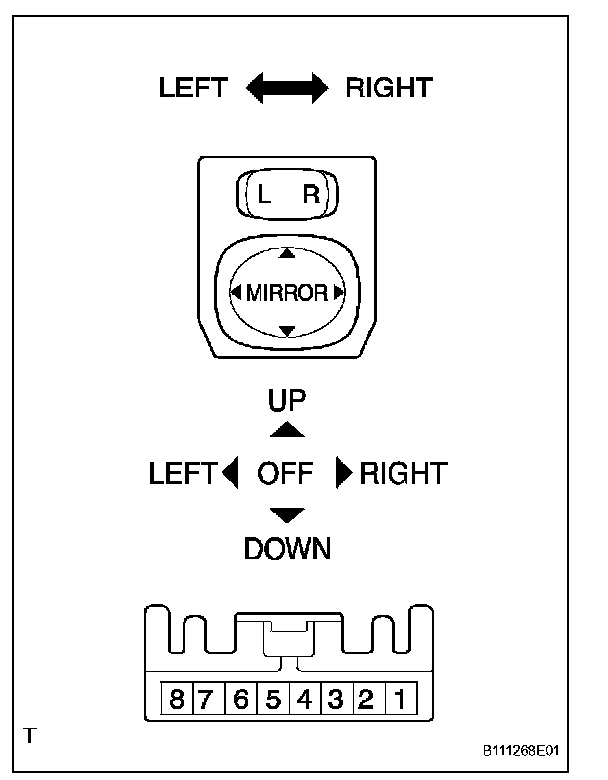

2. INSPECT OUTER MIRROR SWITCH (W/o MEMORY SEAT)
a. Inspect the outer mirror switch.
b. Measure the resistance according to the value(s) in the table below when the switch is operated.
