Overhaul

Rear Console Box:

Rear Console Box:

DISASSEMBLY

1. REMOVE CONSOLE BOX CUP HOLDER
a. Remove the console box cup holder.

2. REMOVE BOX NO.1 SIDE PANEL




a. Disengage the 8 claws and remove the box No.1 side panel.

3. REMOVE REAR CONSOLE BOX LOWER




a. Remove the 6 screws.
b. Disengage the 4 clips and the claw, and remove the rear console box lower.

4. REMOVE CONSOLE BOX LIGHT SUB-ASSEMBLY




a. Disconnect each of the clamp and connectors, and remove the console box light sub-assembly.

5. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY




a. Disengage the 2 claws and remove the console box illumination light assembly.

6. REMOVE REAR CONSOLE BOX HOLDER CUP




a. Remove the 5 screws and the rear console holder cup.

7. REMOVE CONSOLE UPPER PANEL GARNISH FRONT




a. Remove the 4 screws and the console upper panel garnish front.

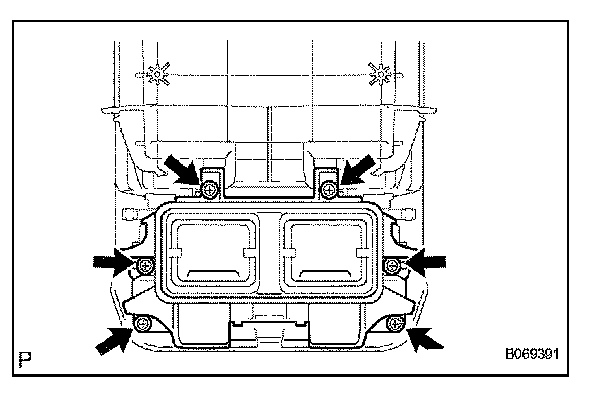

8. REMOVE CONSOLE BOX REGISTER ASSEMBLY




a. Remove the 6 screws and the console box register assembly.

9. REMOVE CONSOLE BOX SUB-ASSEMBLY UPPER




a. Remove the 4 screws.




b. Remove the 2 screws.




c. Disengage the 2 claws.




d. Disengage the 2 claws and remove the console box sub-assembly upper.

10. REMOVE CONSOLE COMPARTMENT DOOR LOCK

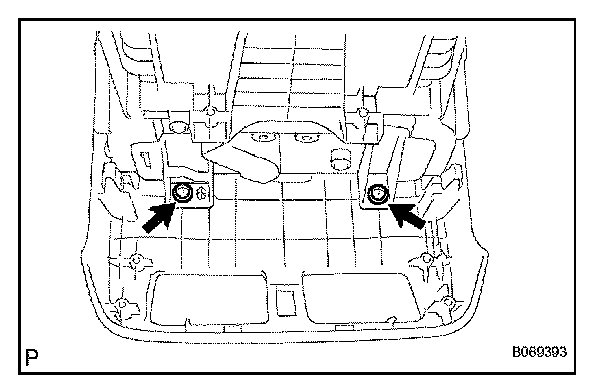

a. Remove the 2 screws and the console compartment door lock.

11. REMOVE CONSOLE UPPER PANEL GARNISH REAR




a. Remove the 3 screws and the console upper panel garnish rear.

REASSEMBLY

1. INSTALL CONSOLE UPPER PANEL GARNISH REAR




a. Install the 3 screws and the console upper panel garnish rear.

2. INSTALL CONSOLE COMPARTMENT DOOR LOCK

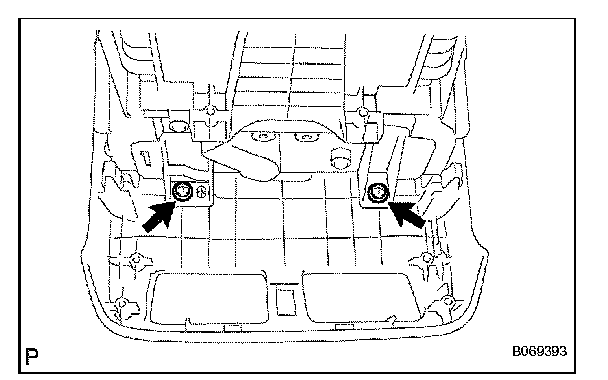

a. Install the 2 screws and the console compartment door lock.

3. INSTALL CONSOLE BOX SUB-ASSEMBLY UPPER




a. Engage the 2 claws.




b. Engage the 2 claws.




c. Install the 2 screws.




d. Install the 4 screws and the console box subassembly upper.

4. INSTALL CONSOLE BOX REGISTER ASSEMBLY




a. Install the 6 screws and the console box register assembly.

5. INSTALL CONSOLE UPPER PANEL GARNISH FRONT




a. Install the 4 screws and the console upper panel garnish front.

6. INSTALL REAR CONSOLE BOX HOLDER CUP




a. Install the 5 screws and the rear console holder cup.

7. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY




a. Engage the 2 claws and install the console box illumination light assembly.

8. INSTALL CONSOLE BOX LIGHT SUB-ASSEMBLY




a. Connect each of the clamp and connectors, and install the console box light sub-assembly.

9. INSTALL REAR CONSOLE BOX LOWER




a. Engage the 4 clips and the claw.
b. Install the 6 screws and the rear console box lower.

10. INSTALL BOX NO.1 SIDE PANEL




a. Engage the 8 claws and install the box No.1 side panel.

11. INSTALL CONSOLE BOX CUP HOLDER
a. Install the console box cup holder.
