Navigation Voice Circuit

Navigation Voice Circuit

DESCRIPTION

This circuit is used when the voice guidance in the navigation system is on.

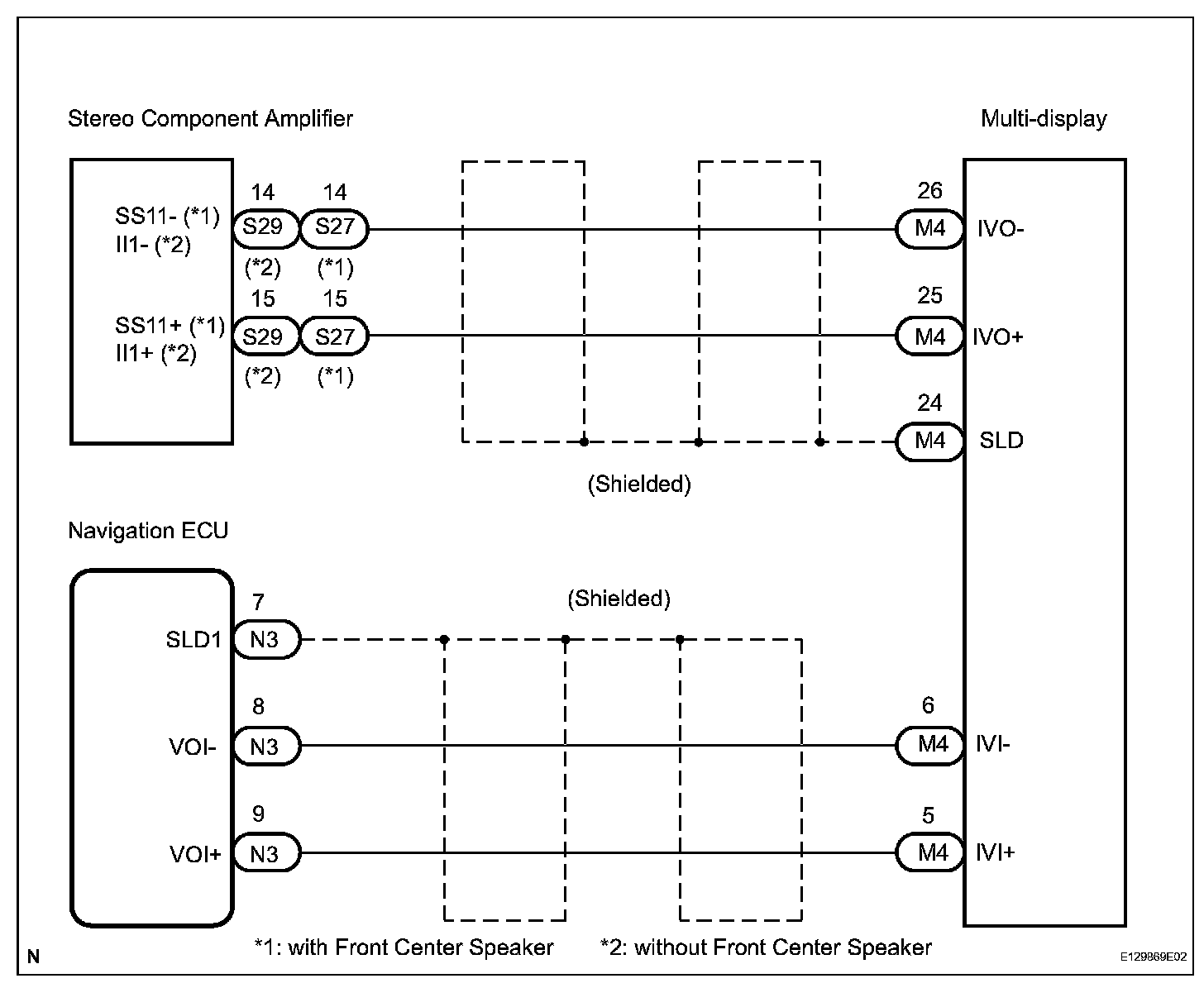

Wiring Diagram:

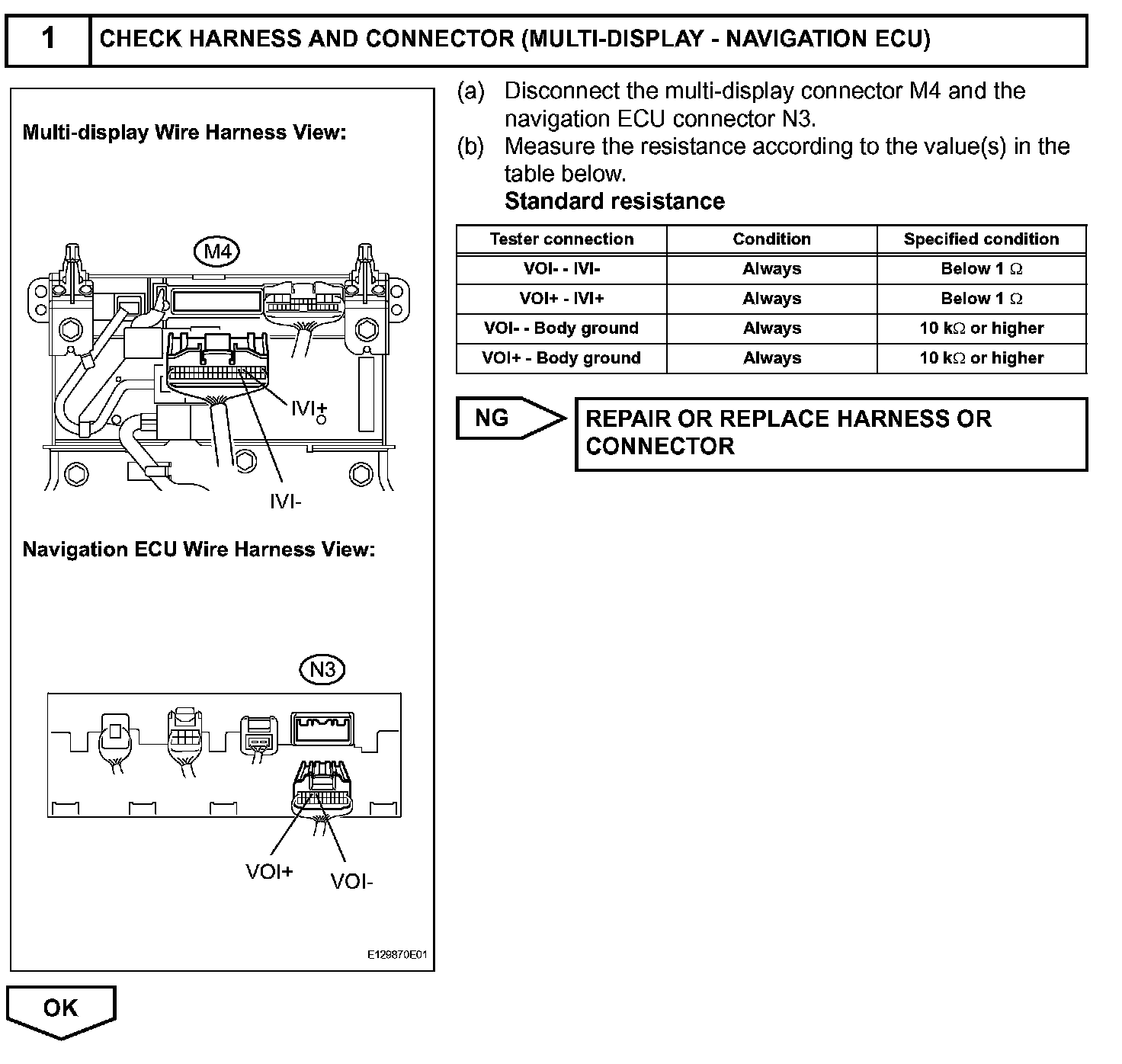

Step 1:

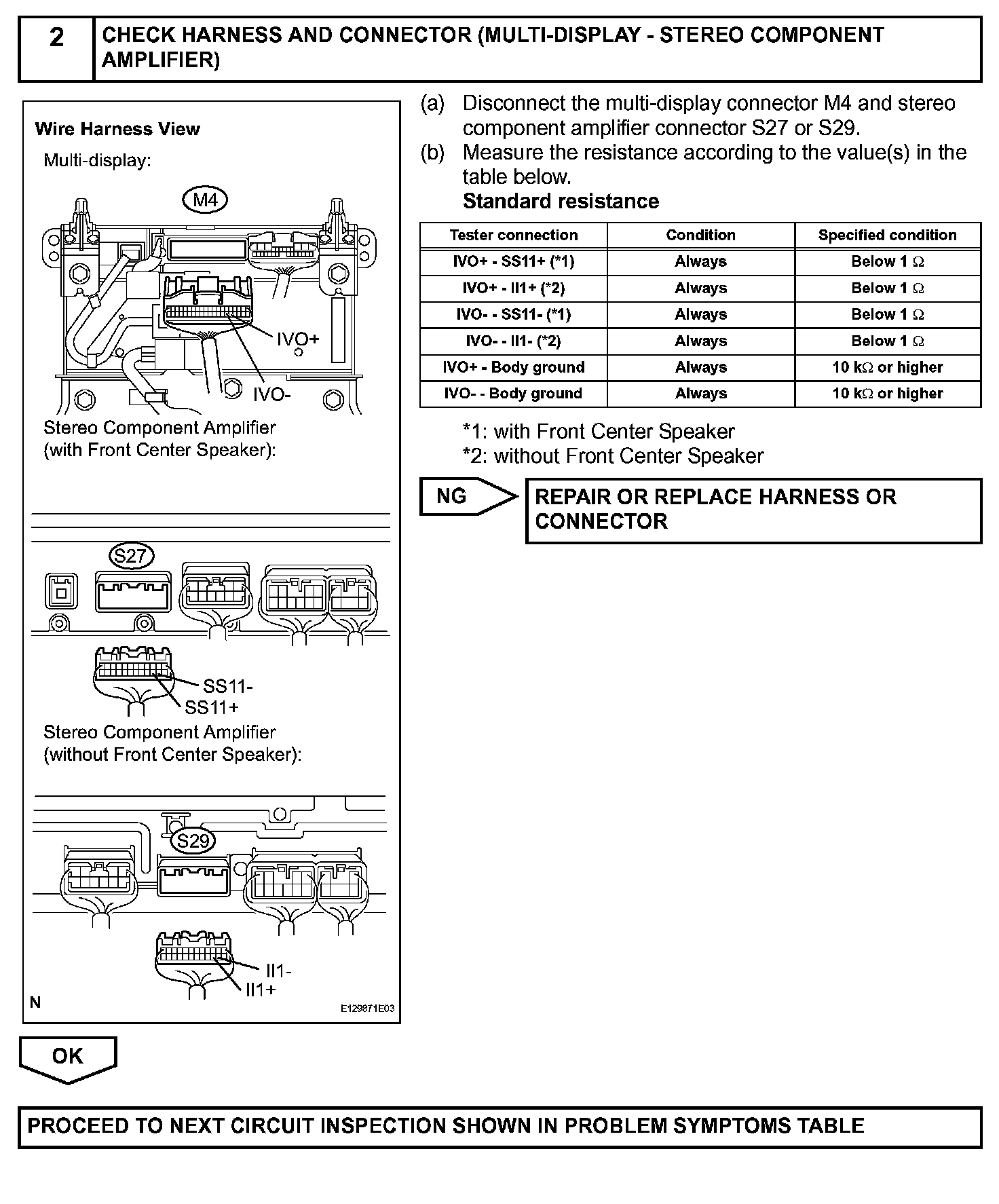

Step 2:




INSPECTION PROCEDURE
