Display Signal Circuit Between Multi-Display and Radio Receiver
Display Signal Circuit between Multi-display and Radio ReceiverDESCRIPTION
This is the DVD display signal circuit from the radio receiver to the multi-display.
This circuit is for a radio receiver with a built-in DVD changer. If the vehicle is equipped with an RSE system, the radio receiver receives DVD image signals from the RSE system and transmits these signals to the multi-display through this circuit.

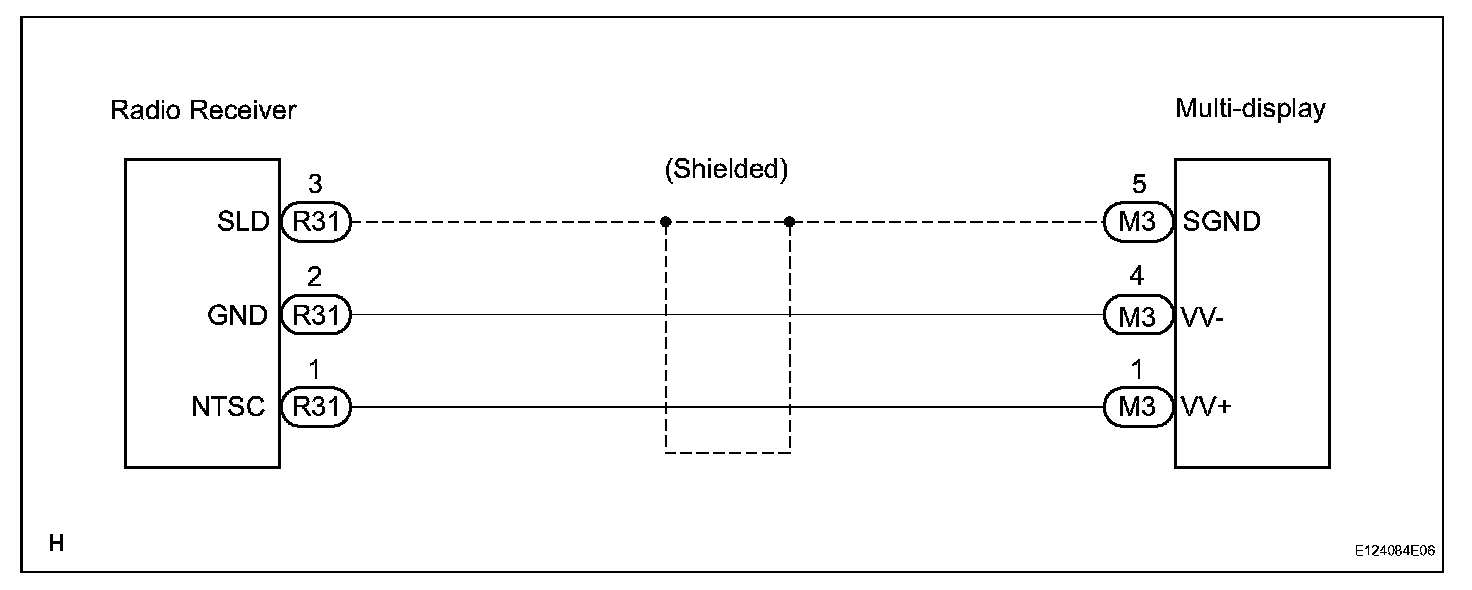

Wiring Diagram:

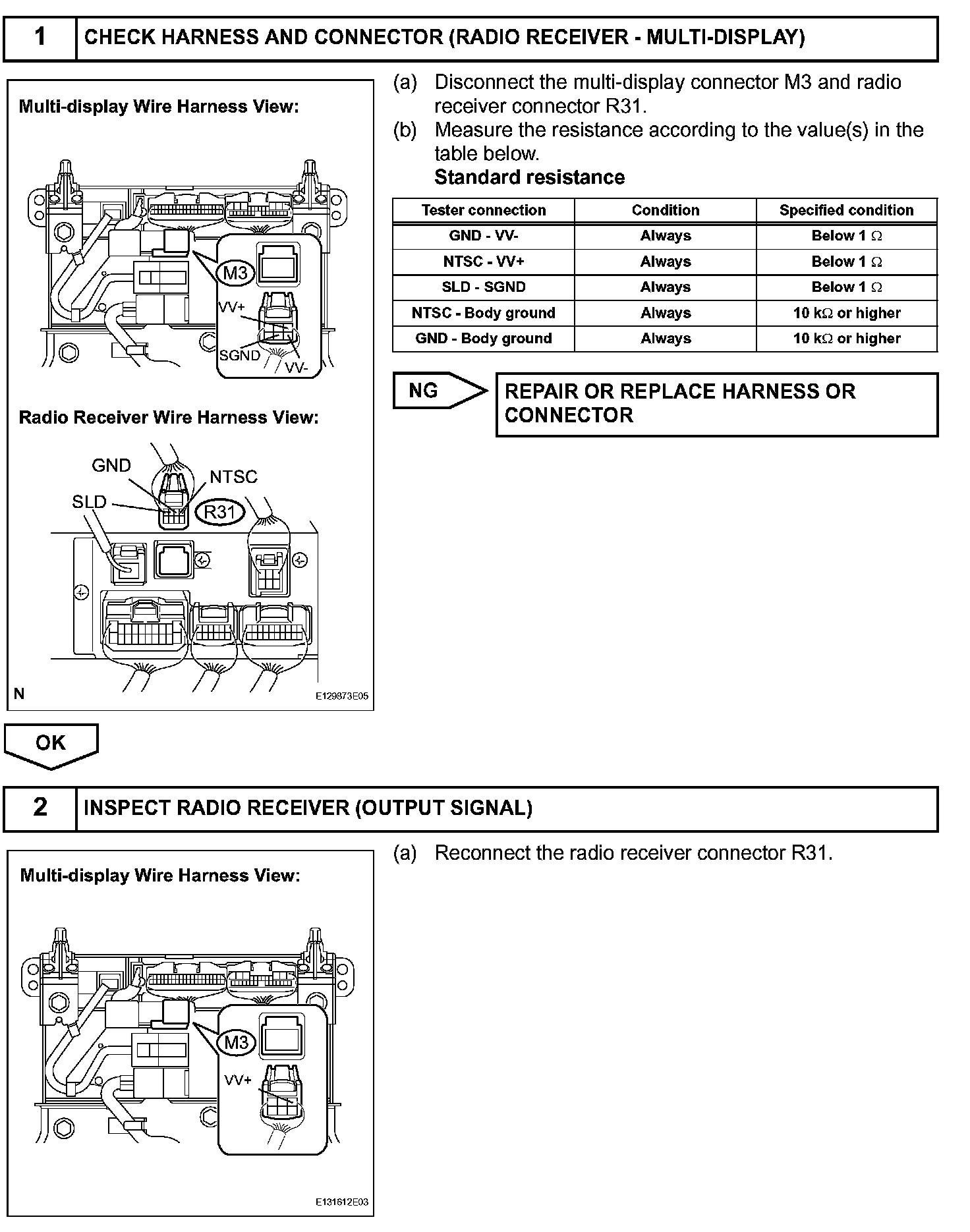

Step 1-2:

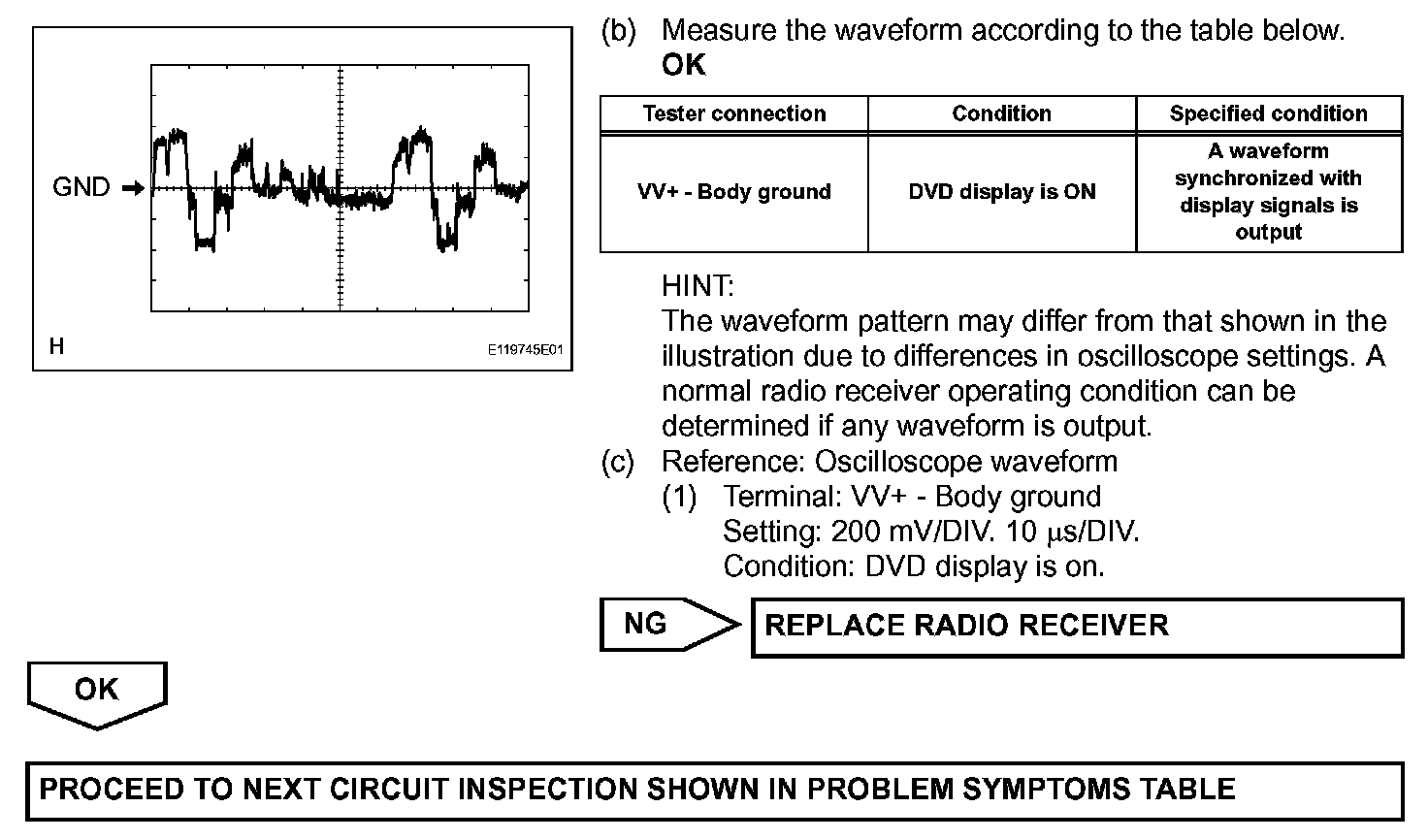

Step 2 (Continued):
INSPECTION PROCEDURE
