Alarm Module: Testing and Inspection

ECU Power Source Circuit

DESCRIPTION

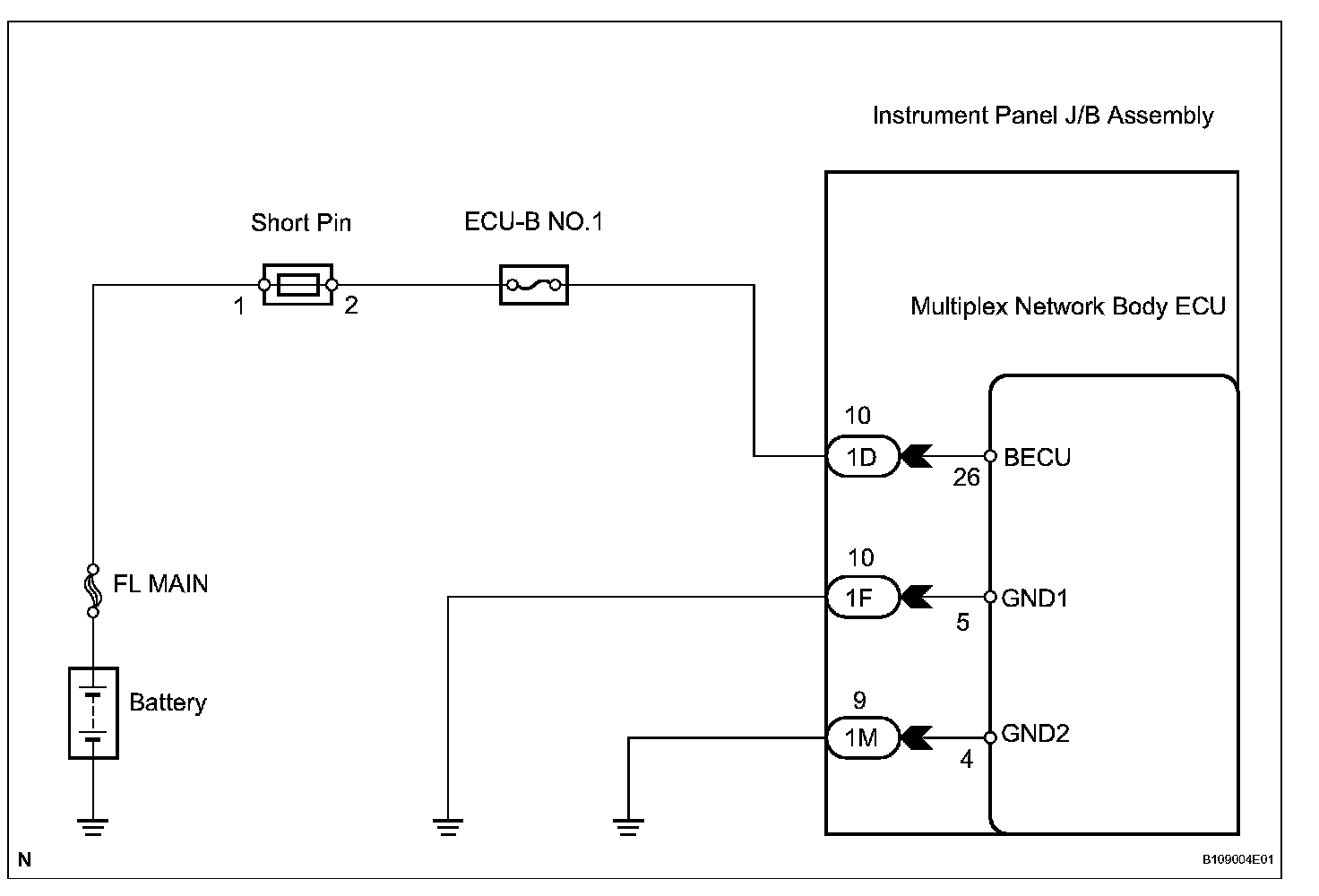

Wiring Diagram:




This circuit provides power for multiplex network body ECU operation.

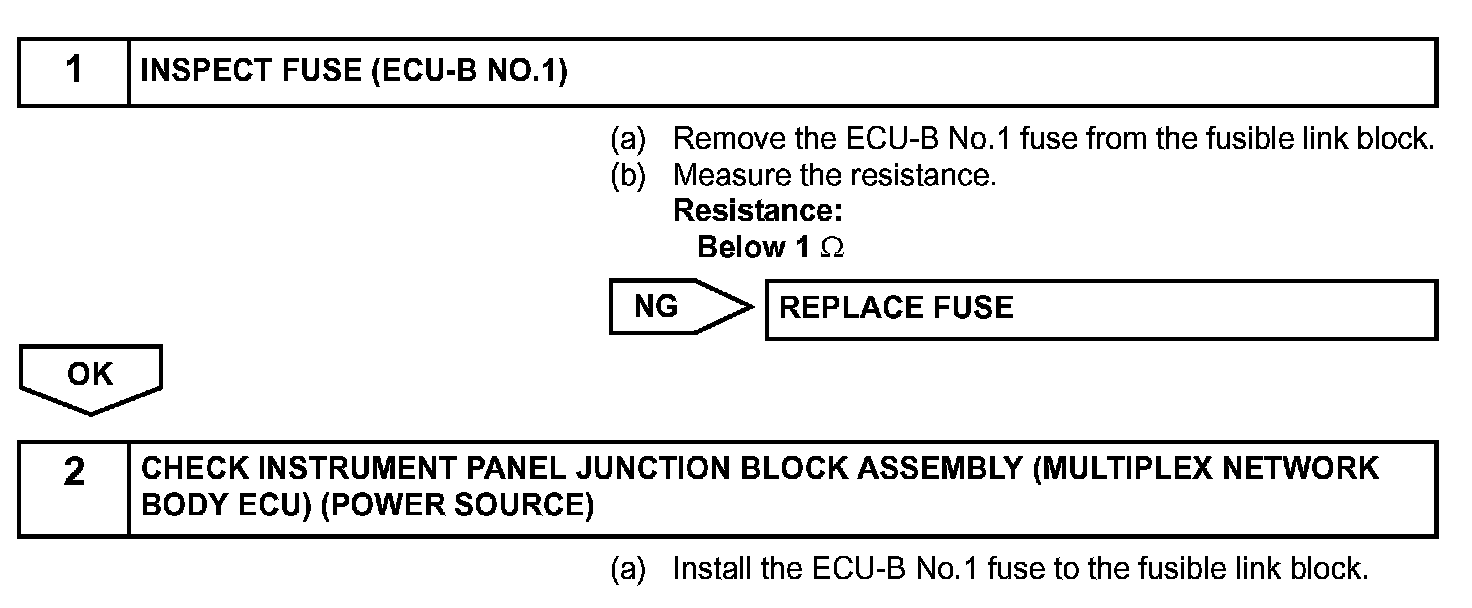

Step 1-2:

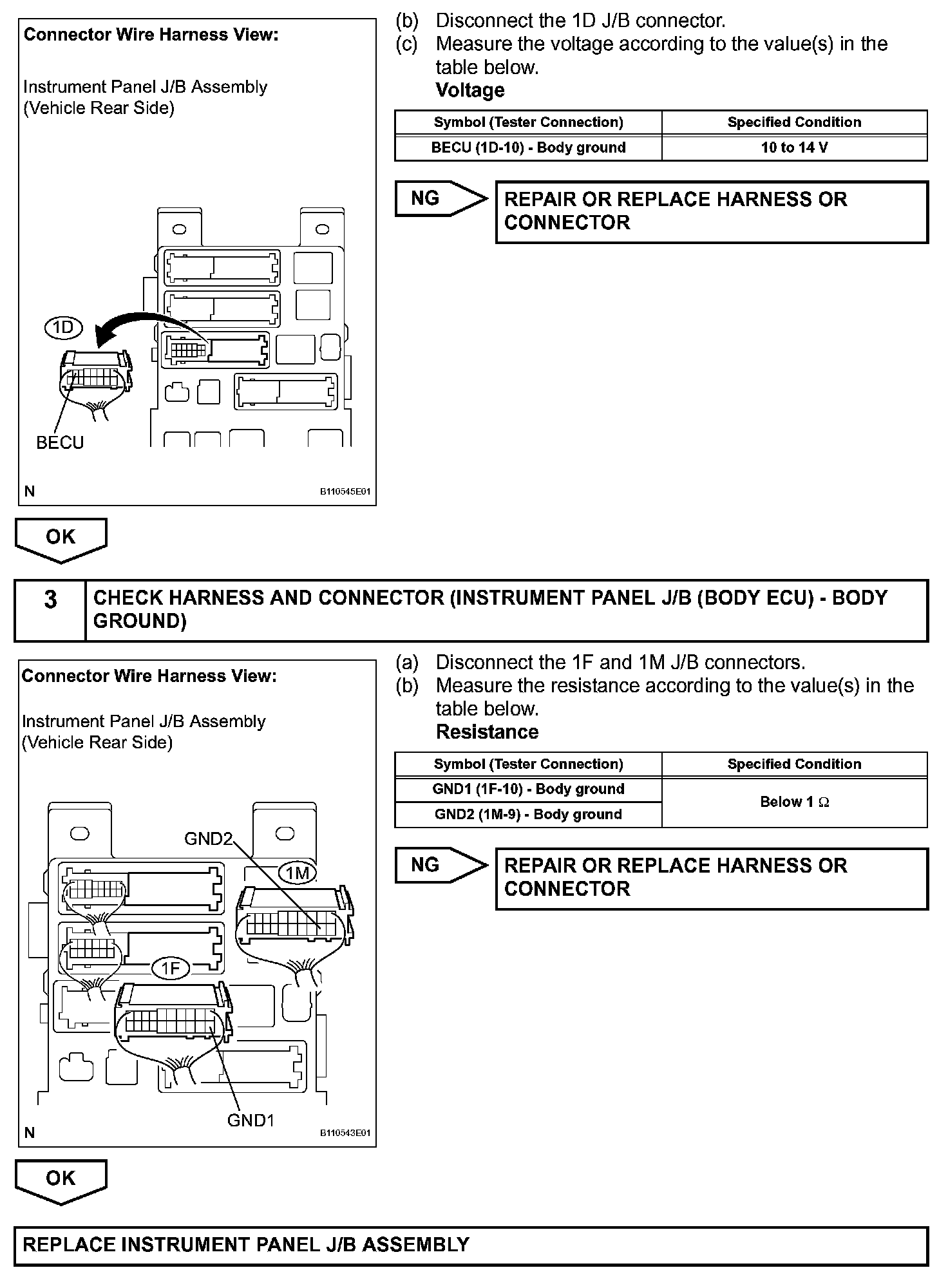

Step 2 (Continued)-3:




INSPECTION PROCEDURE
