Windshield Washer Spray Nozzle: Adjustments

ADJUSTMENT




1. ADJUST WINDSHIELD WASHER NOZZLE

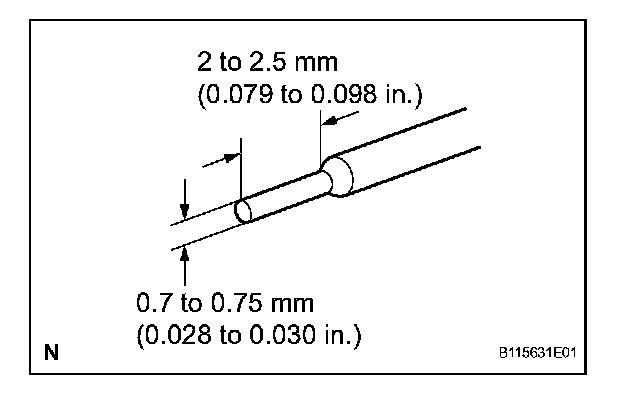

a. Using a tool like the one shown in the illustration, change the direction of the nozzle hole to adjust the point where washer fluid hits the windshield.




2. ADJUST REAR WASHER NOZZLE

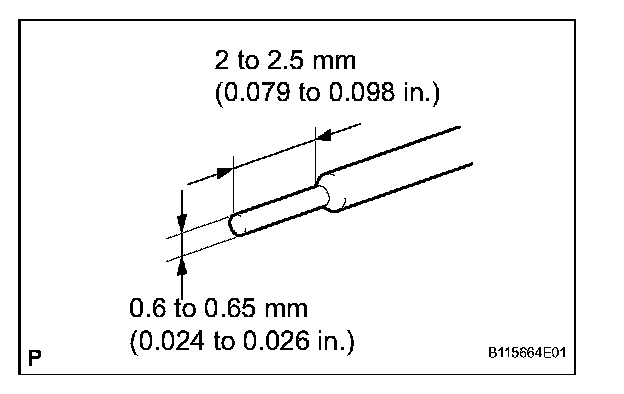

a. Using a tool like the one shown in the illustration, change the direction of the nozzle hole to adjust the point where washer fluid hits the back door glass.
