Front

ON-VEHICLE INSPECTION




1. INSPECT FRONT WASHER MOTOR ASSEMBLY

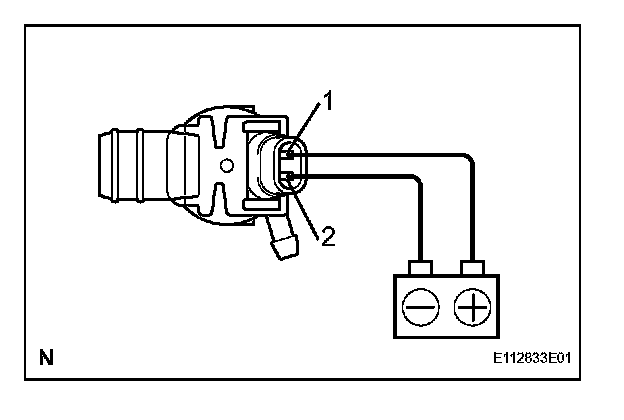

a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor operates.

If operation is not as specified, replace the motor.

NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.

If operation is not as specified, replace the motor.
