Wiper and Washer Switch Circuit
Wiper and Washer Switch CircuitDESCRIPTION
Front wiper switch circuit:
This circuit detects the state of the front wiper switch and sends it to the auto wiper ECU (wiper control ECU).

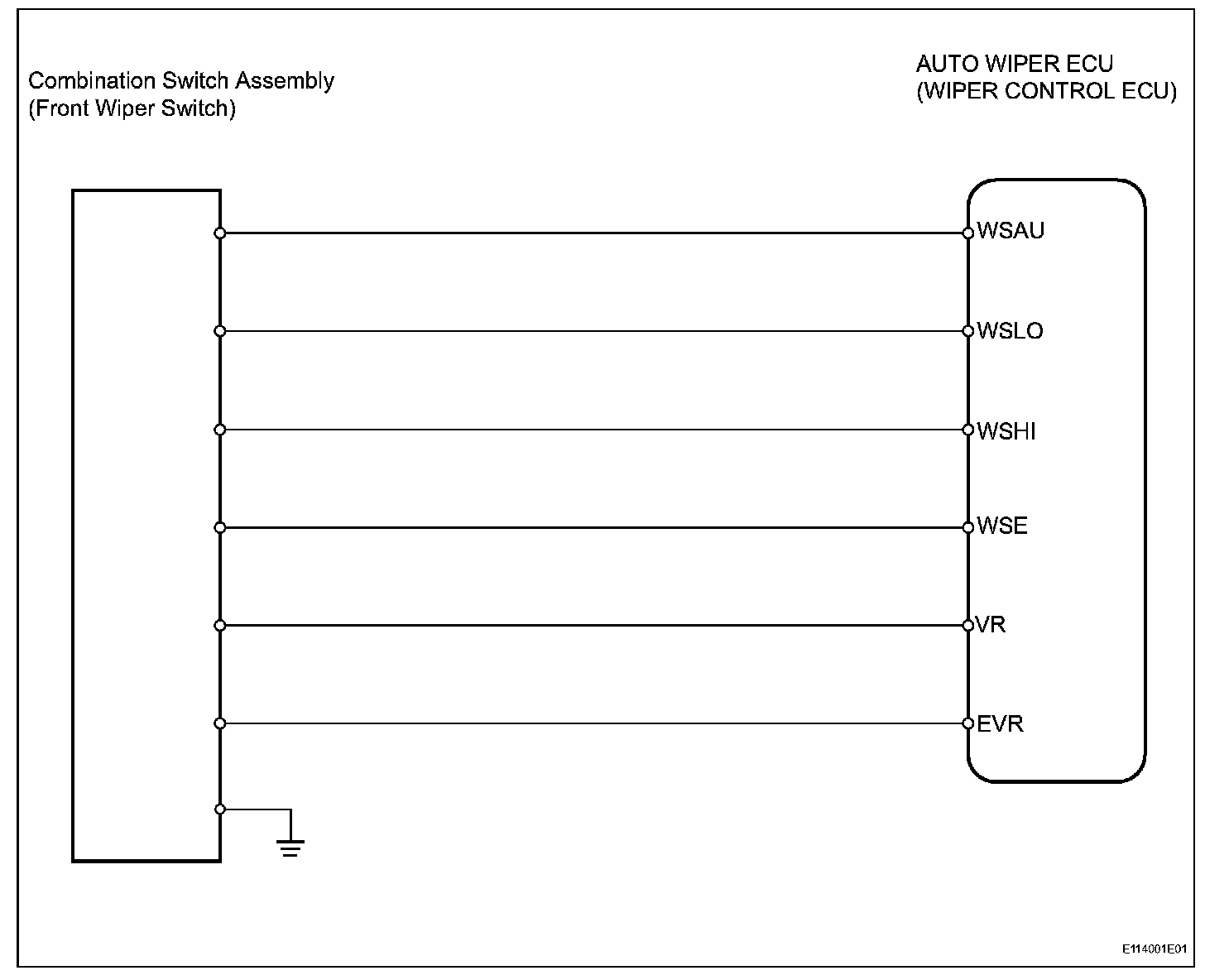

Wiring Diagram:
INSPECTION PROCEDURE

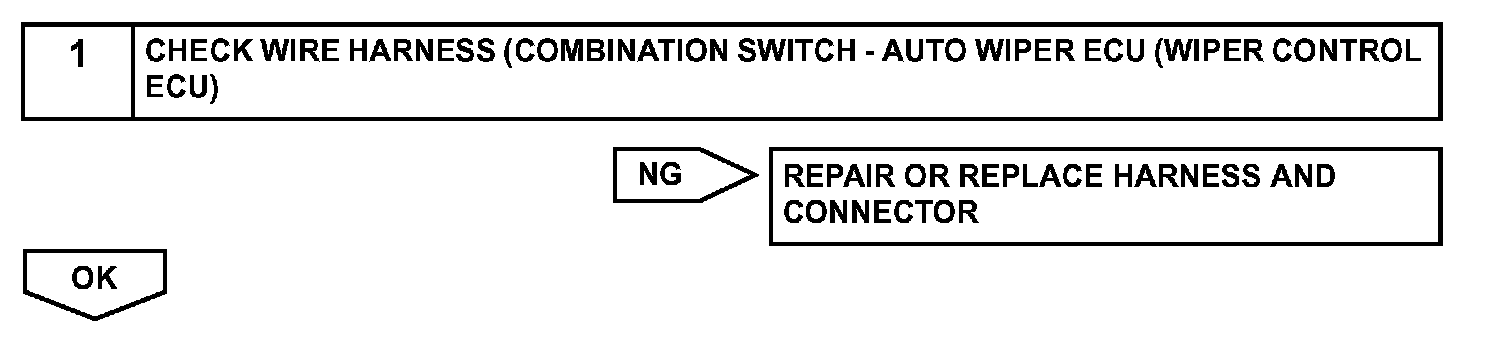

Step 1:

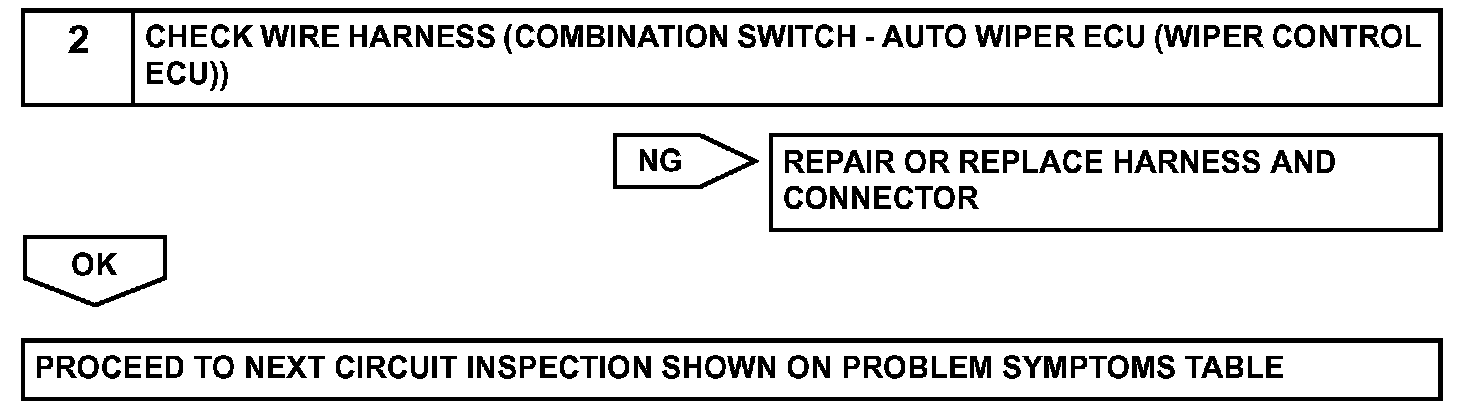

Step 2:
DESCRIPTION
Front washer switch circuit:
This circuit detects the state of the front washer switch ON or OFF signal to the auto wiper ECU (wiper control ECU).

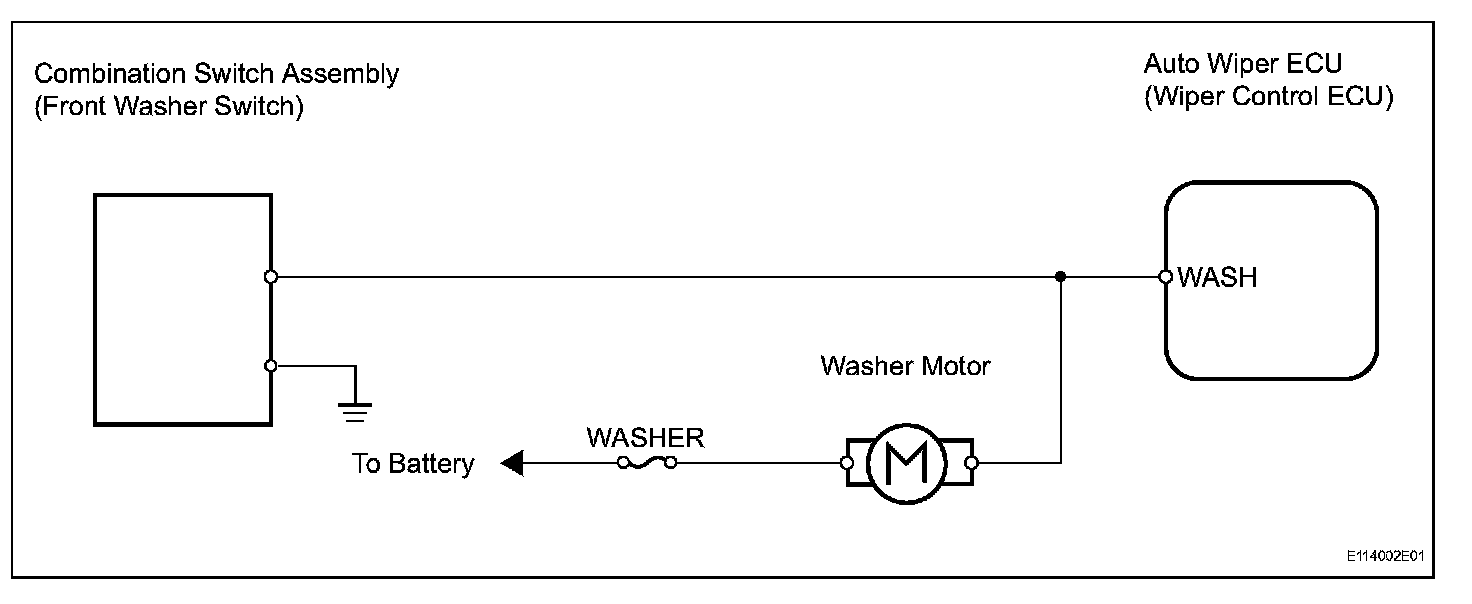

Wiring Diagram:
INSPECTION PROCEDURE

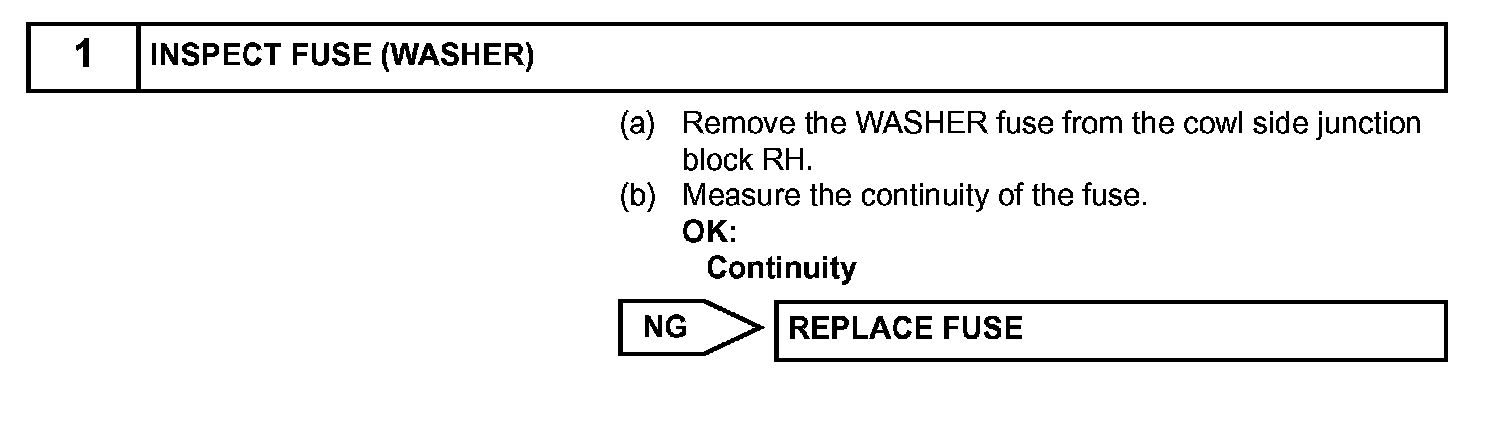

Step 1:

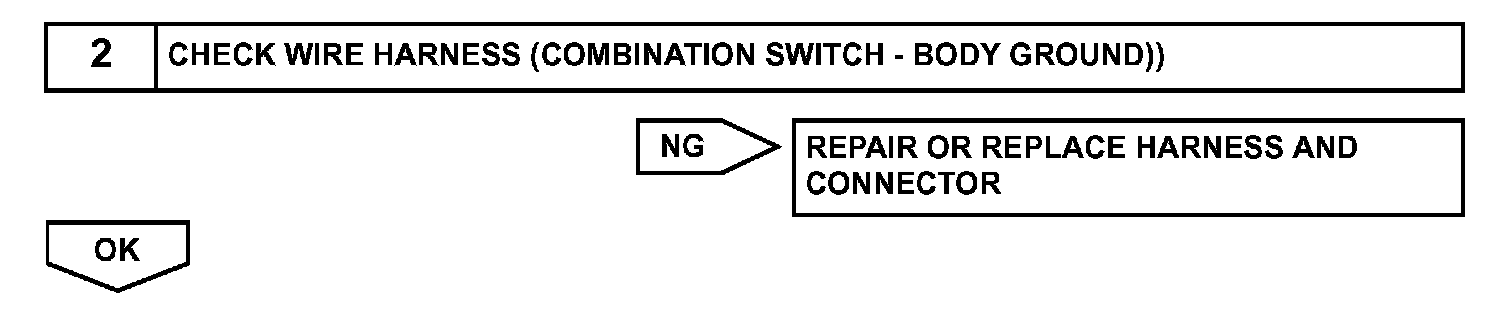

Step 2:
DESCRIPTION
Rear wiper switch circuit:
This circuit detects the state of the rear wiper and washer switch and sends it to the sub body ECU.

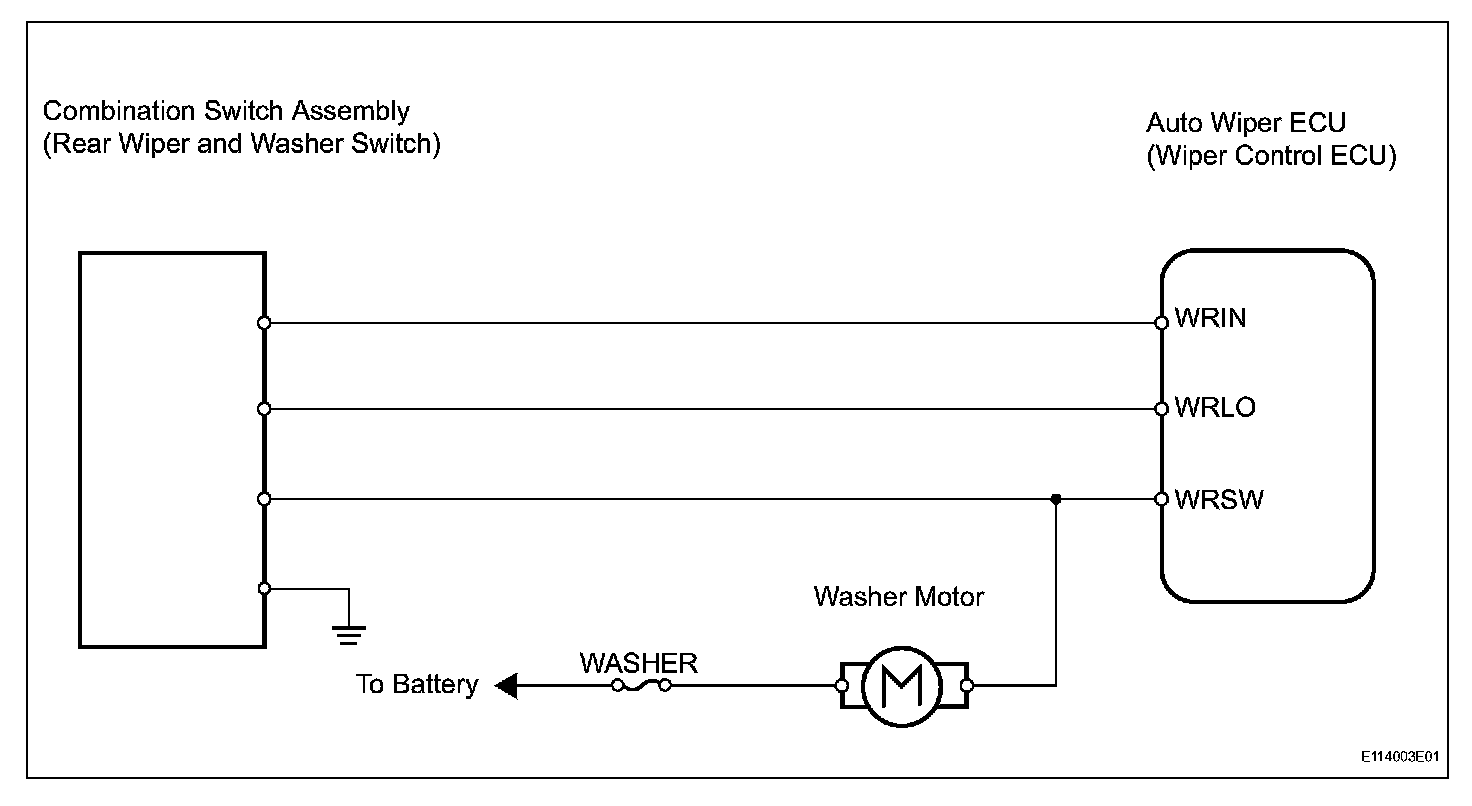

Wiring Diagram:
INSPECTION PROCEDURE
Step 1:

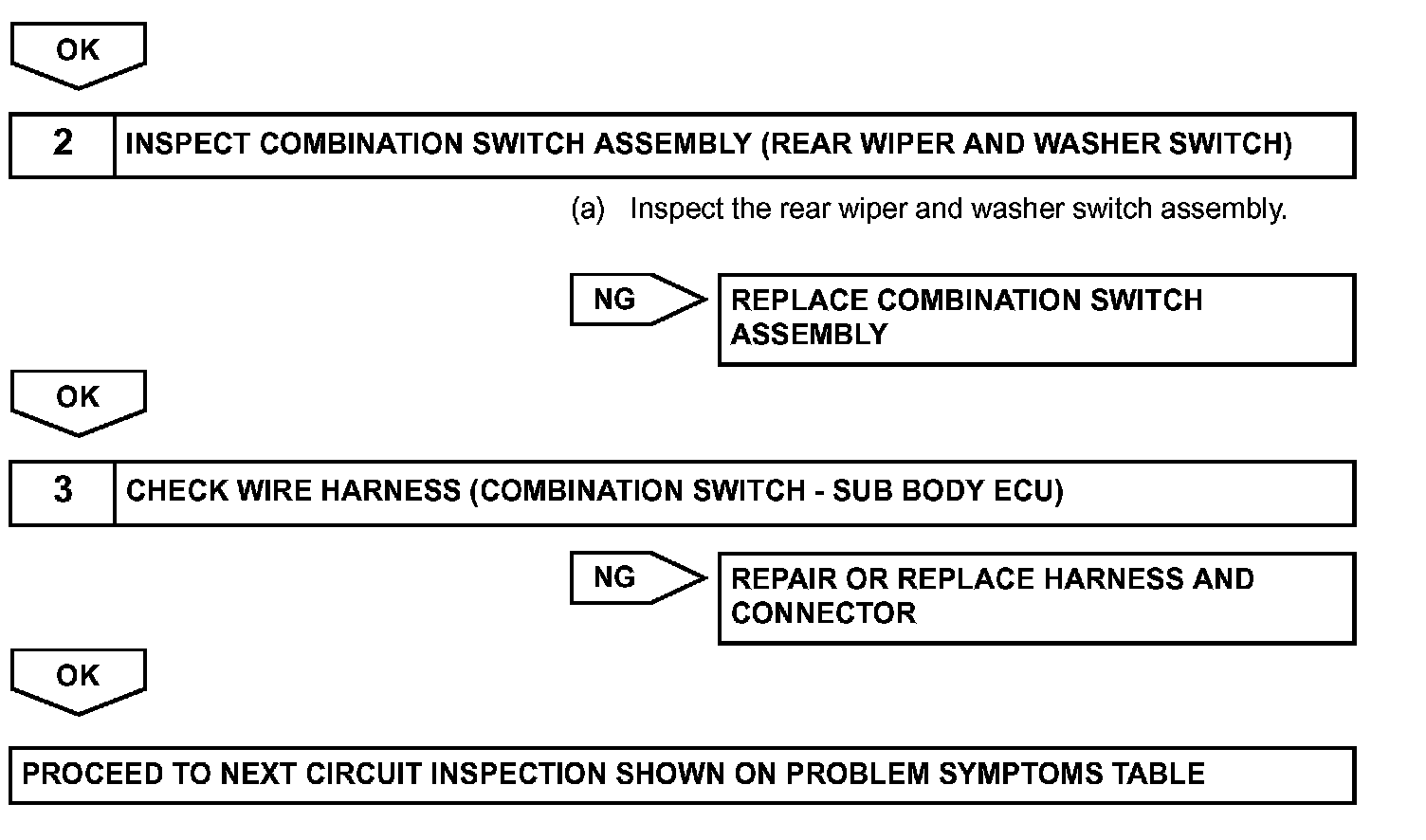

Step 1 (Continued)-3:
