Stop Light Switch Circuit

Stop Light Switch Circuit

DESCRIPTION
This circuit sends a stop light switch ON or OFF signal to the ECU.

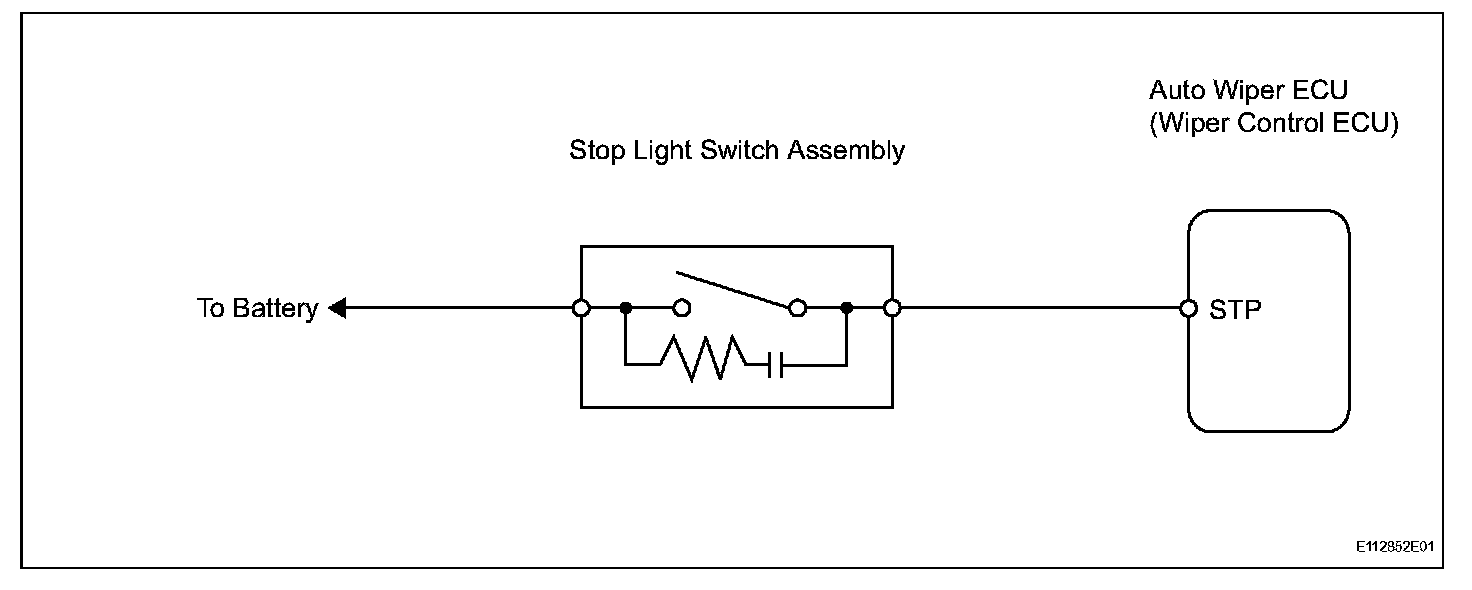

Wiring Diagram:

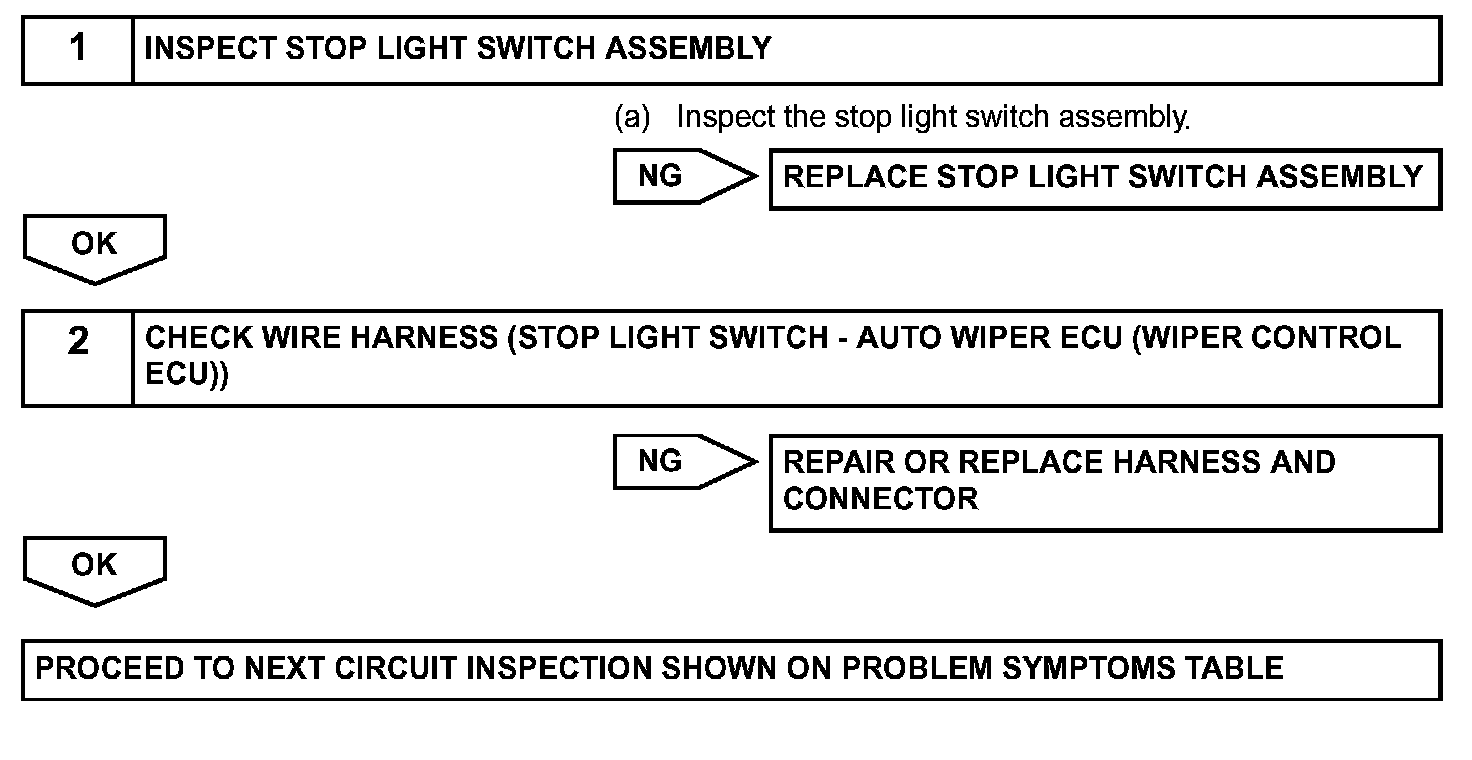

INSPECTION PROCEDURE

Step 1-2:
