Park/Neutral Position Switch Circuit

Park / Neutral Position Switch Circuit

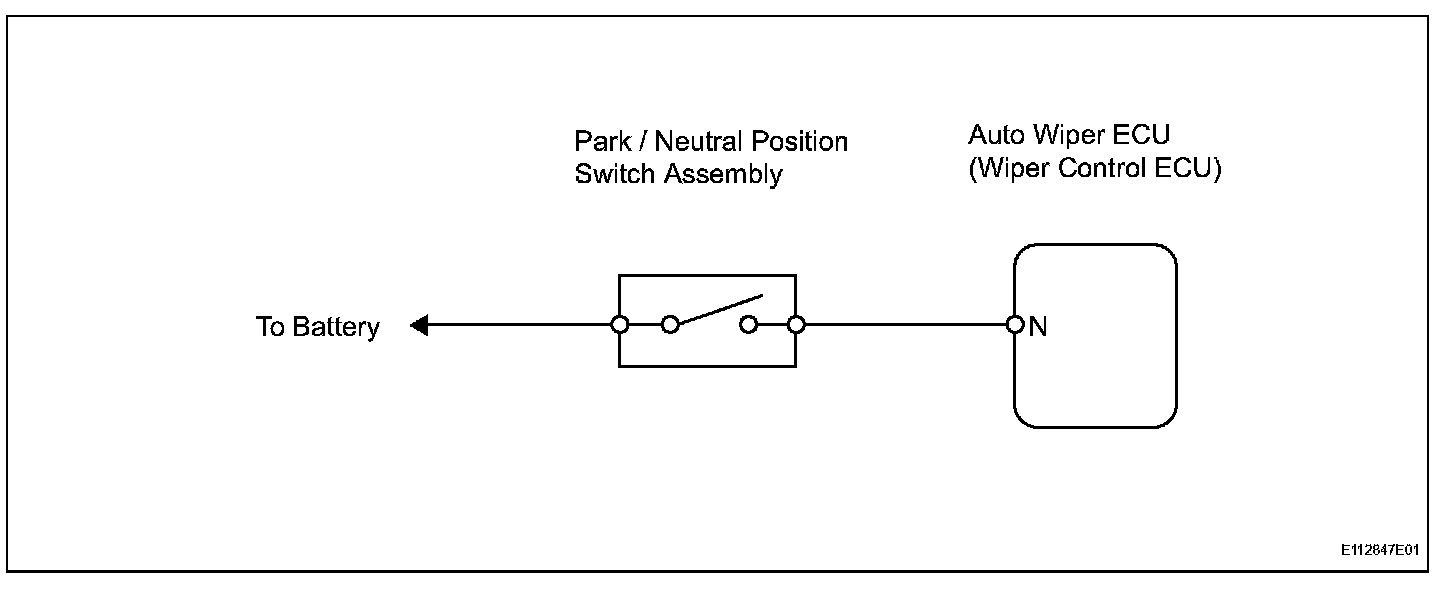

DESCRIPTION

This circuit sends a signal of the park / neutral position switch (neutral or other) to the auto wiper ECU (wiper control ECU).

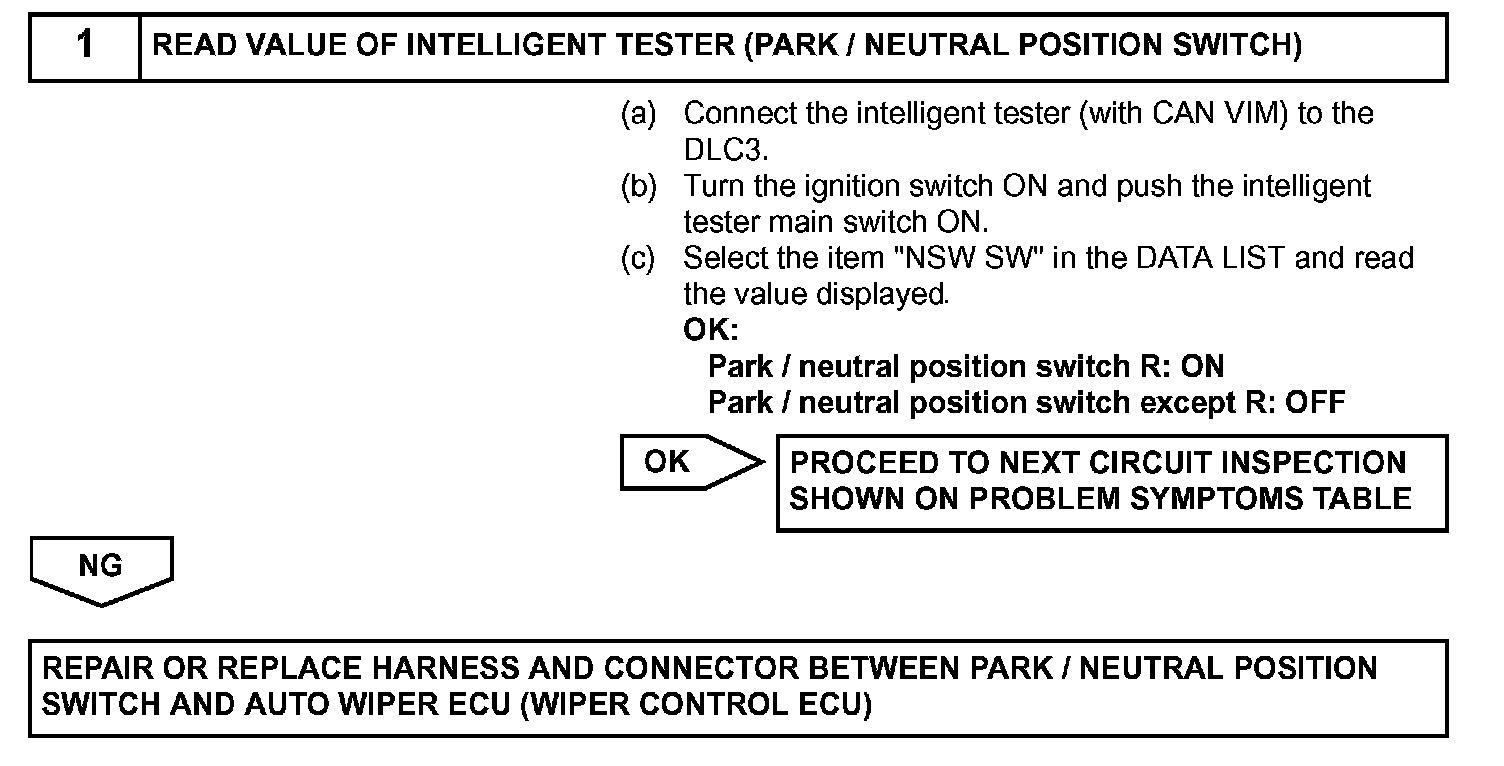

HINT: Refer to the automatic transmission for the park / neutral position switch check.
