IG Power Source Circuit
IG Power Source CircuitDESCRIPTION
This circuit is the power source for the wiper motor, the surrounding circuits, the CPU circuits and the input signal pull-up.

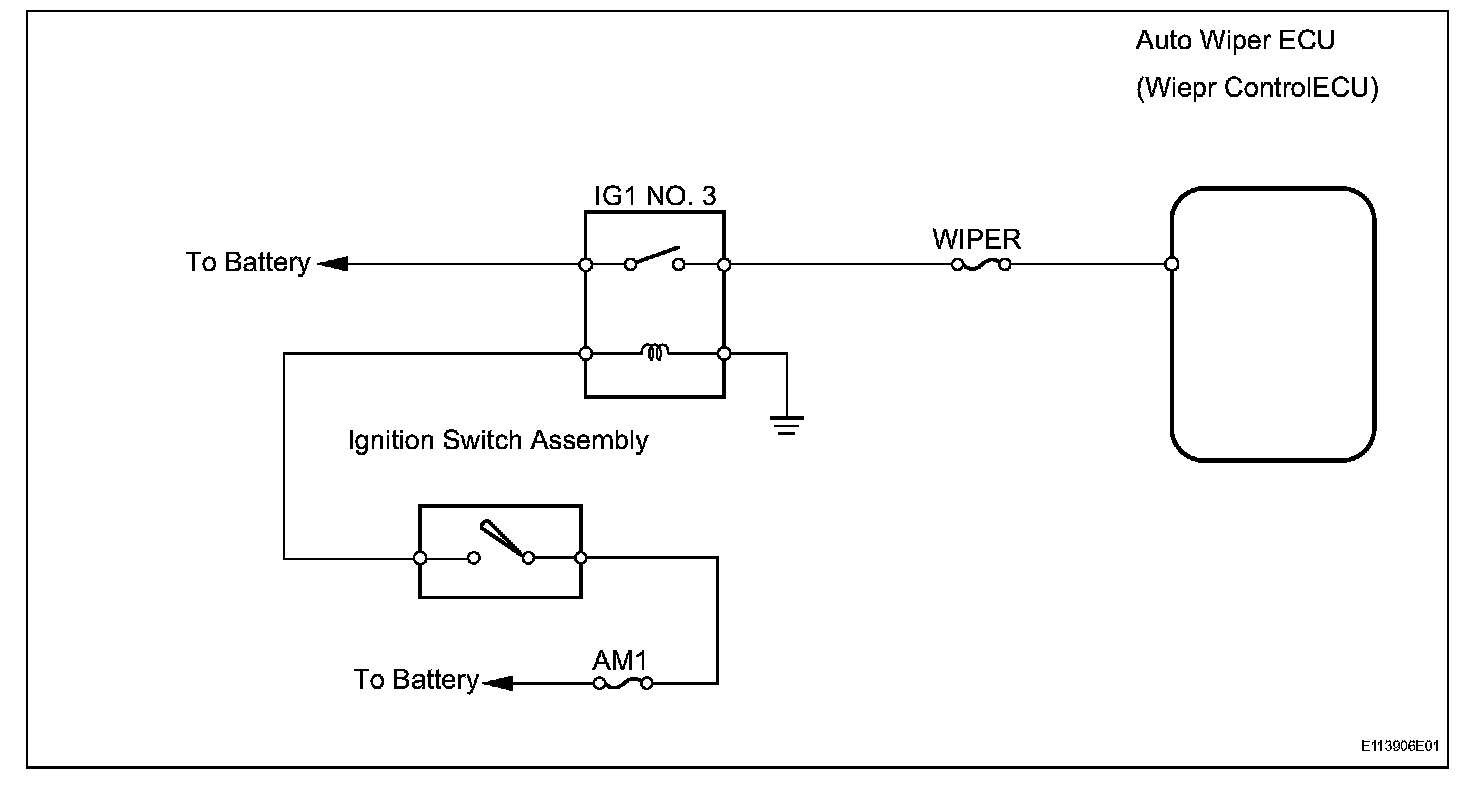

Wiring Diagram:
INSPECTION PROCEDURE

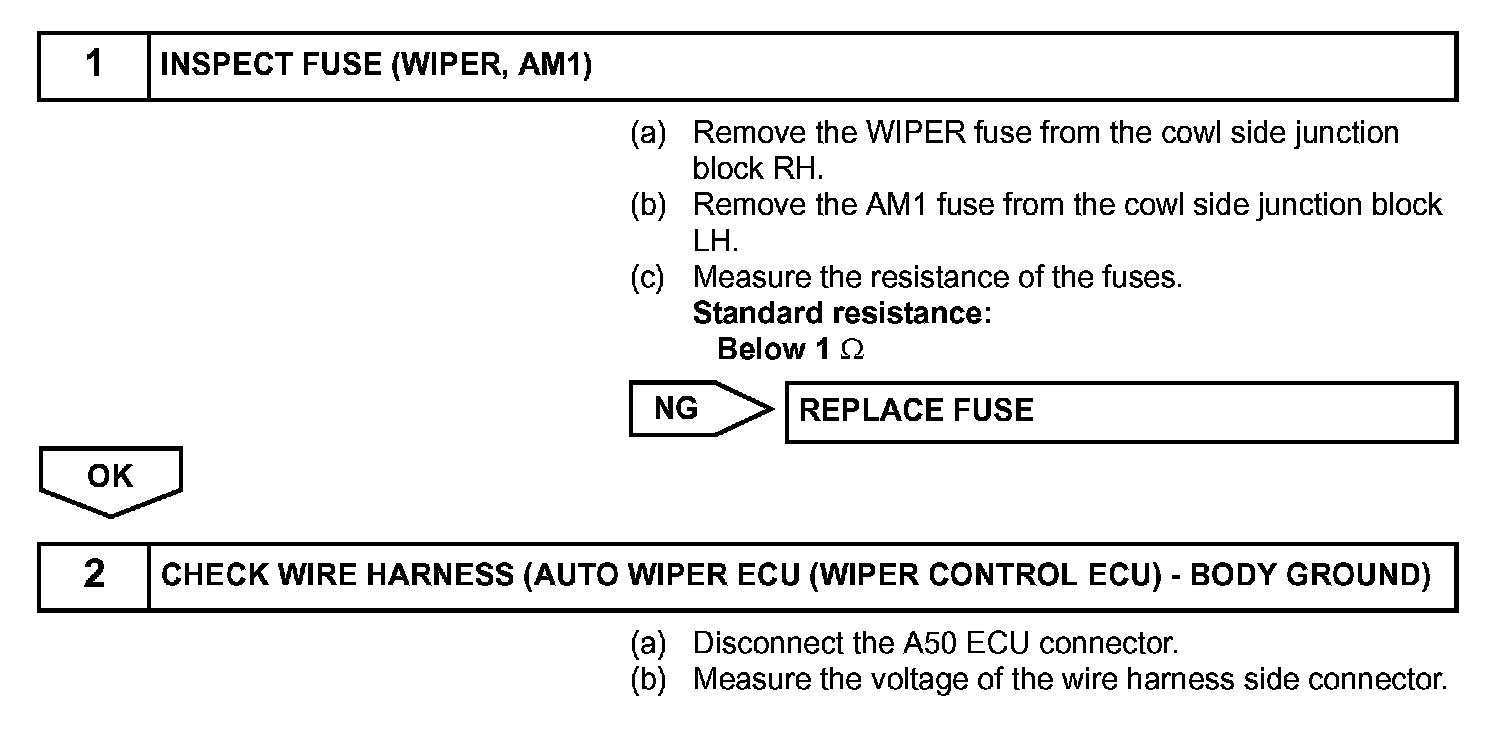

Step 1-2:

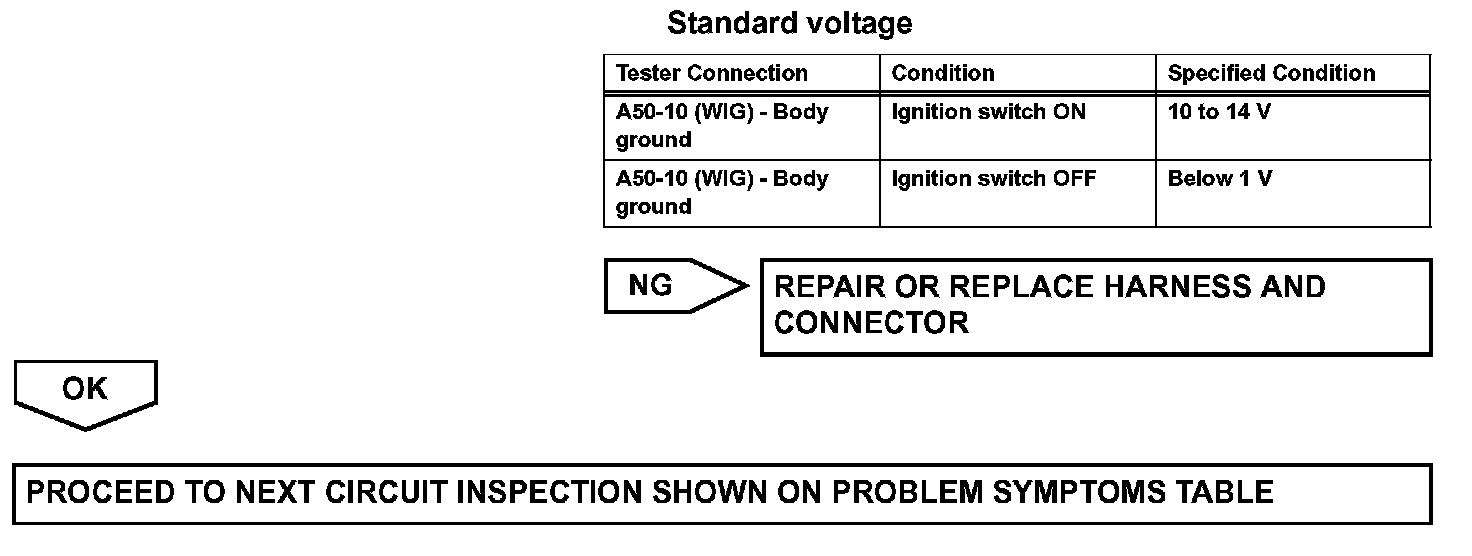

Step 2 (continued):
