Front Wiper Motor Circuit

Front Wiper Motor Circuit

DESCRIPTION
The auto wiper ECU (wiper control ECU) controls the front wiper motor.

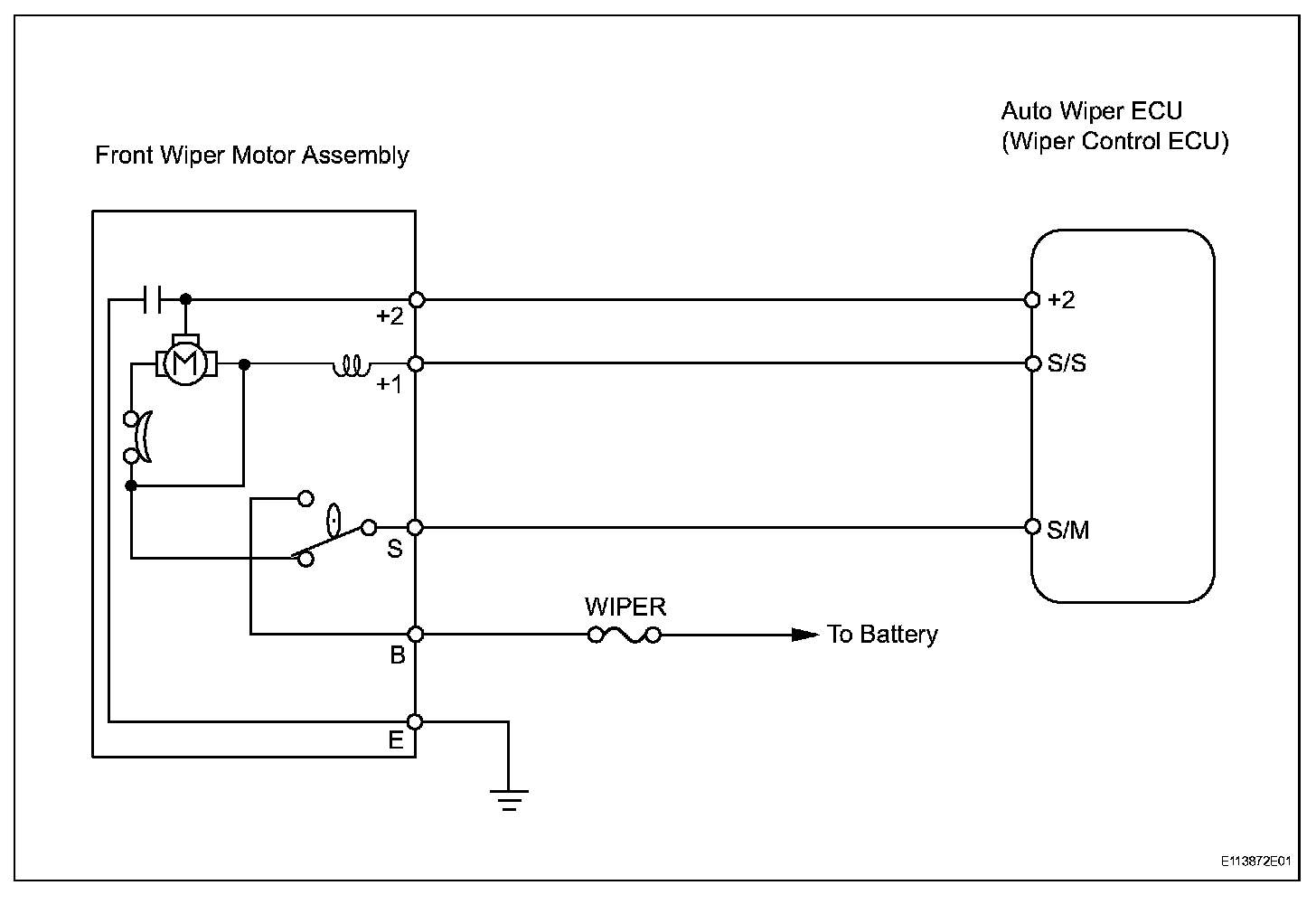

Wiring Diagram:





INSPECTION PROCEDURE

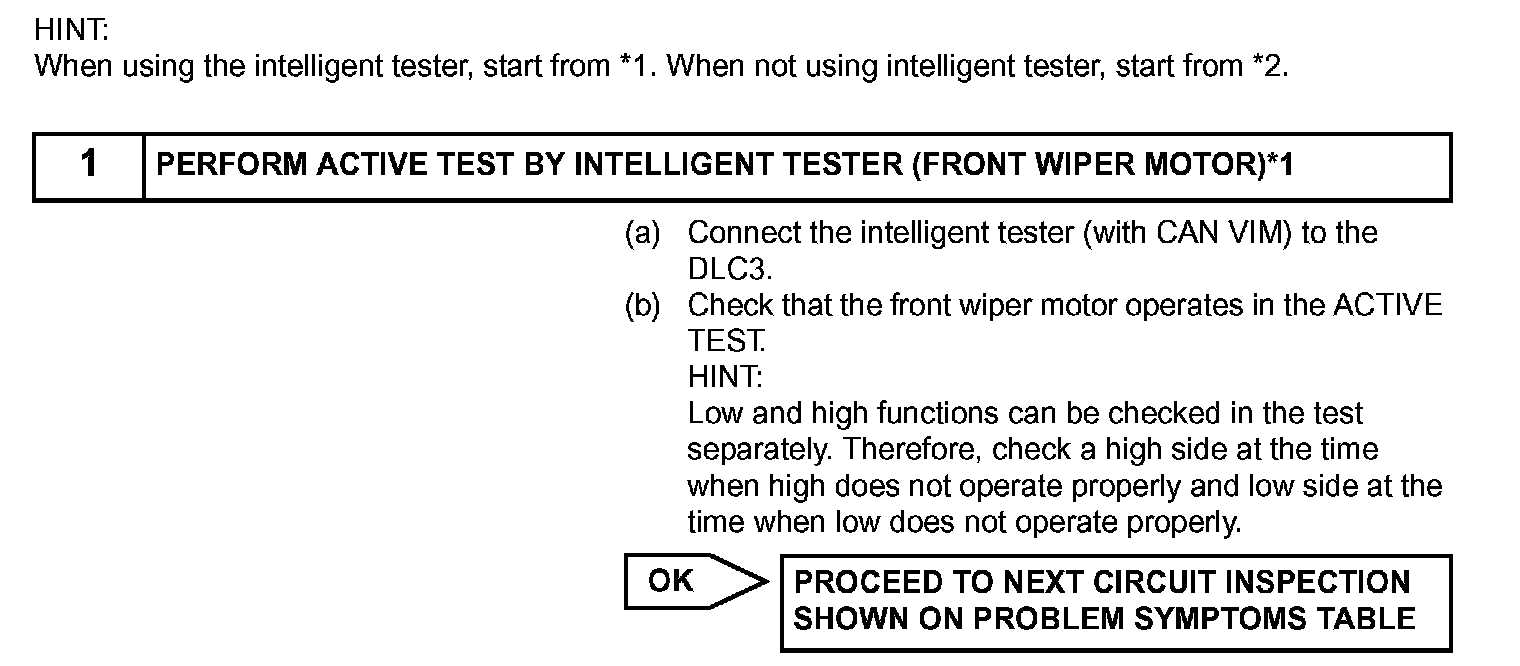

Step 1:




Step 1 (Continued)-4:
