Rear Power Window Motor LH Circuit

Rear Power Window Motor LH Circuit

DESCRIPTION

The rear power window regulator switch assembly LH receives the power window switch signal from the switch to operate the rear power window regulator motor assembly LH.

WIRING DIAGRAM

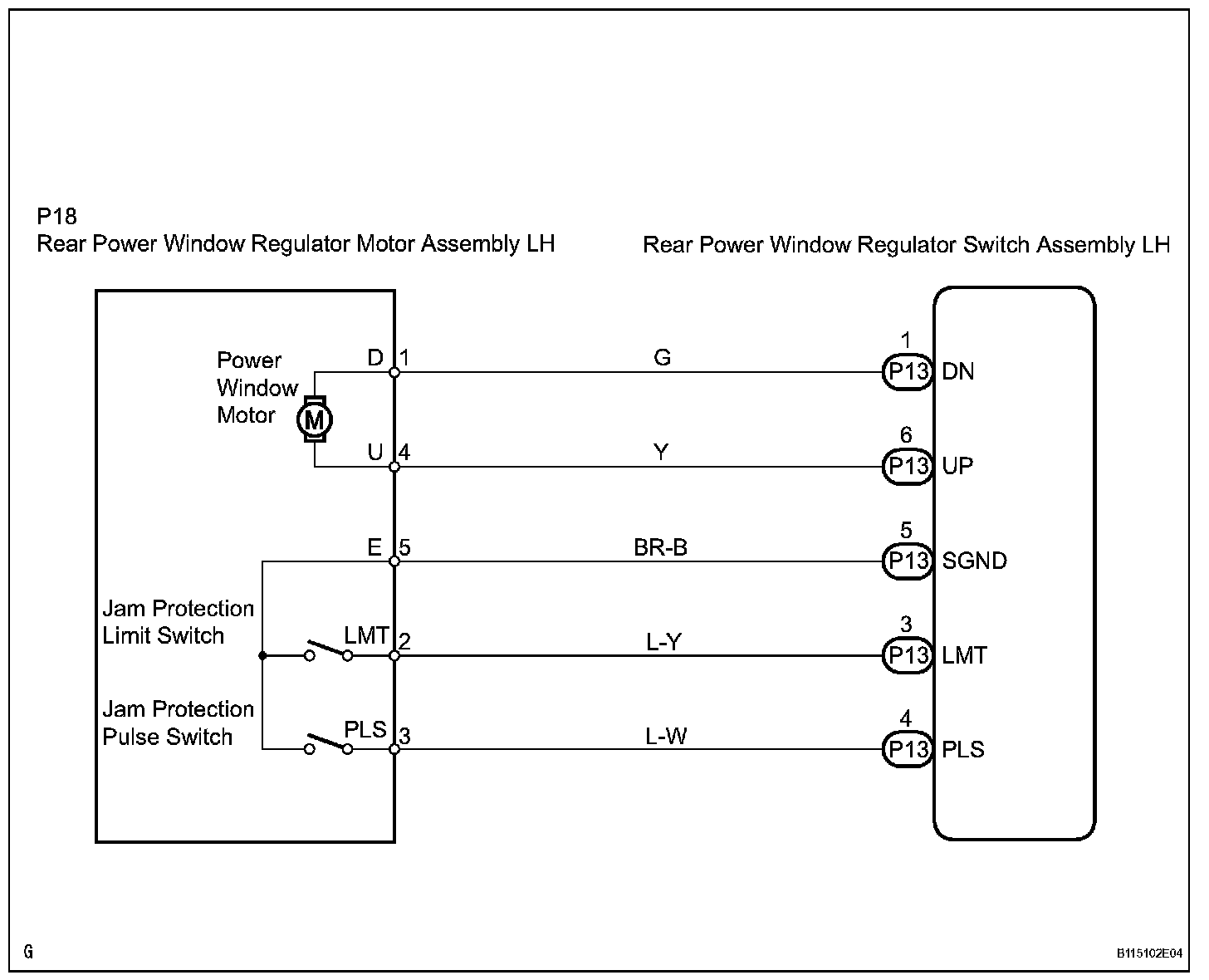

Wiring Diagram:





INSPECTION PROCEDURE

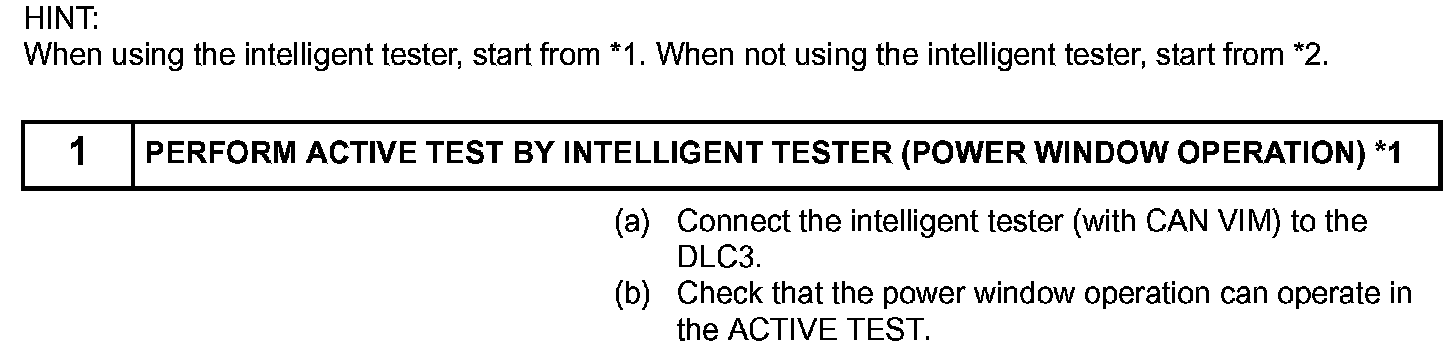

Step 1:




Step 1(Continued) - 3:
