Rear Jam Protection Limit / Pulse Switch LH Circuit

Rear Jam Protection Limit / Pulse Switch LH Circuit

DESCRIPTION

The rear power window regulator switch assembly LH receives the power window switch signal from the switch to operate the rear power window regulator motor assembly LH.

WIRING DIAGRAM

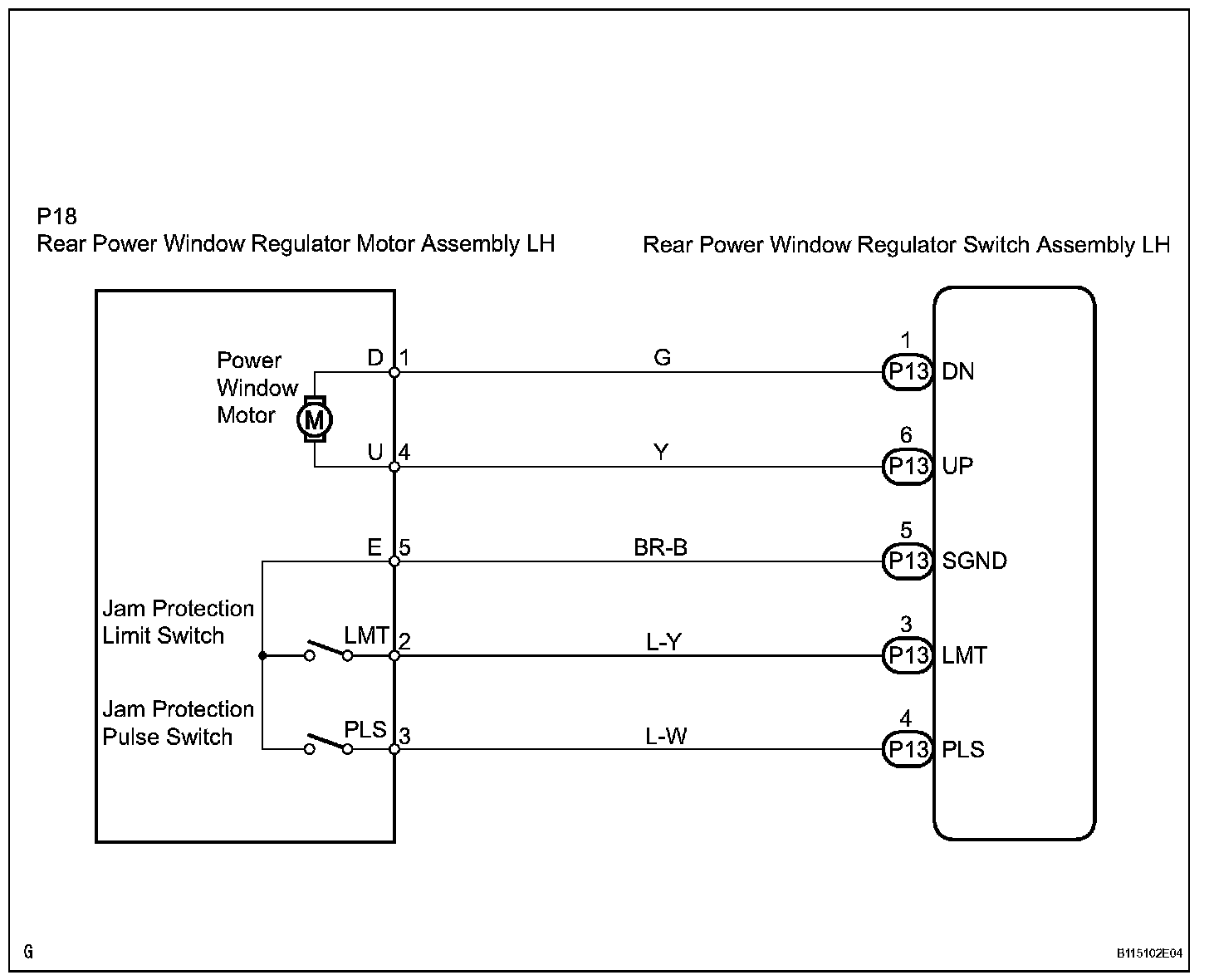

Wiring Diagram:





INSPECTION PROCEDURE

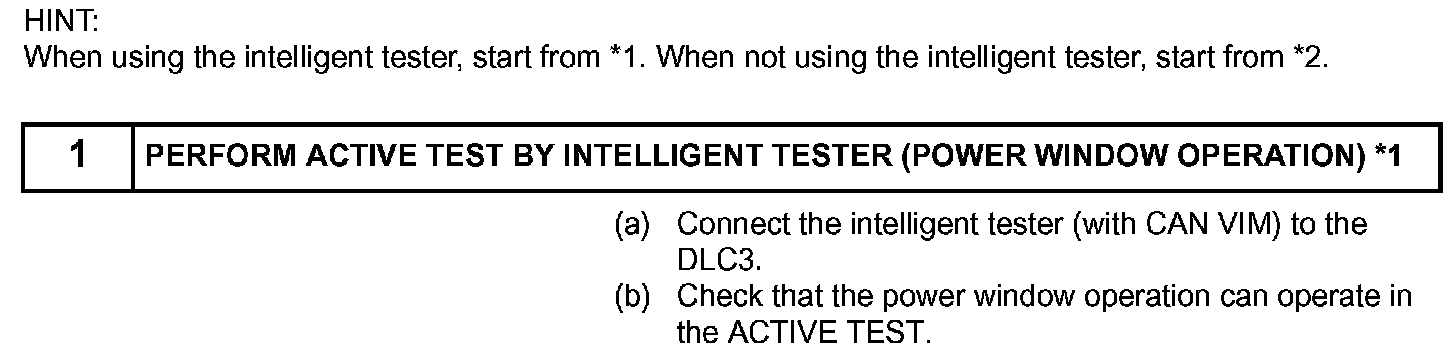

Step 1:

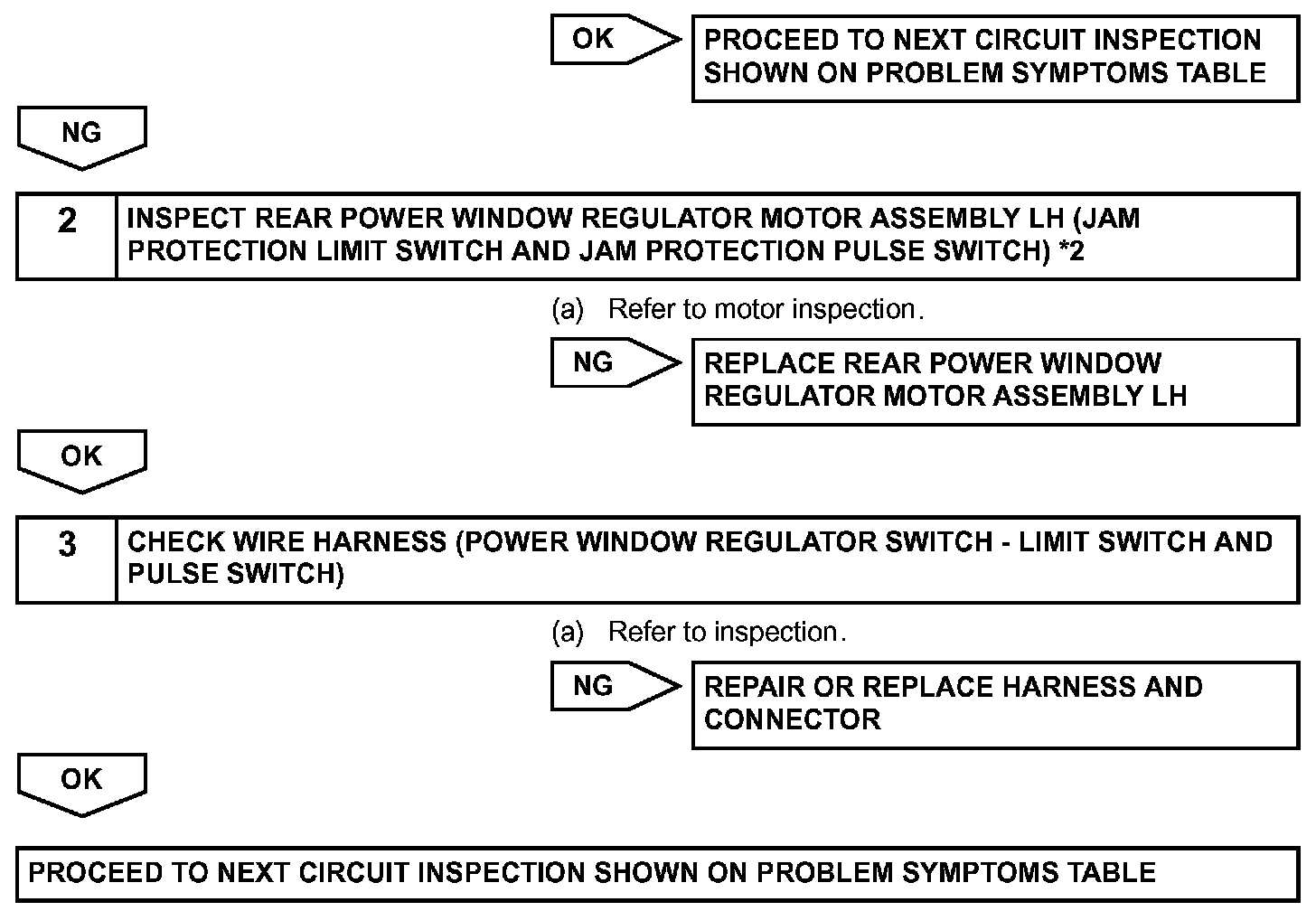

Step 1(Continued) - 3:
