Power Source Circuit

Power Source Circuit

DESCRIPTION
This circuit supplies power to operate the power window master switch assembly.

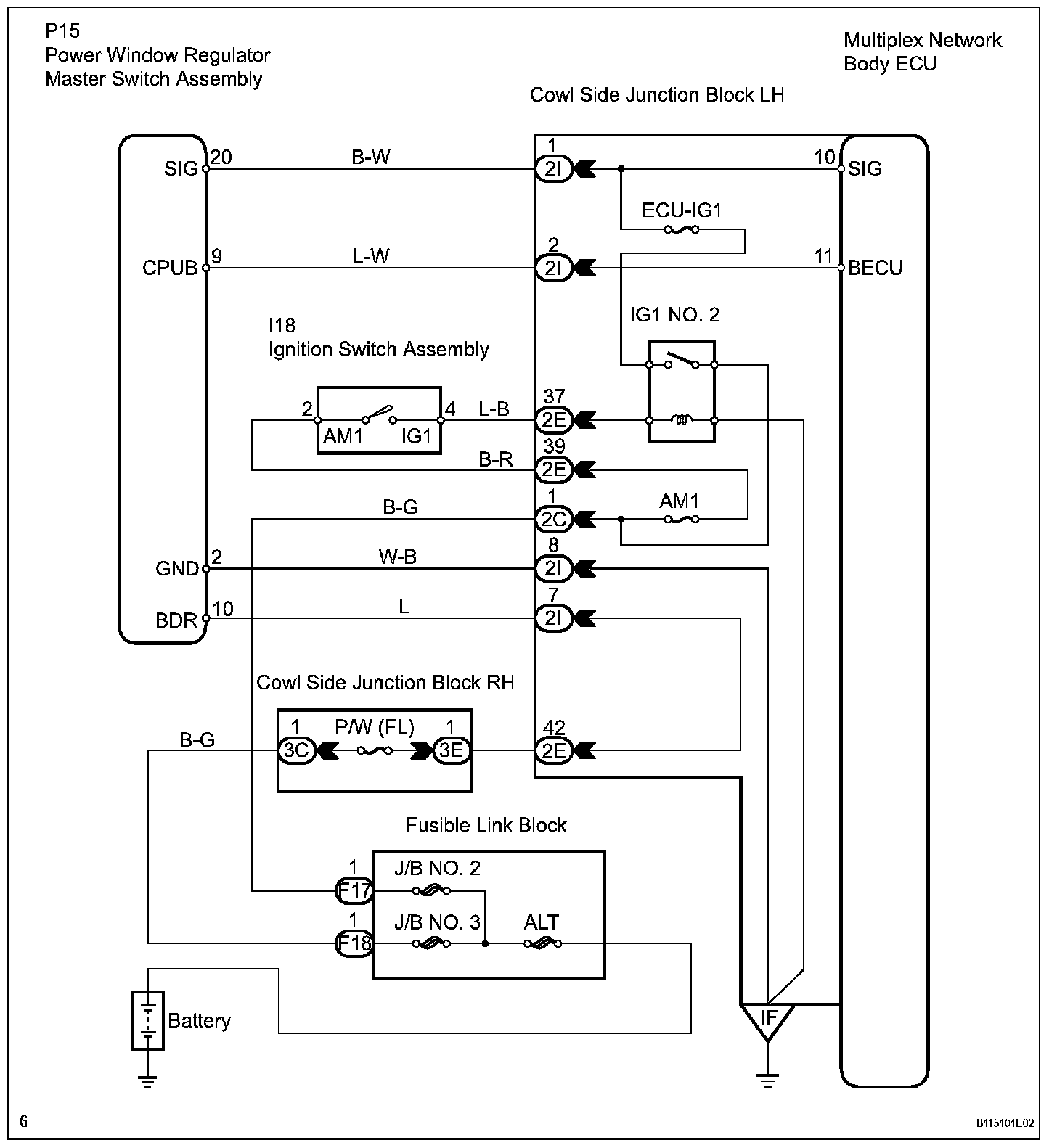

WIRING DIAGRAM

Wiring Diagram:





INSPECTION PROCEDURE

Step 1 - 3:
