Transfer Indicator Switch

TRANSFER INDICATOR SWITCH
INSPECTION

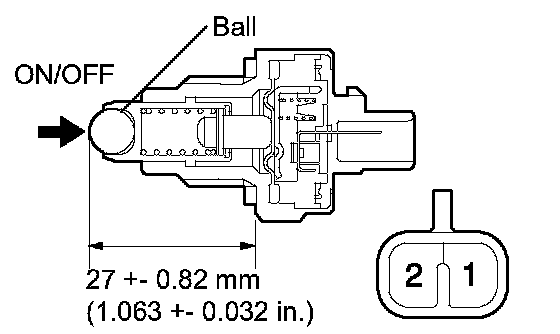

1. INSPECT TRANSFER INDICATOR SWITCH
a. Check that continuity exists between terminals 1 and 2 when pushing the ball at the tip of the switch.
