Front Extension Housing

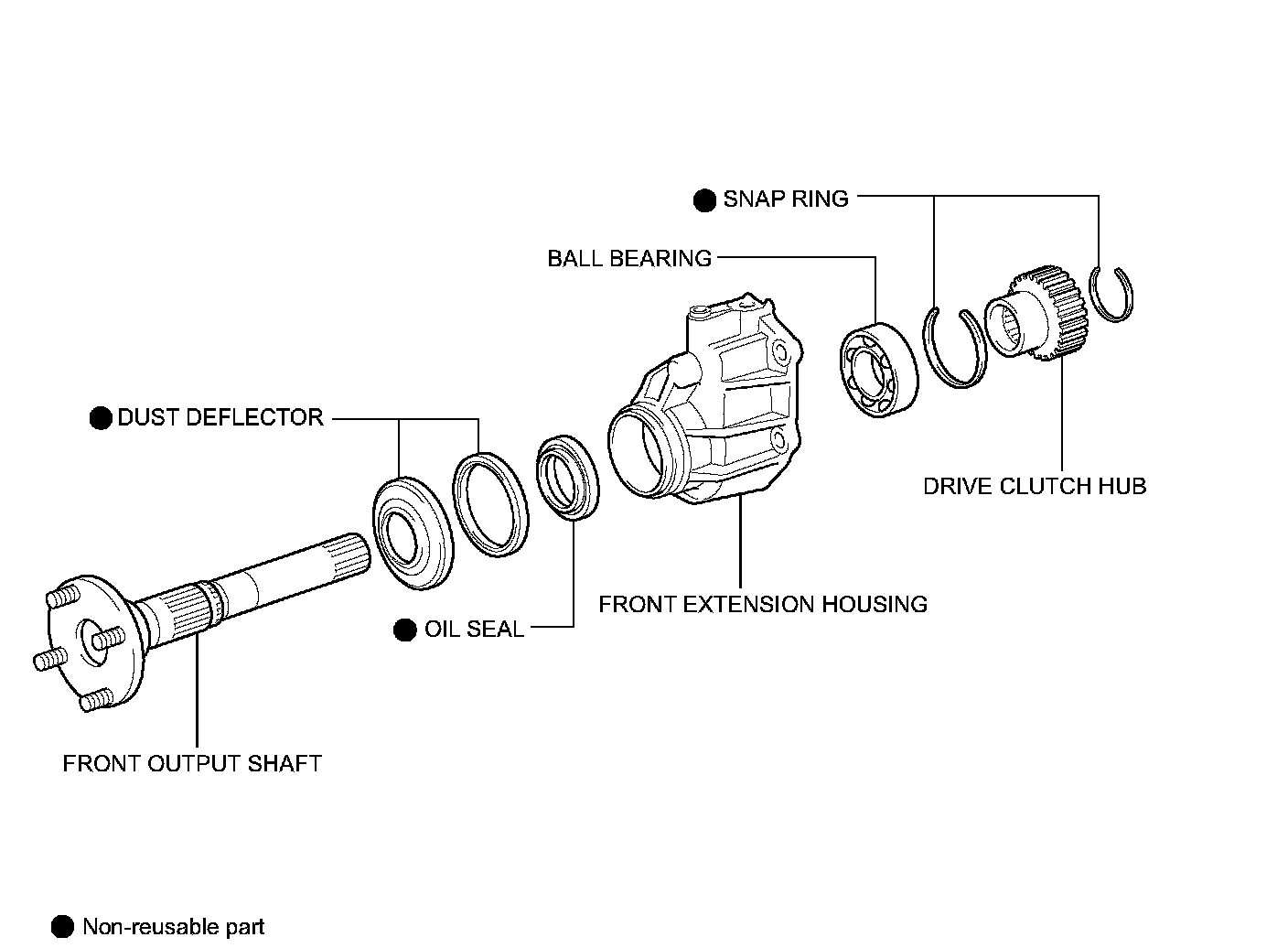

FRONT EXTENSION HOUSINGComponents:
DISASSEMBLY
1. REMOVE DRIVE CLUTCH HUB

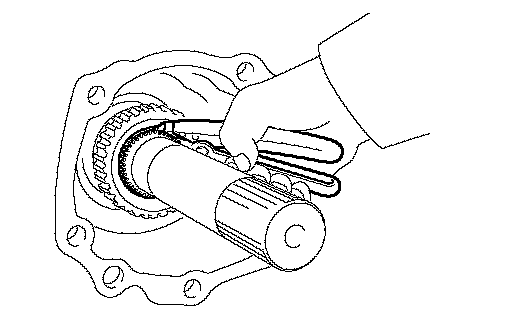

a. Using a snap ring expander, remove the snap ring.

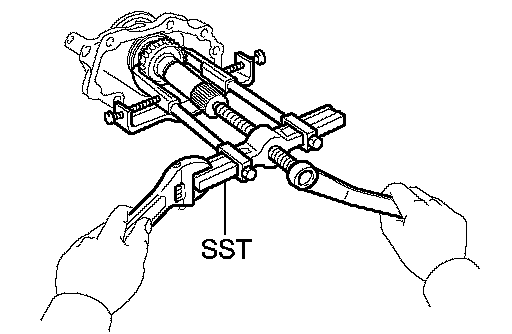

b. Using SST, remove the drive clutch hub.
SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04021, 09957-04010, 09958-04011)
2. REMOVE FRONT OUTPUT SHAFT

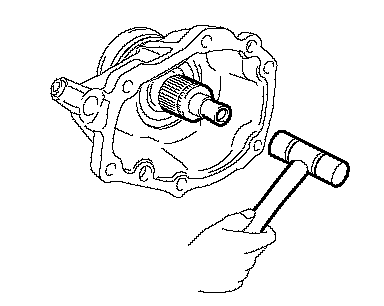

a. Using a plastic-faced hammer, tap out the output shaft.
3. REMOVE DUST DEFLECTOR

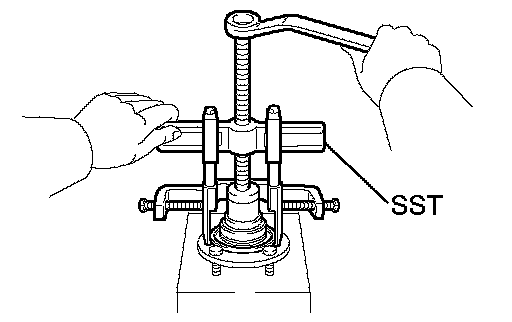

a. Using SST, remove the dust deflector from the output shaft.
SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04051, 09957-04010, 09958-04011)
b. Using a screwdriver and a hammer, tap the dust deflector and remove it from the extension housing.
4. REMOVE OIL SEAL

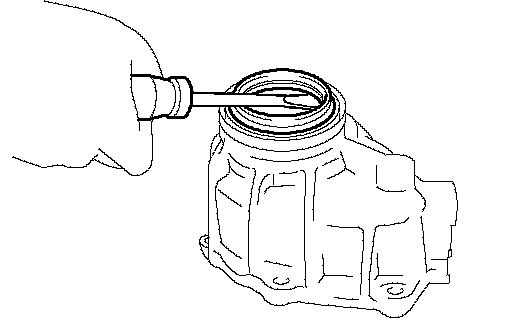

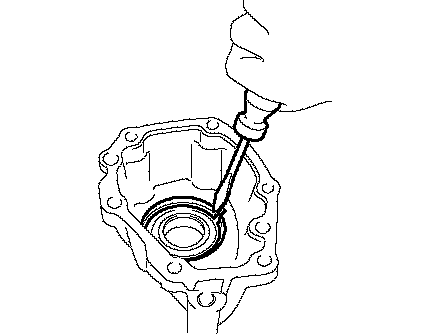

a. Using a screwdriver, pry out the oil seal from the front extension housing.
5. REMOVE BALL BEARING
a. Using a screwdriver, remove the snap ring.

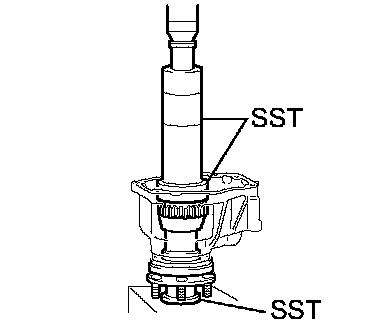

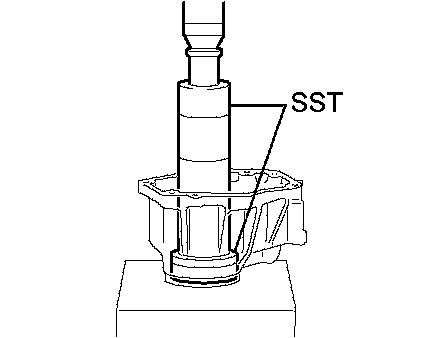

b. Using SST and a press, press out the ball bearing.
SST 09316-60011 (09316-00011, 09316-00071)
REASSEMBLY
HINT: Coat all of the sliding and rotating surfaces with gear oil before reassembly
1. INSTALL BALL BEARING

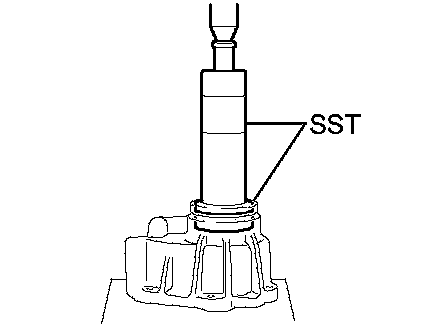

a. Using SST and a press, press in the ball bearing to the front extension housing.
SST 09316-60011 (09316-00011, 09316-00031)
b. Select a snap ring that will allow the minimum axial play

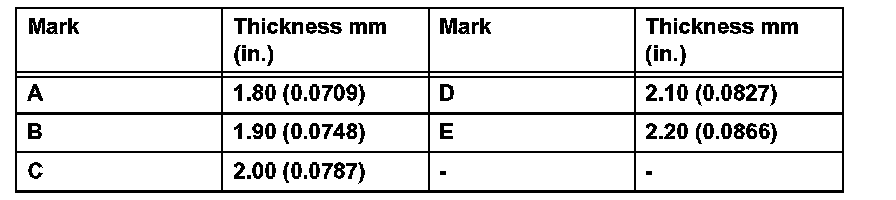

Standard Snap Ring Thickness:
c. Using a screwdriver, install a new snap ring.
2. INSTALL OIL SEAL
a. Apply MP grease to the lip of a new oil seal.

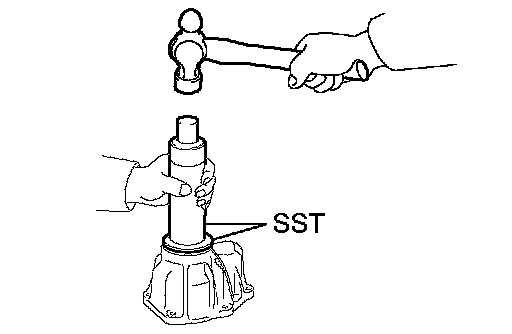

b. Using SST and a hammer, tap in the oil seal to the front extension housing.
SST 09316-60011 (09316-00011, 09316-00061)
3. INSTALL DUST DEFLECTOR

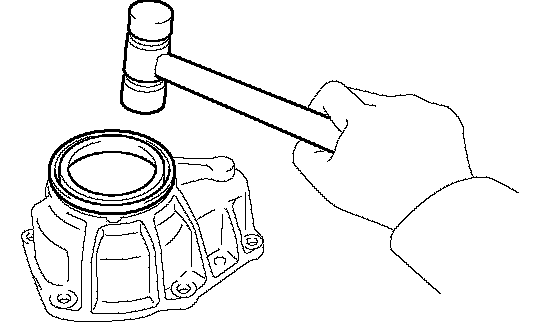

a. Using a plastic-faced hammer, install a new dust deflector to the front extension housing.
b. Using SST and a press, press in a new dust deflector to the front output shaft.
SST 09316-20011, 09316-60011 (09316-00011)
4. INSTALL FRONT OUTPUT SHAFT AND DRIVE CLUTCH HUB

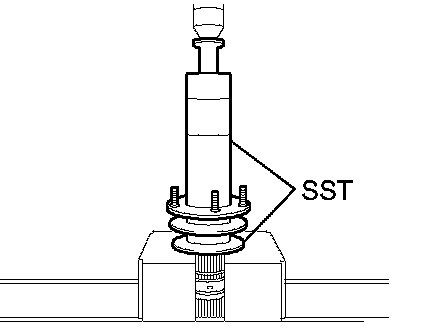

a. Using SST and a press, press in the output shaft and drive clutch hub.
SST 09316-20011, 09316-60011 (09316-00011, 09316-00041, 09316-00071)
b. Select a snap ring that will allow the minimum axial play

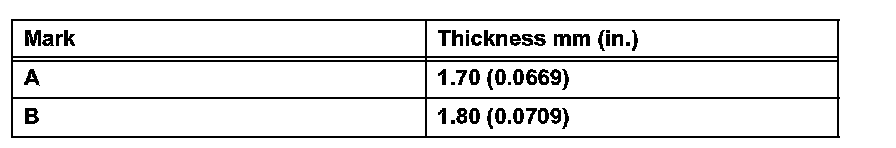

Standard Snap Ring Thickness:
c. Using a snap ring expander, install a new snap ring.
