Center Differential Lock Switch
CENTER DIFFERENTIAL LOCK SWITCHINSPECTION

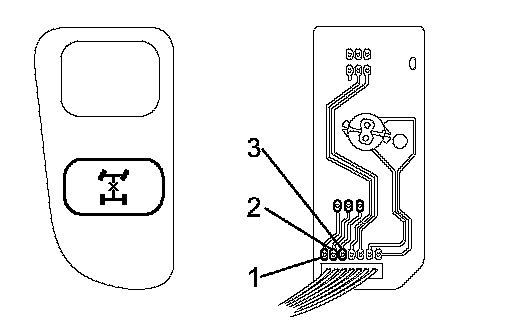

1. INSPECT DIFFERENTIAL LOCK INDICATOR SWITCH

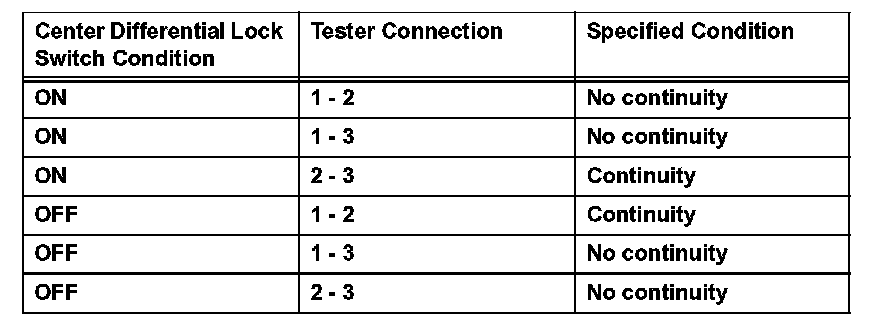

a. Check the continuity between each terminal.
OK:
INSPECTION
1. INSPECT DIFFERENTIAL LOCK INDICATOR SWITCH
a. Check the continuity between each terminal.
