Input Shaft: Service and Repair

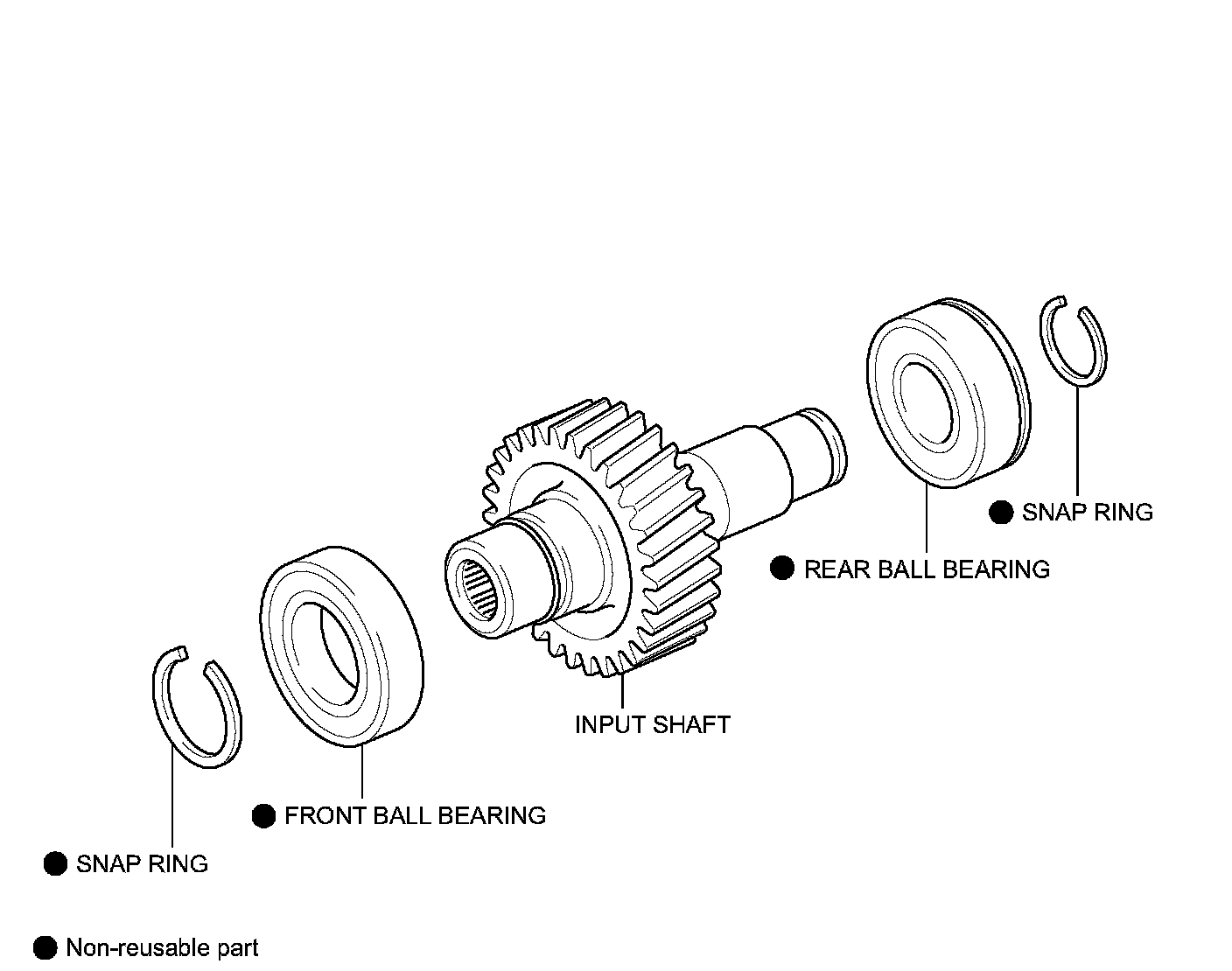

INPUT SHAFTComponents:
DISASSEMBLY
1. REMOVE REAR BALL BEARING

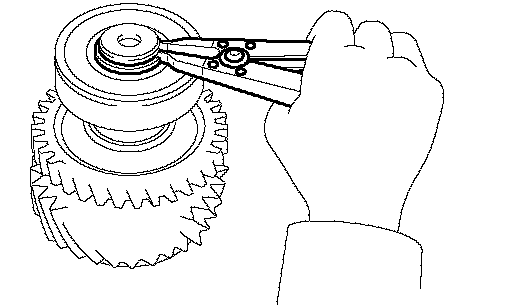

a. Using a snap ring expander, remove the snap ring.

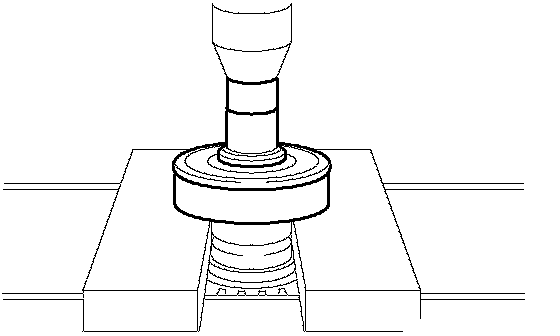

b. Using a socket wrench and press, press out the rear ball bearing.
2. REMOVE FRONT BALL BEARING
a. Using a snap ring expander, remove the snap ring.

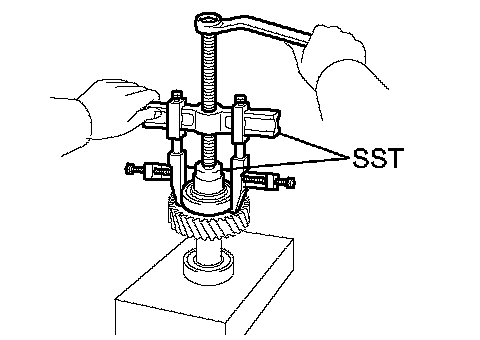

b. Using SST, remove the front ball bearing.
SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04011, 09957-04010, 09958-04011), 09950-60010 (09951-00400)
REASSEMBLY
HINT: Coat all of the sliding and rotating surfaces with gear oil before reassembly
1. INSTALL FRONT BALL BEARING

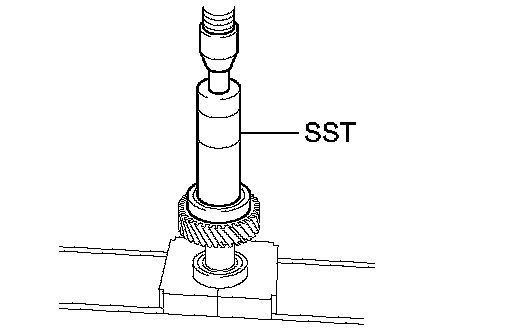

a. Using SST and a press, press in a new ball bearing.
SST 09316-60011 (09316-00011)
b. Select a snap ring that will allow the minimum axial play

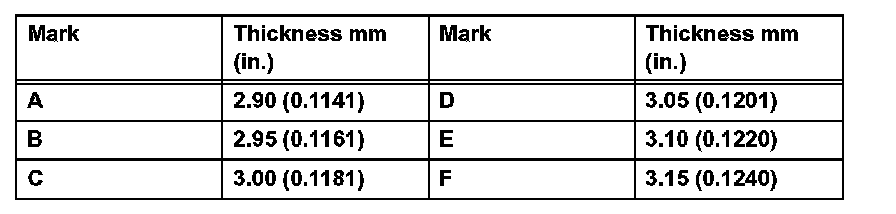

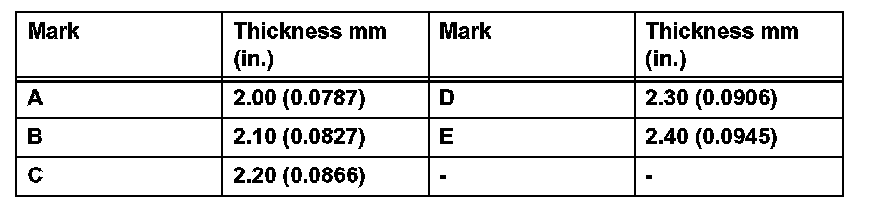

Standard Snap Ring Thickness:

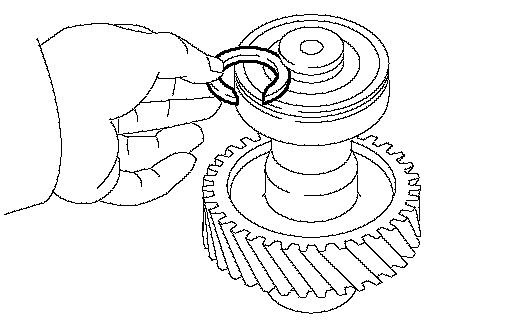

c. Using a snap ring expander, install a new snap ring.
2. INSTALL REAR BALL BEARING

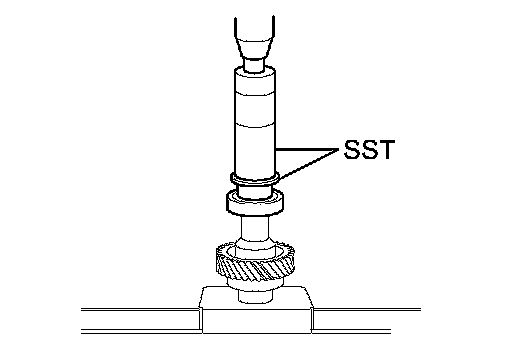

a. Using SST and a press, press in a new ball bearing.
SST 09316-60011 (09316-00011, 09316-00031)
b. Select a snap ring that will allow the minimum axial play
Standard Snap Ring Thickness:

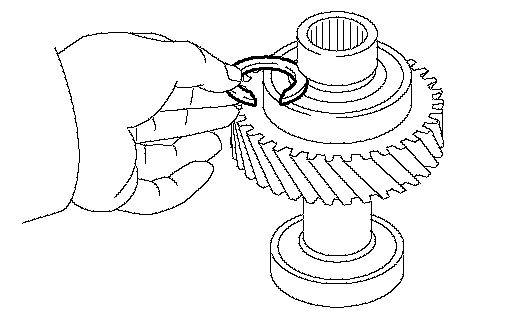

c. Using a snap ring expander, install a new snap ring.
