Wiring Harness: Testing and Inspection

INSPECTION

1. INSPECT TRANSMISSION WIRE

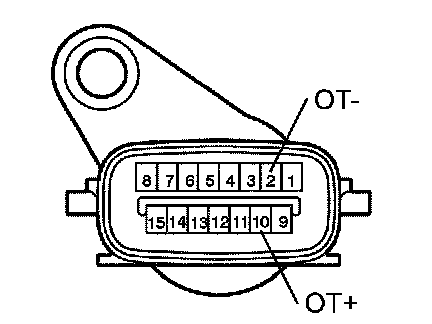

a. Disconnect the E1 ATF temperature sensor connector from the transmission.
b. Measure the resistance of the temperature sensor.

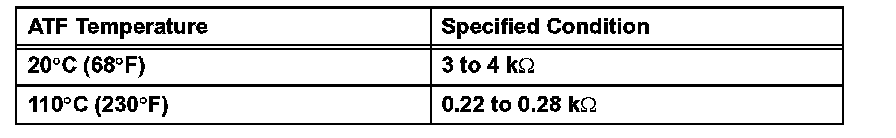

Standard Resistance:

HINT: If the resistance is out of the specified range of either of the ATF temperatures shown in the table, the driveability of the vehicle may decrease.
