On Vehicle Inspection
ON-VEHICLE INSPECTION
1. CHECK SHIFT LOCK CONTROL ECU

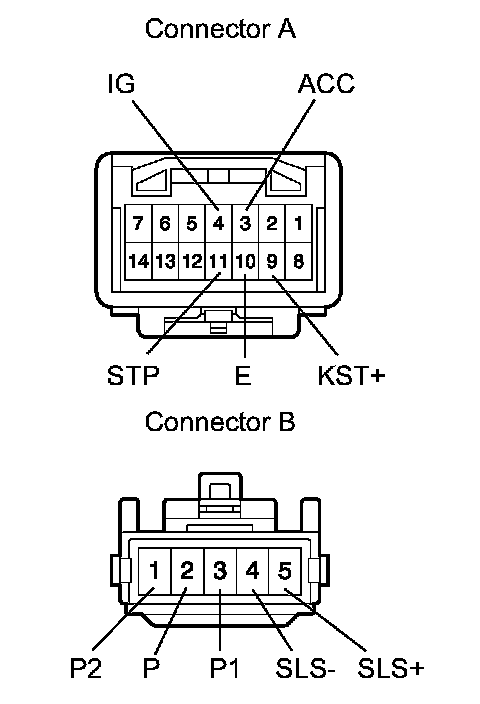

a. Measure the voltage of the connector.
HINT: Do not disconnect the ECU connector.

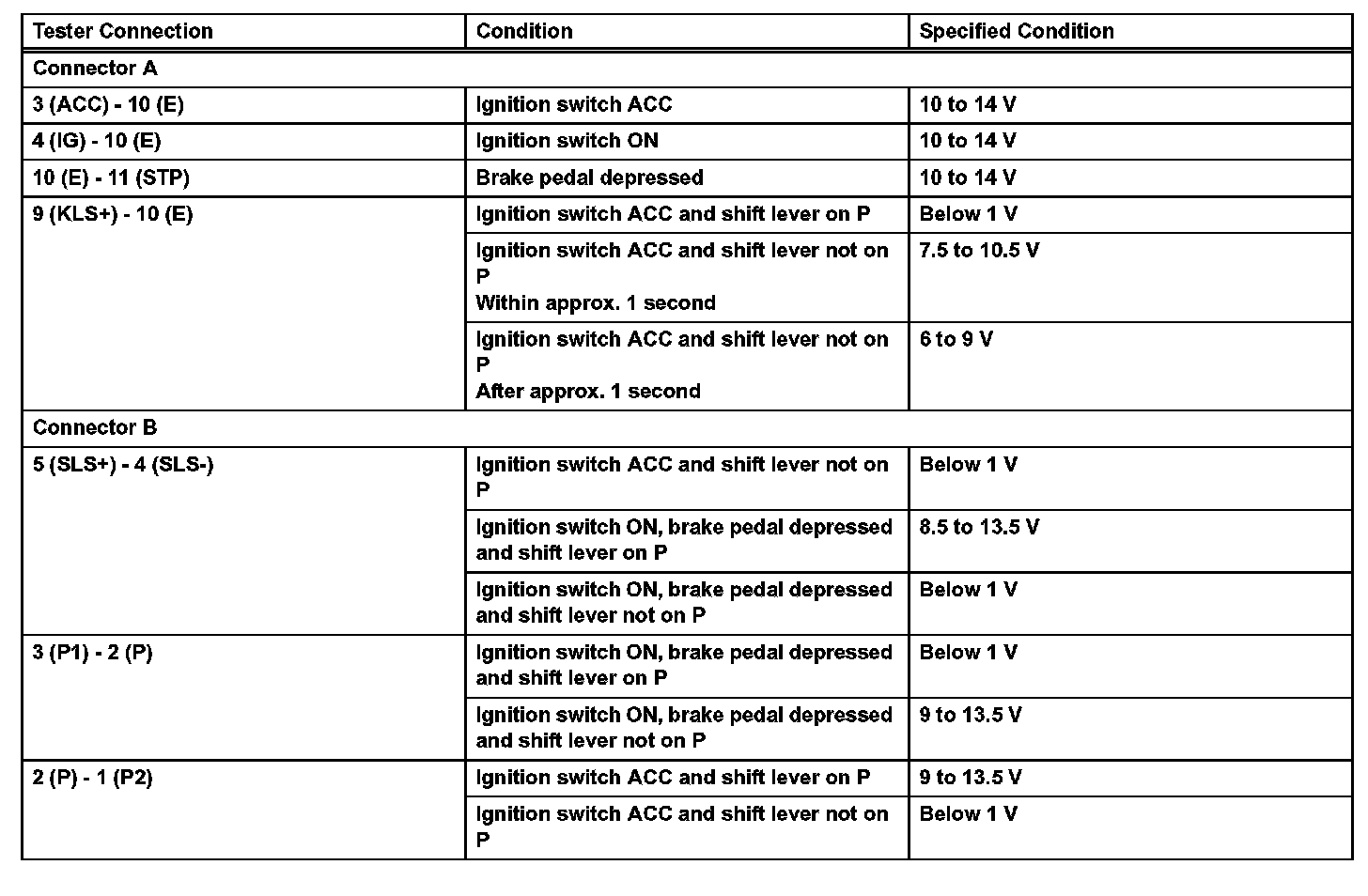

Standard Voltage:
1. CHECK SHIFT LOCK CONTROL ECU
a. Measure the voltage of the connector.
HINT: Do not disconnect the ECU connector.
