Rear Lower Control Arm

REAR LOWER CONTROL ARM

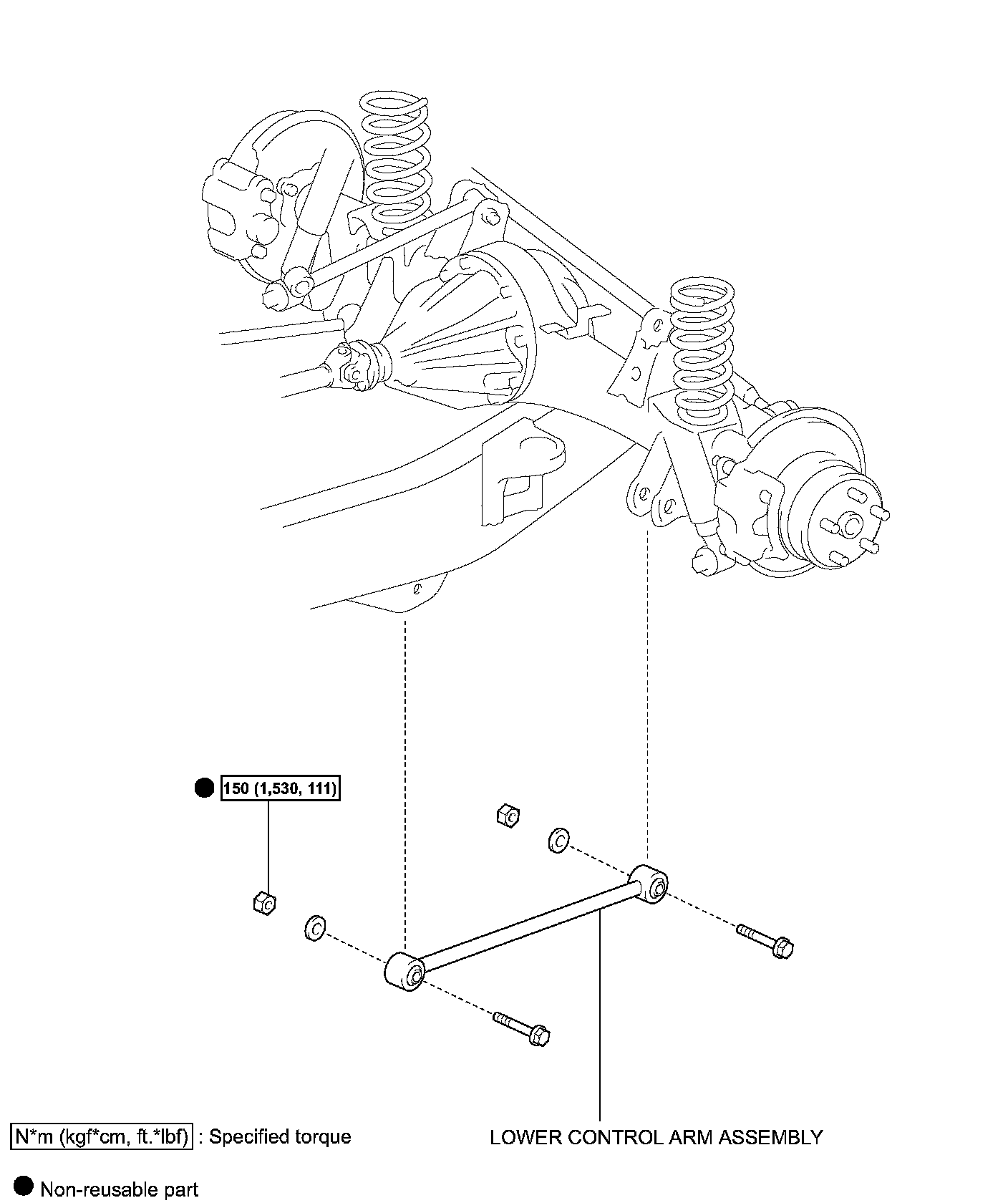

Components:

REMOVAL
1. REMOVE REAR WHEEL
Torque: 131 Nm (1,340 kgf-cm, 97 ft. lbs.)
2. SUPPORT REAR AXLE HOUSING WITH JACK





3. REMOVE LOWER CONTROL ARM ASSEMBLY

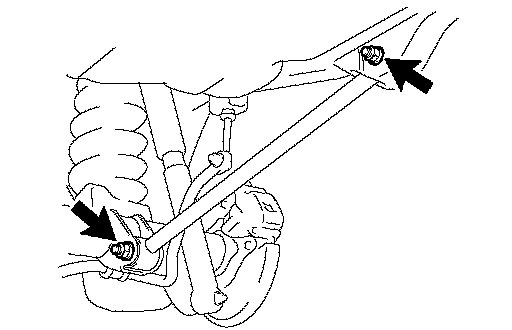

a. Remove the 2 nuts, washers, bolts and lower control arm.
Torque: 150 Nm (1,530 kgf-cm, 111 ft. lbs.)

HINT: At the time of installation, please refer to the following items.
^ Replace the 2 used nuts with new ones.
^ After stabilizing the suspension, torque the nuts.

INSTALLATION
Installation is in the reverse order of removal.
