Position Sensor Power Source Circuit

Position Sensor Power Source Circuit

DESCRIPTION
Power to the position sensor is output from the ECU.

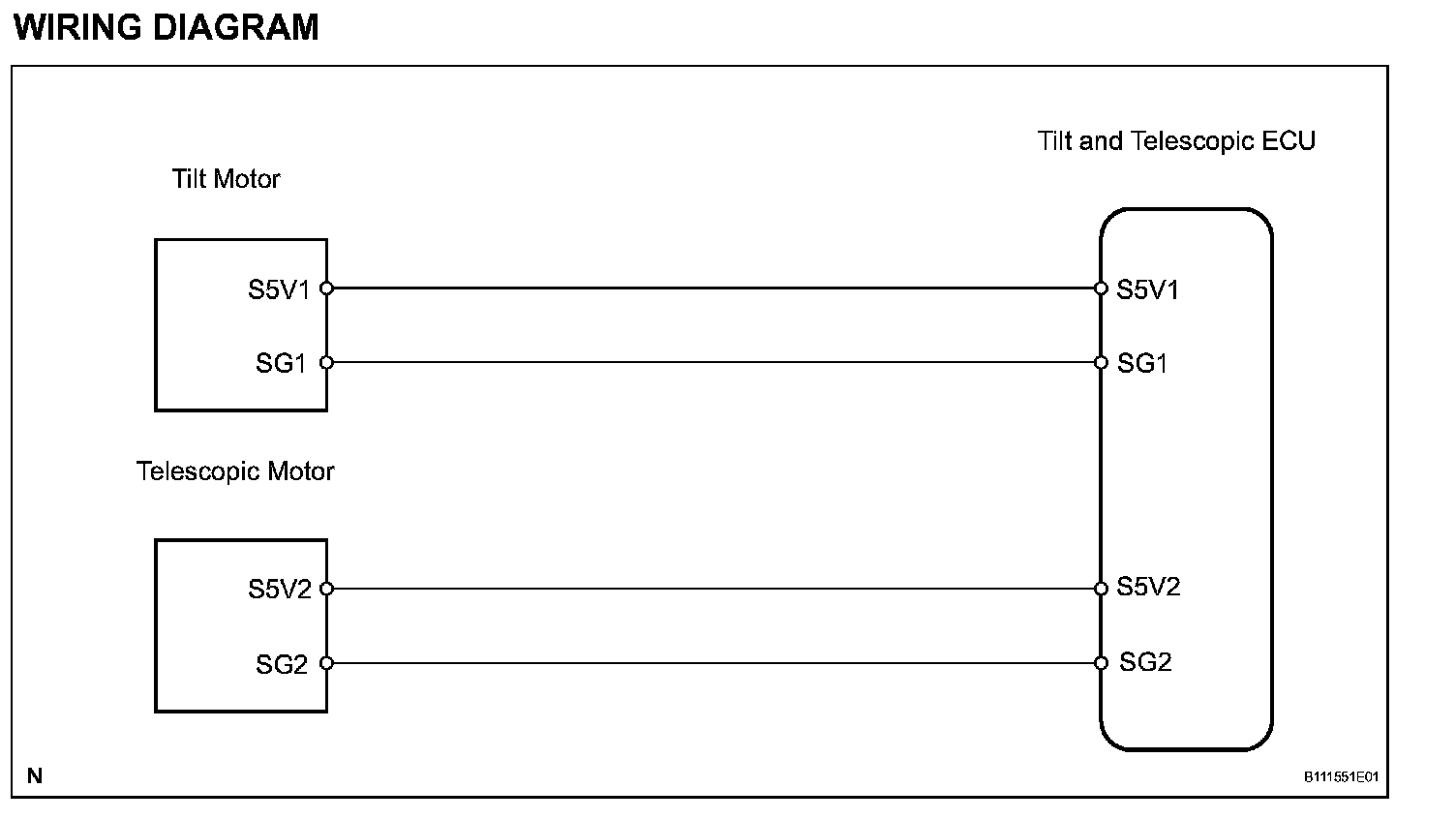

WIRING DIAGRAM:





INSPECTION PROCEDURE

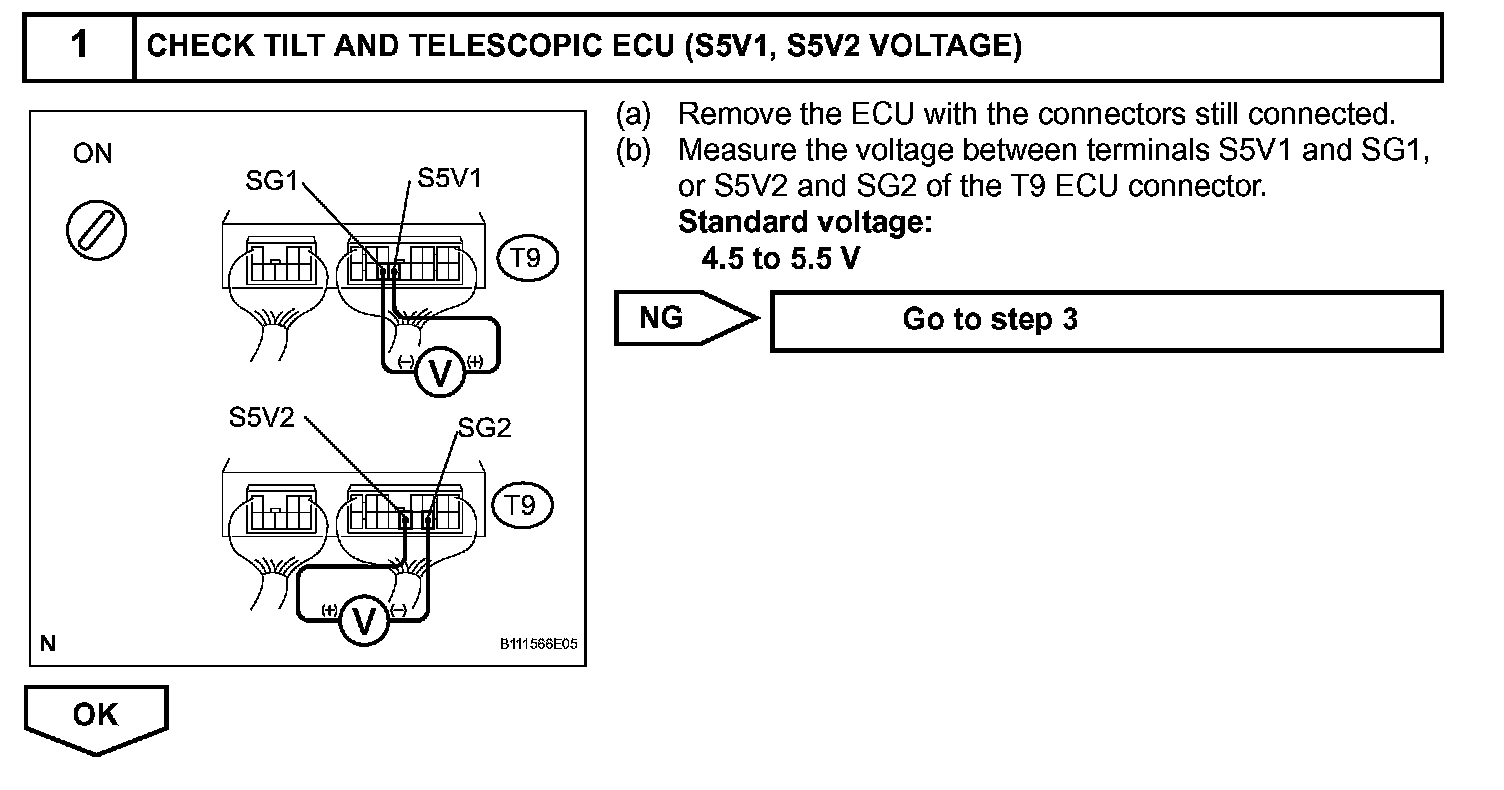

Step 1:

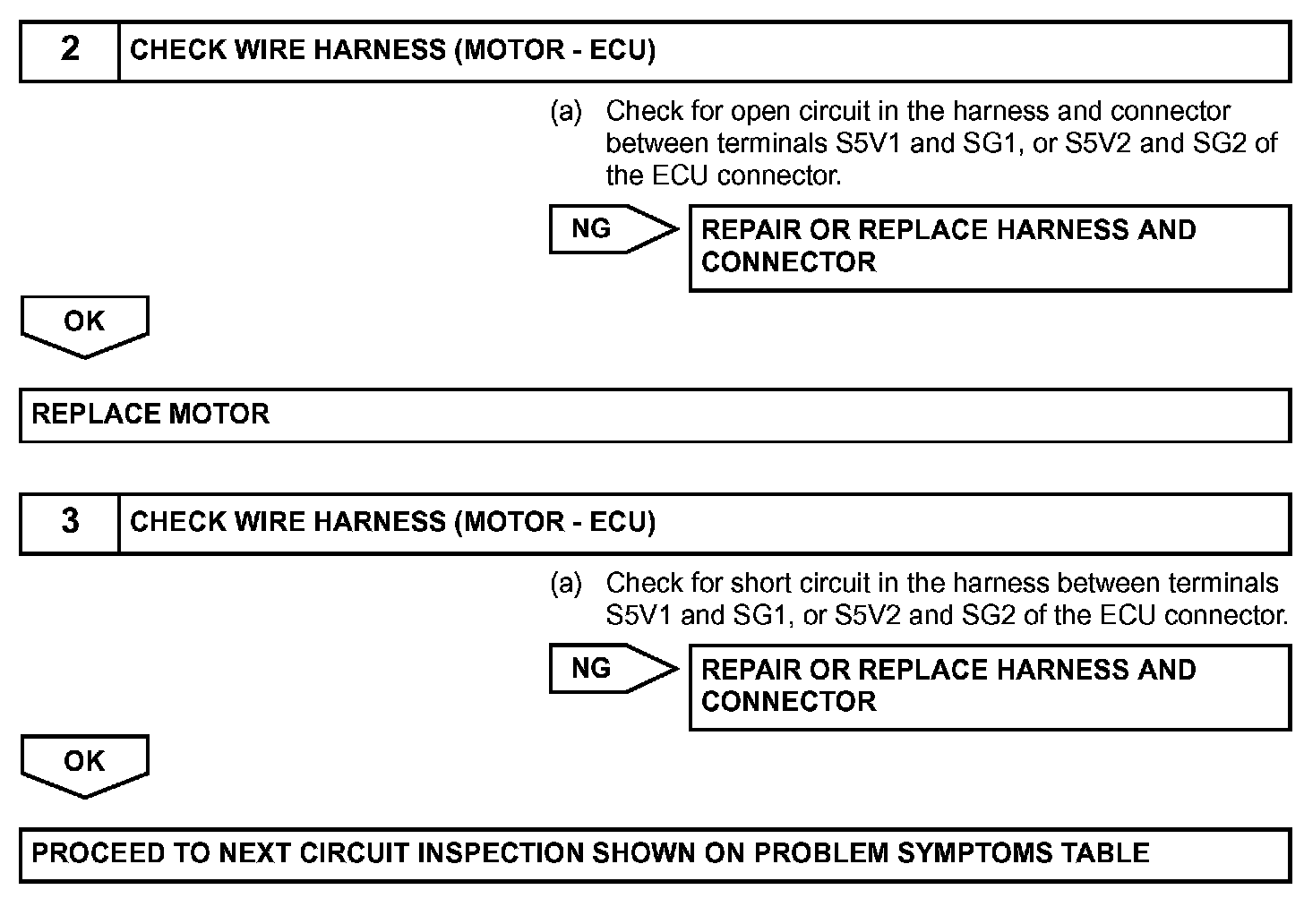

Steps 2-3:
