Component Inspection

INSPECTION
1. REMOVE FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

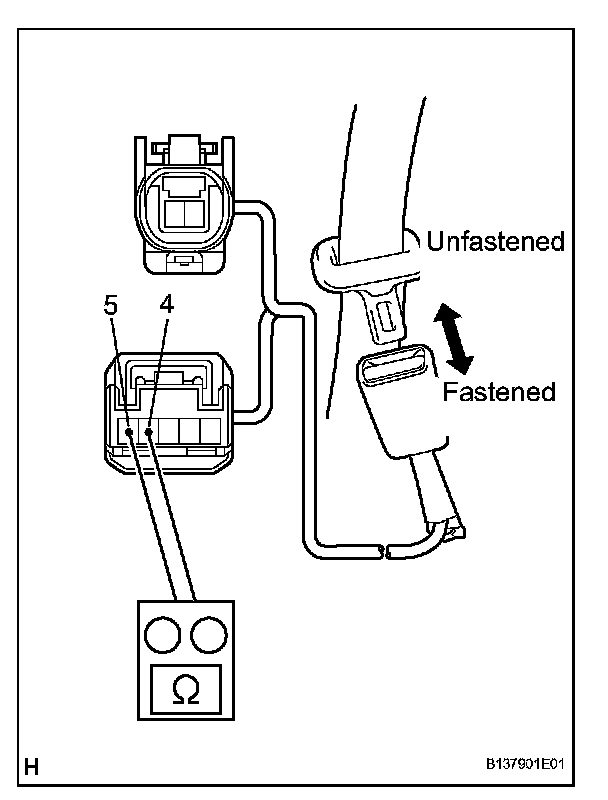

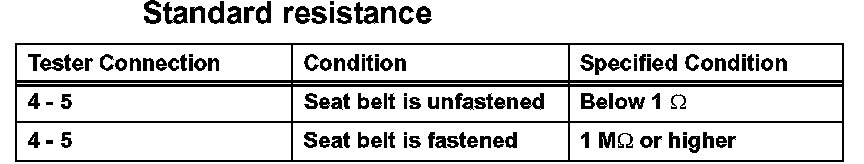

a. Measure the resistance of the buckle switch.

If the result is not as specified, replace the belt assembly.
