Fuel Pump Relay

ON-VEHICLE INSPECTION

1. REMOVE FUEL PUMP RELAY (Marking: F/PUMP)
a. Remove the engine room relay block cover.
b. Remove the relay from the engine room relay block.




2. CHECK FUEL PUMP RELAY

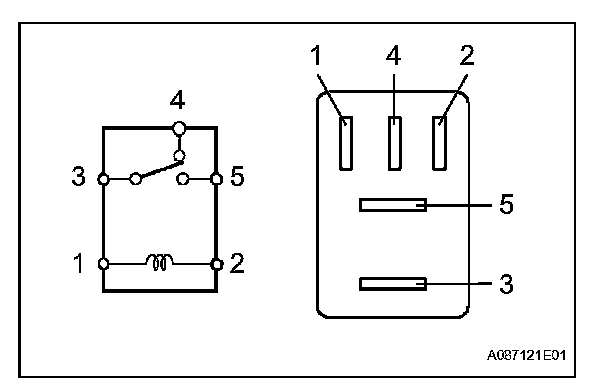

a. Measure the resistance of the relay.

If the result is not as specified, replace the relay.

3. INSTALL FUEL PUMP RELAY
