Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY
2. REMOVE INTAKE AIR CONNECTOR
3. DISCONNECT VENTILATION HOSE

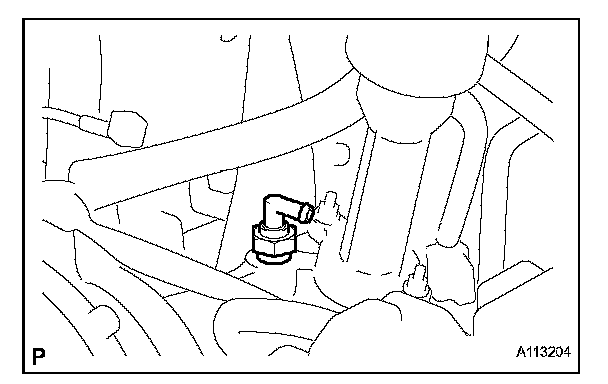

4. REMOVE VENTILATION VALVE SUB-ASSEMBLY
a. Remove the ventilation valve.

INSTALLATION




1. INSTALL VENTILATION VALVE

a. Install the ventilation valve.

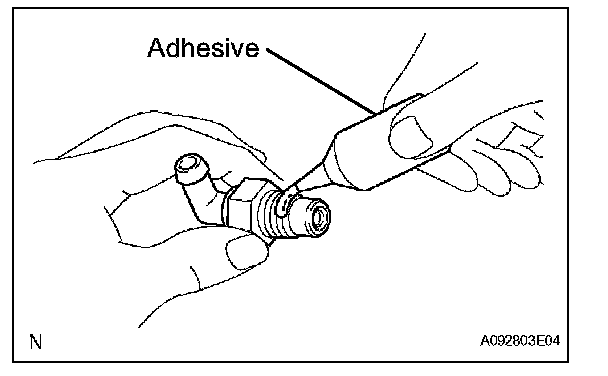

1. Apply adhesive to 2 or 3 threads.

Adhesive:Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent




b. Install the ventilation valve.

Torque:27 N.m (275 kgf.cm, 20 ft.lbf)

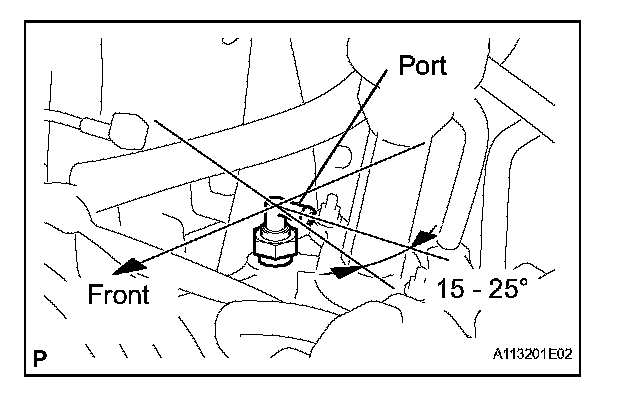

HINT: After applying the specified torque, rotate the ventilation valve clockwise with the port faced in the direction indicated in the illustration.

2. CONNECT VENTILATION HOSE
3. INSTALL INTAKE AIR CONNECTOR PIPE
4. INSTALL V-BANK COVER SUB-ASSEMBLY
