Evaporative Emission Control Canister: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE CANISTER ASSEMBLY

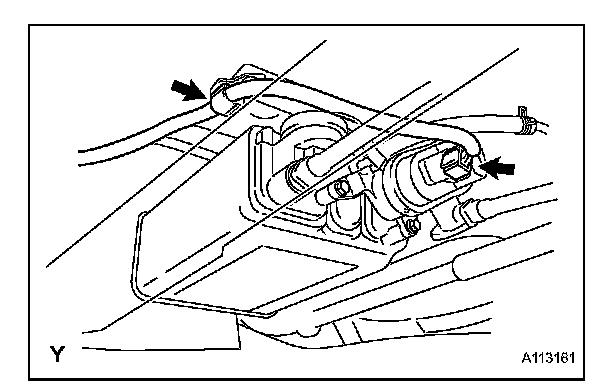

a. Disconnect the connector and detach the clamp.

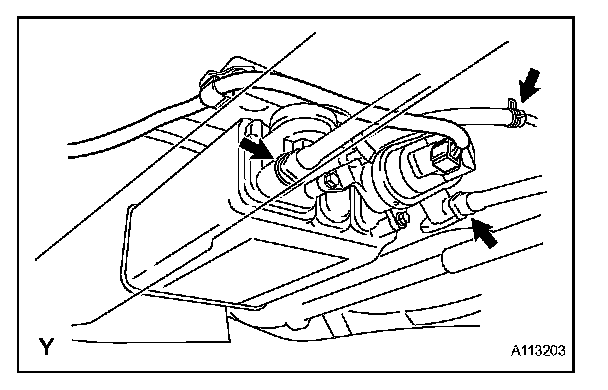

b. Disconnect the 2 tubes and hose.

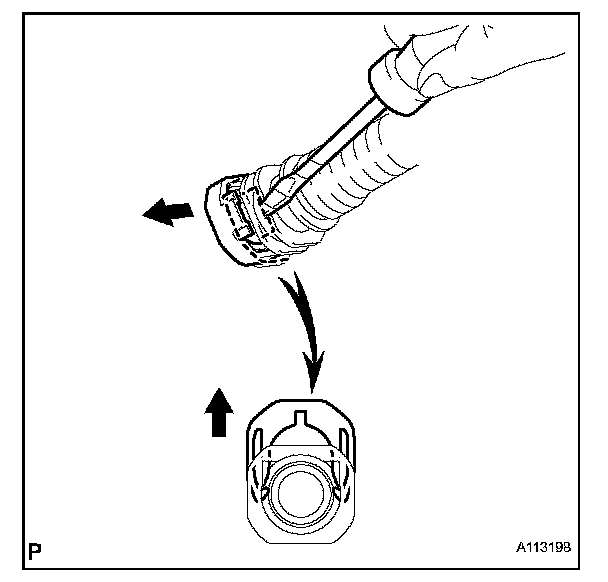

1. Using a screwdriver, pry up the retainer.
HINT: Do not remove the retainer.
2. Disconnect the purge line hose.
3. Disconnect the air inlet line tube from the canister filter.
4. Disconnect the vent line tube from the canister (leak detection pump).

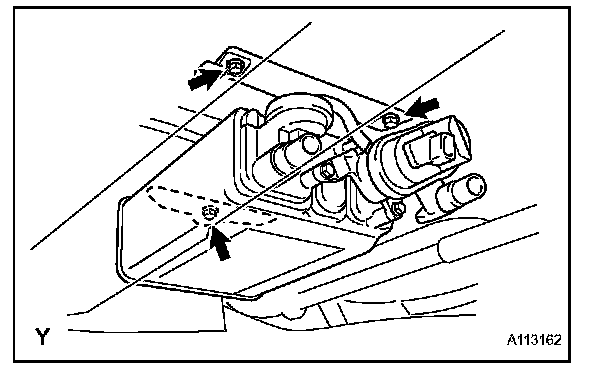

c. Remove the 3 bolts and canister assembly.
INSTALLATION
1. INSTALL CANISTER ASSEMBLY

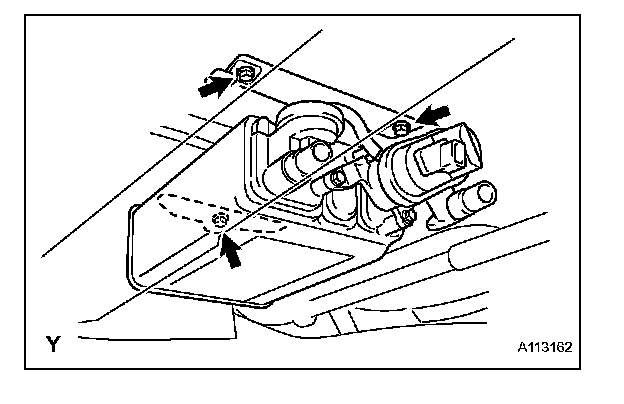

a. Install the canister with the 3 bolts.
Torque: 14.7 N.m (150 kgf.cm, 11 ft.lbf)

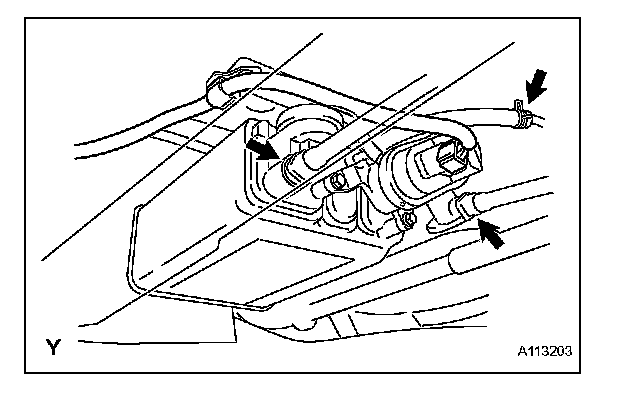

b. Connect the 2 tubes and hose.
1. Connect the air inlet line tube to the canister (leak detection pump).
2. Connect the vent line tube to the canister filter.
3. Connect the purge line hose.

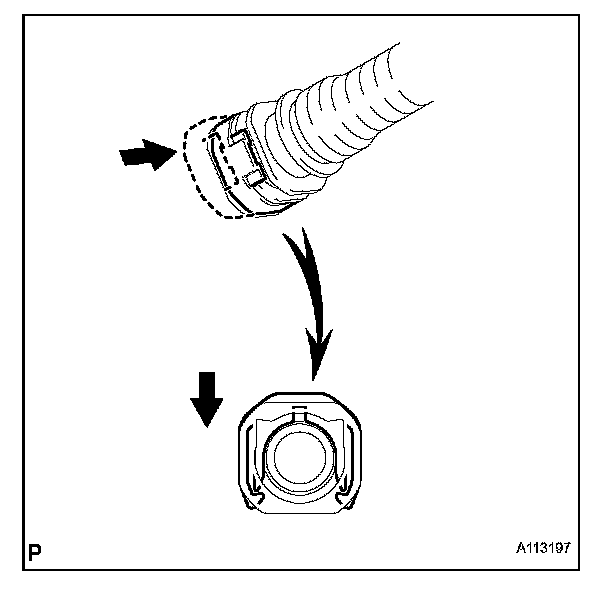

HINT: Install the hose to the canister, and then attach the retainer.
c. Connect the connector.
d. Secure the wire with the clamp.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
