Canister Purge Control Valve: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE V-BANK COVER SUB-ASSEMBLY

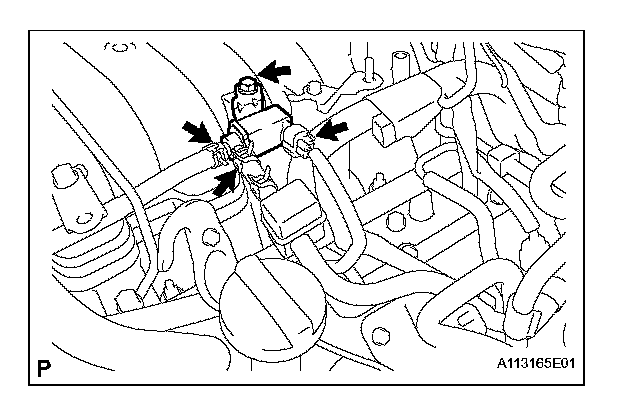

3. REMOVE PURGE VSV
a. Disconnect the purge VSV connector.
b. Disconnect the 2 hoses.
c. Remove the bolt and purge VSV from the intake manifold.
INSTALLATION

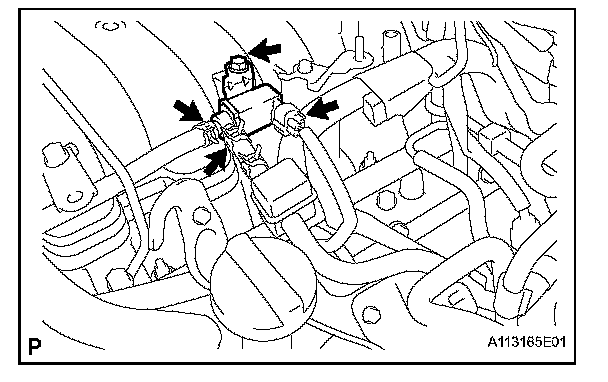

1. INSTALL PURGE VSV
a. Install the purge VSV with the bolt.
b. Connect the 2 hoses.
c. Connect the purge VSV connector.
2. INSTALL V-BANK COVER SUB-ASSEMBLY
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
