Curiosii for ever!: Car repair manuals for everyone.
Home >> Lexus Truck >> 2007 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Actuator >> Locations

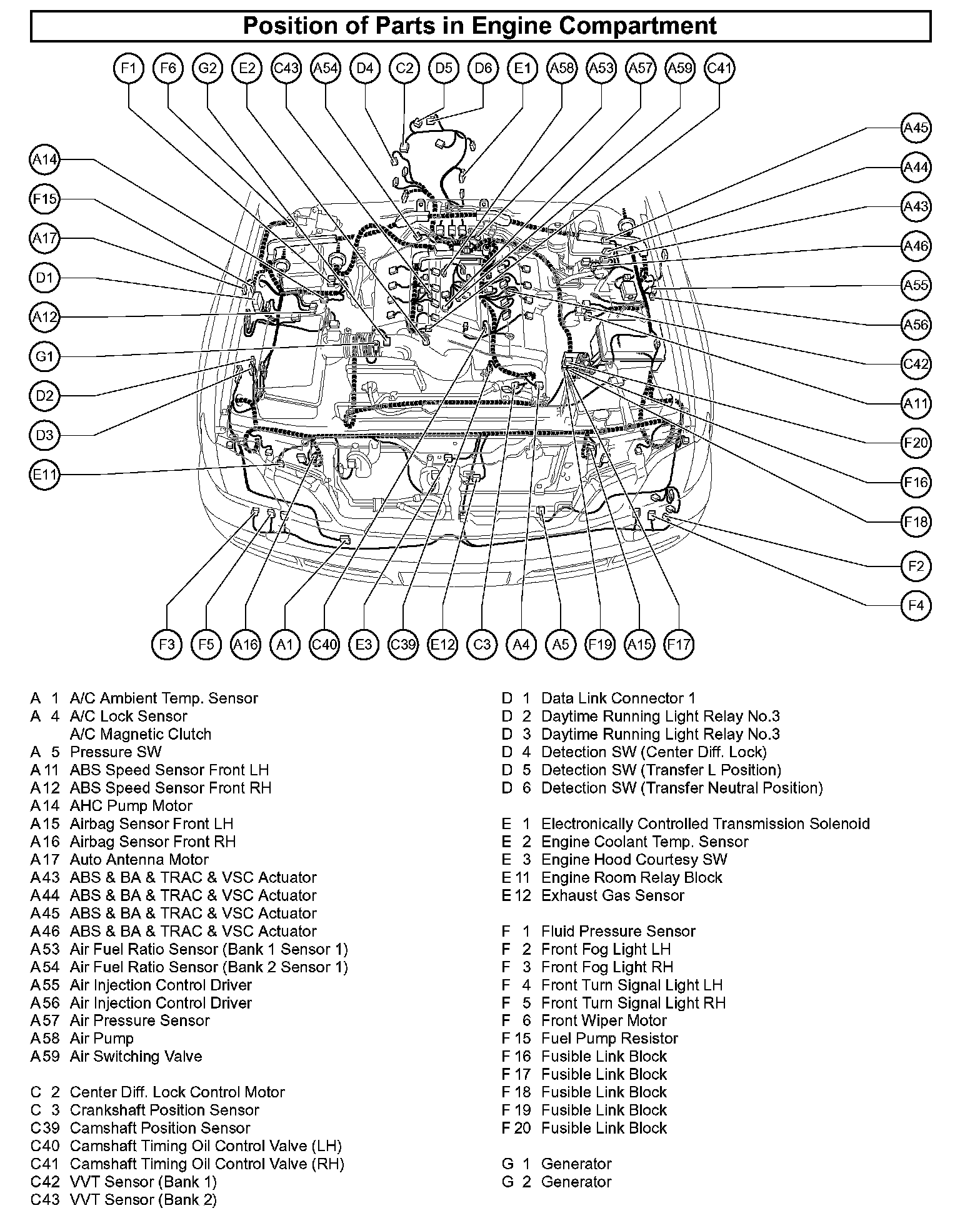

Variable Valve Timing Actuator: Locations

A/C - Ge:



Pa - Wo:



Wiper And Washer System:
