Heated Oxygen Sensor
REMOVALCAUTION:
- Wear protective gloves when removing the sensor.
- The exhaust pipe assembly is extremely hot immediately after the engine has stopped.
- Confirm that the exhaust pipe assembly has cooled down before removing it.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

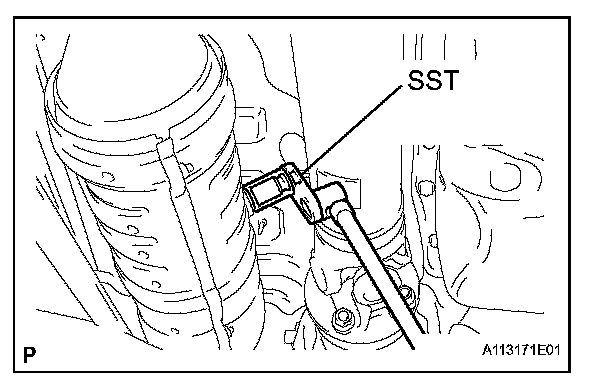

2. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
a. Disconnect the sensor connector.
b. Using SST, remove the sensor.
SST 09224-00010

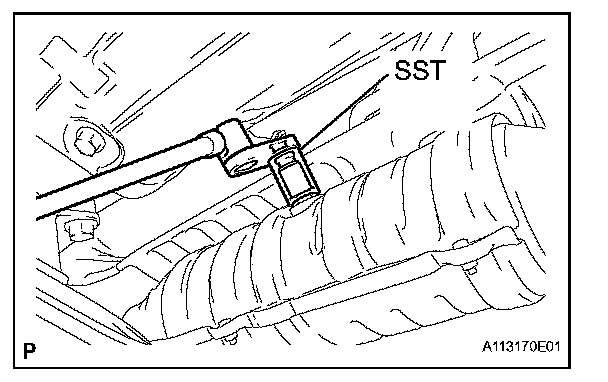

3. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
a. Disconnect the sensor connector.
b. Using SST, remove the sensor.
SST 09224-00010
INSTALLATION

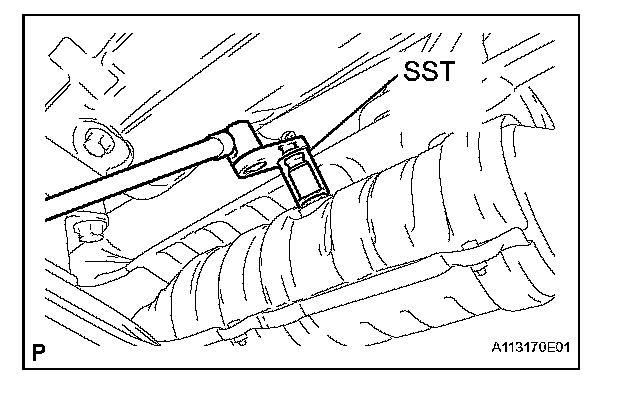

1. INSTALL HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
a. Using SST, install the sensor.
SST 09224-00010
Torque:40 N.m (408 kgf.cm, 30 ft.lbf) for use with SST 44 N.m (449 kgf.cm, 32 ft.lbf) for use without SST
HINT: Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
b. Connect the sensor connector.

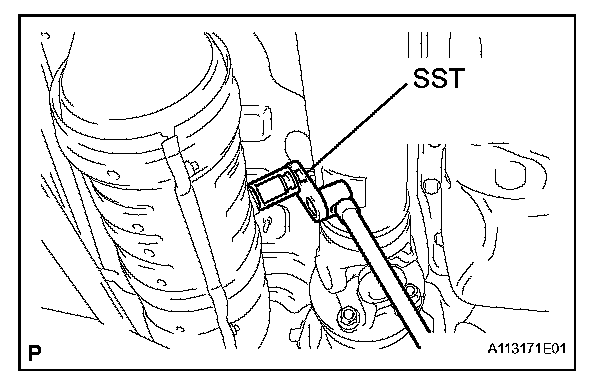

2. INSTALL HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
a. Using SST, install the sensor.
SST 09224-00010
Torque:40 N.m (408 kgf.cm, 30 ft.lbf) for use with SST 44 N.m (449 kgf.cm, 32 ft.lbf) for use without SST
HINT: Use a torque wrench with a fulcrum length of 30 cm (11.81 in.).
b. Connect the sensor connector.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
