Turn Signal Switch: Testing and Inspection

INSPECTION

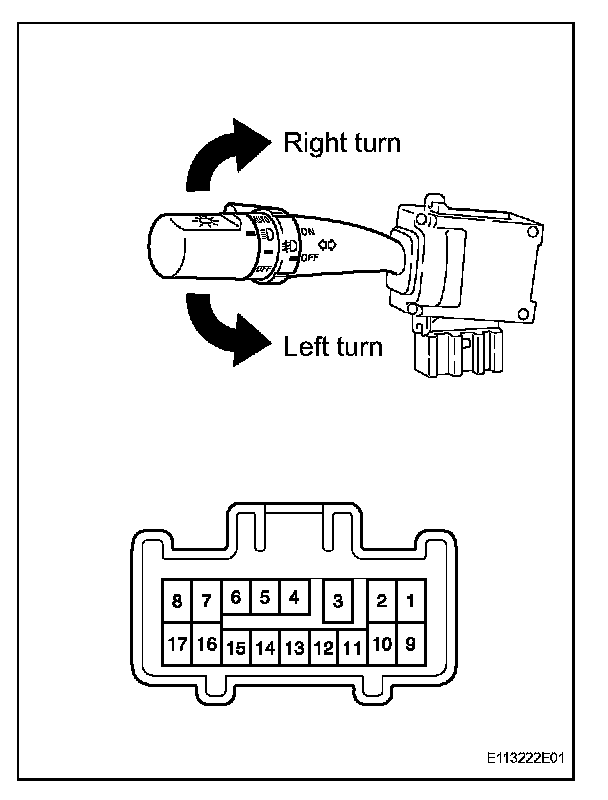

1. INSPECT TURN SIGNAL SWITCH

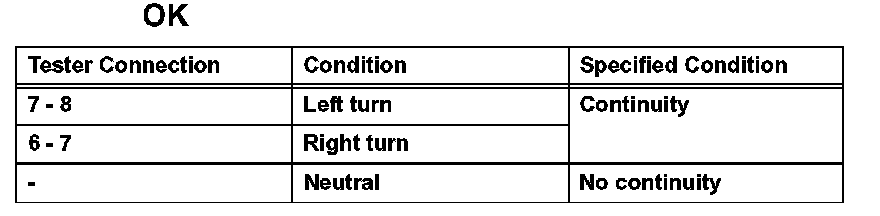

a. Measure the continuity of the switch.

If the result is not as specified, replace the headlight dimmer switch assembly.
