Compressor Magnetic Clutch Circuit

Compressor Circuit

DESCRIPTION
The A/C amplifier outputs the magnetic clutch ON signal from terminal ACT to the ECM. When the ECM receives this signal, it sends a signal from terminal MGC and switches the A/C magnetic clutch relay ON, thus turning on the A/C magnetic clutch.

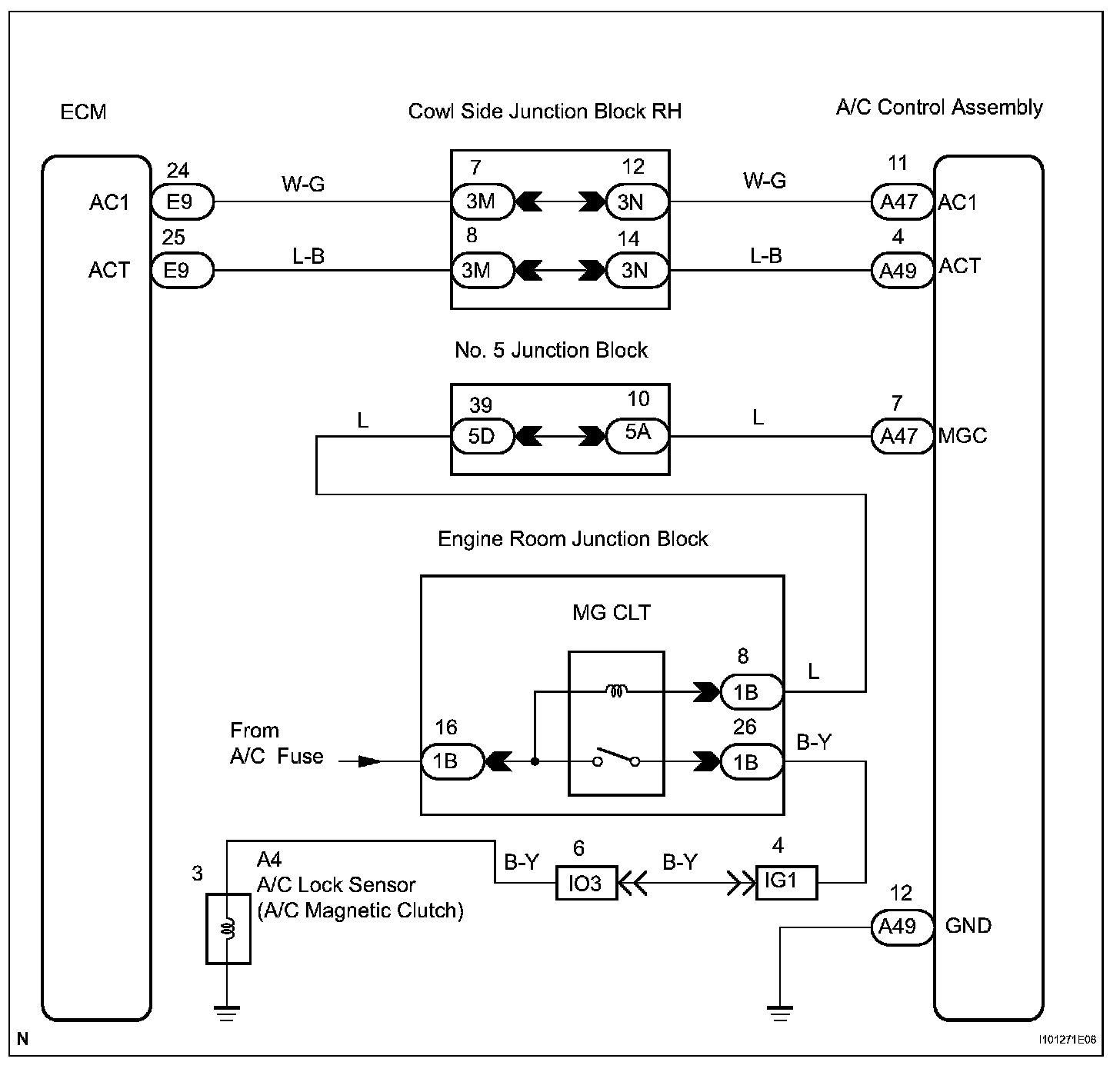

Wiring Diagram:

INSPECTION PROCEDURE

HINT: When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.

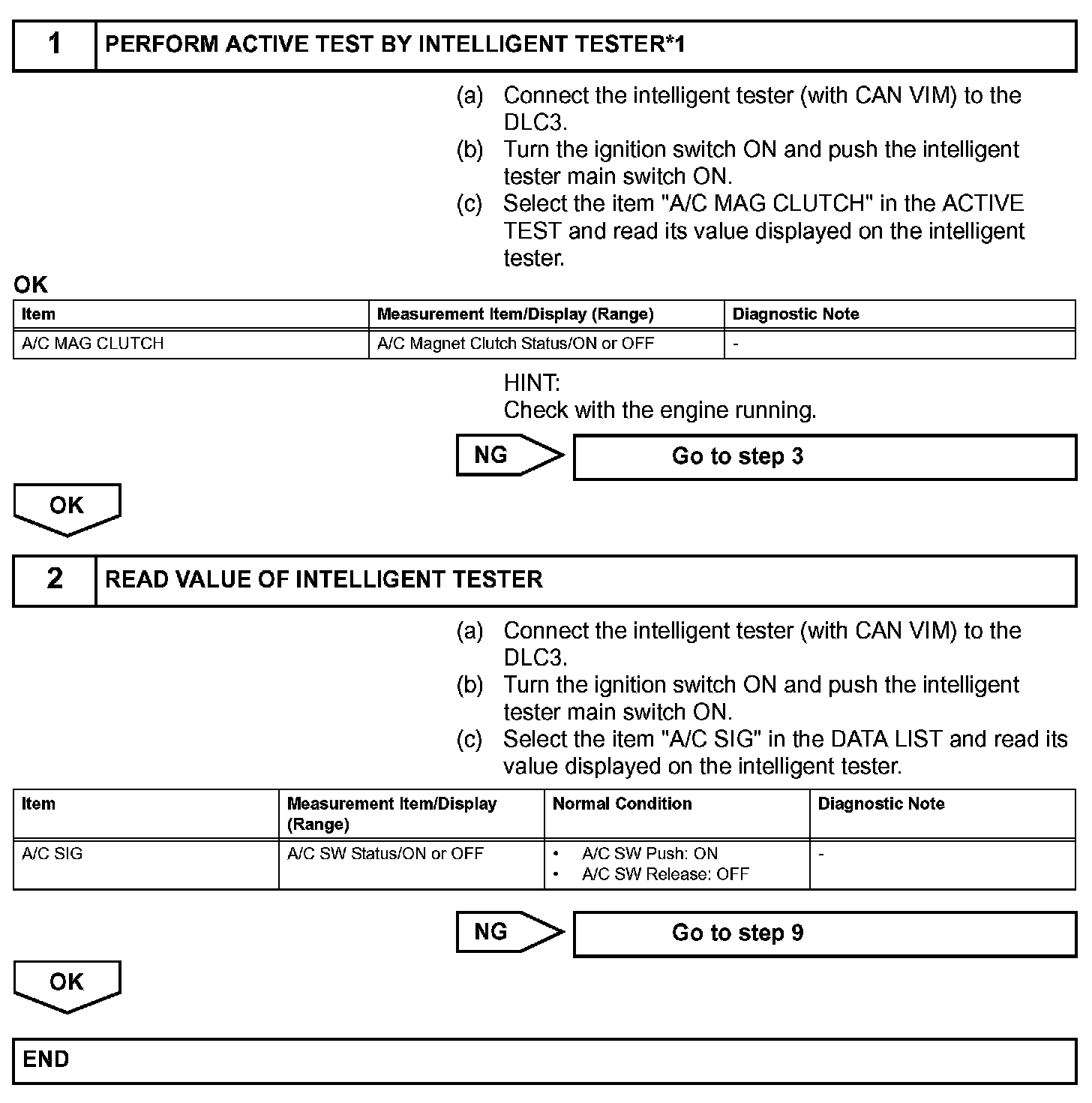

Step 1-2:

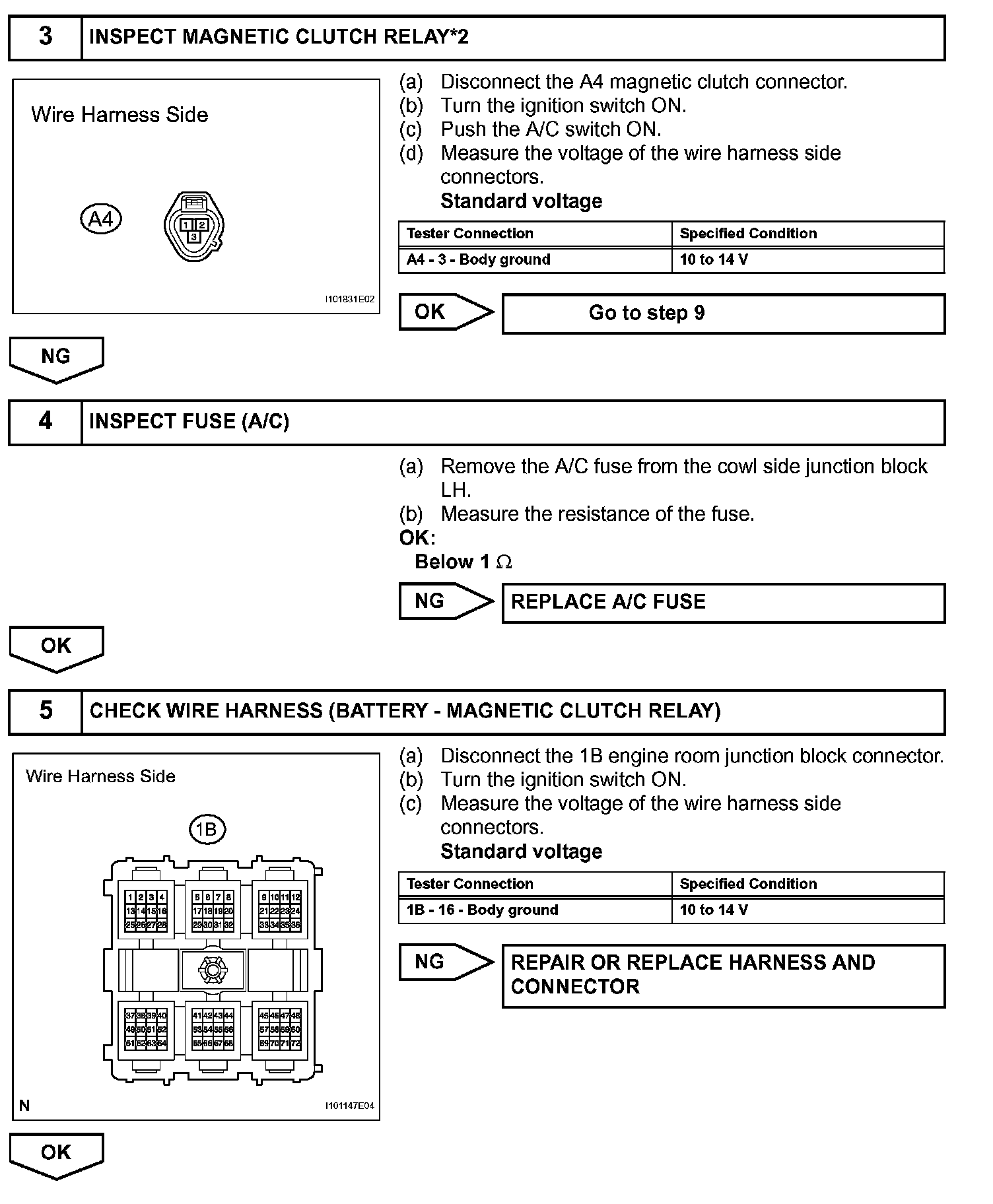

Step 3-5:

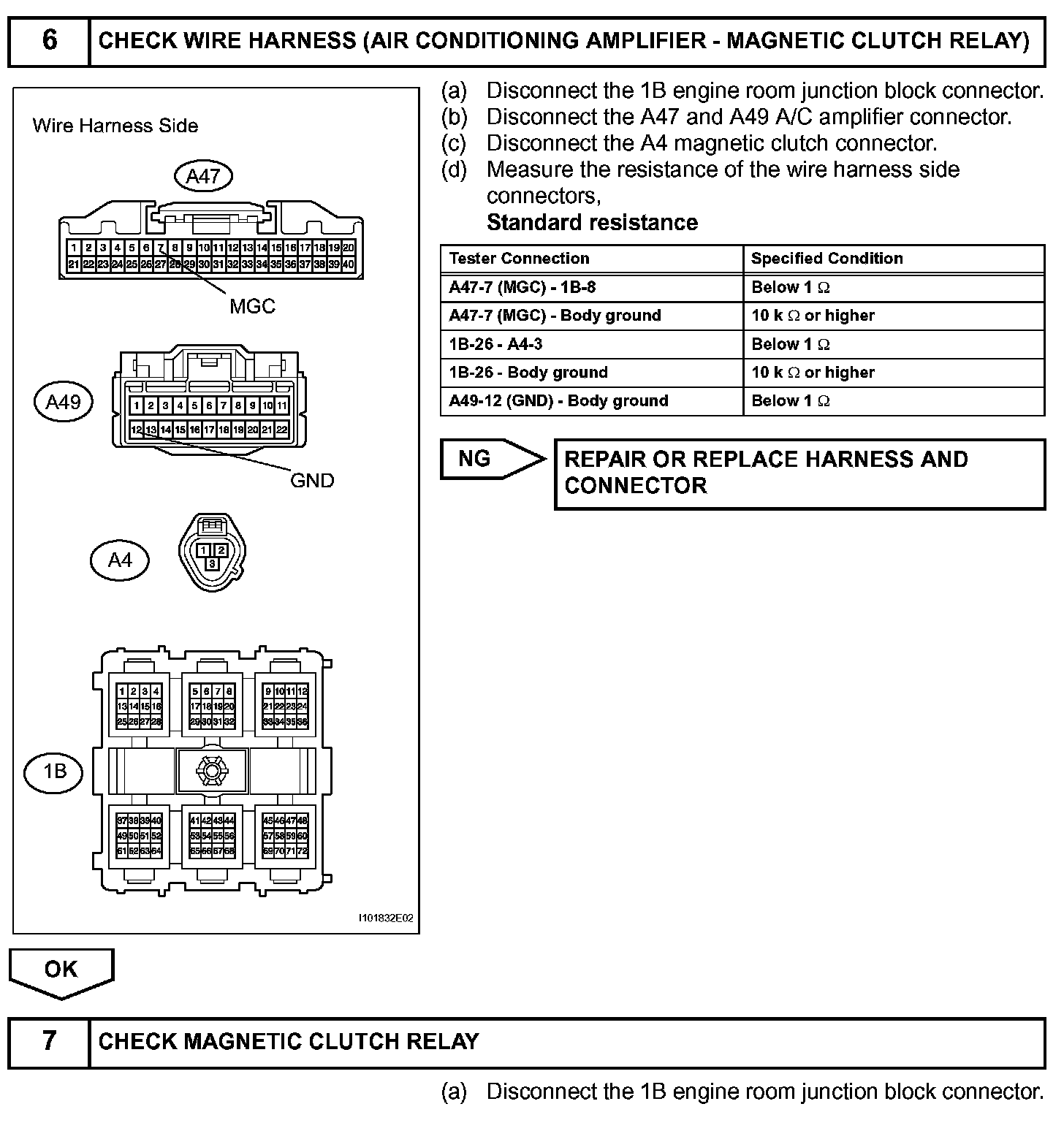

Step 6-7:

Step 7 (Continued)-8:

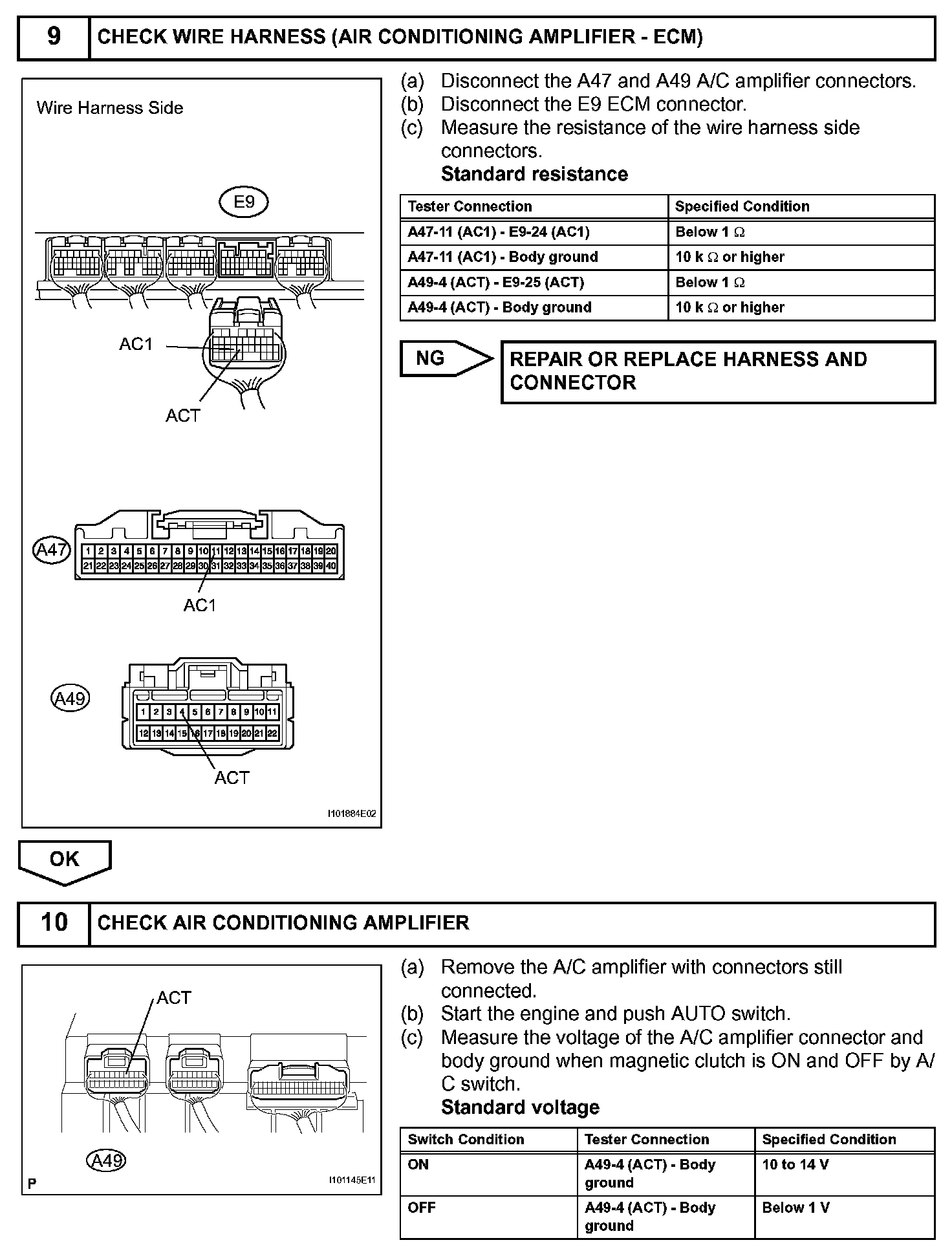

Step 9-10:

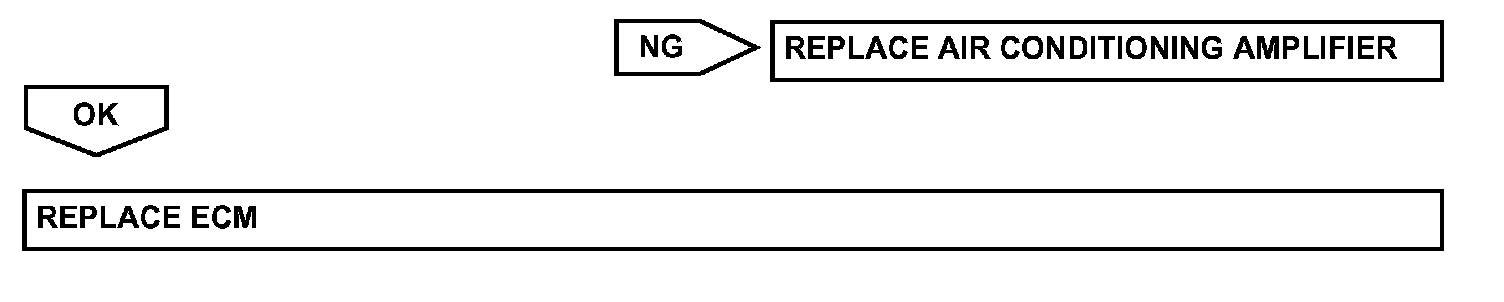

Step 10 (Continued):
