Blower Motor Circuit
Blower Motor
Circuit
DESCRIPTION
This is the power source for the
blower motor
.

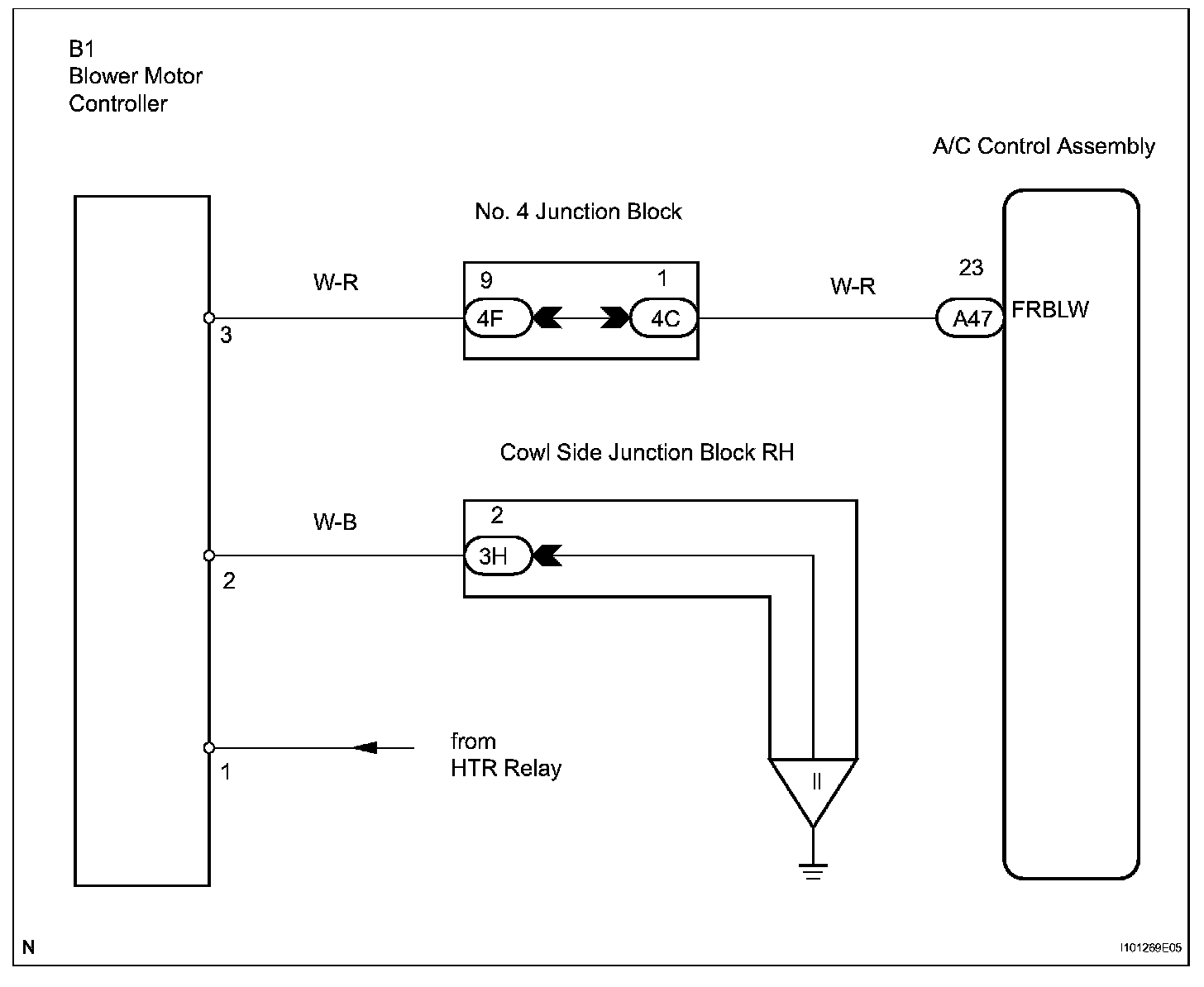

Wiring Diagram:
INSPECTION PROCEDURE

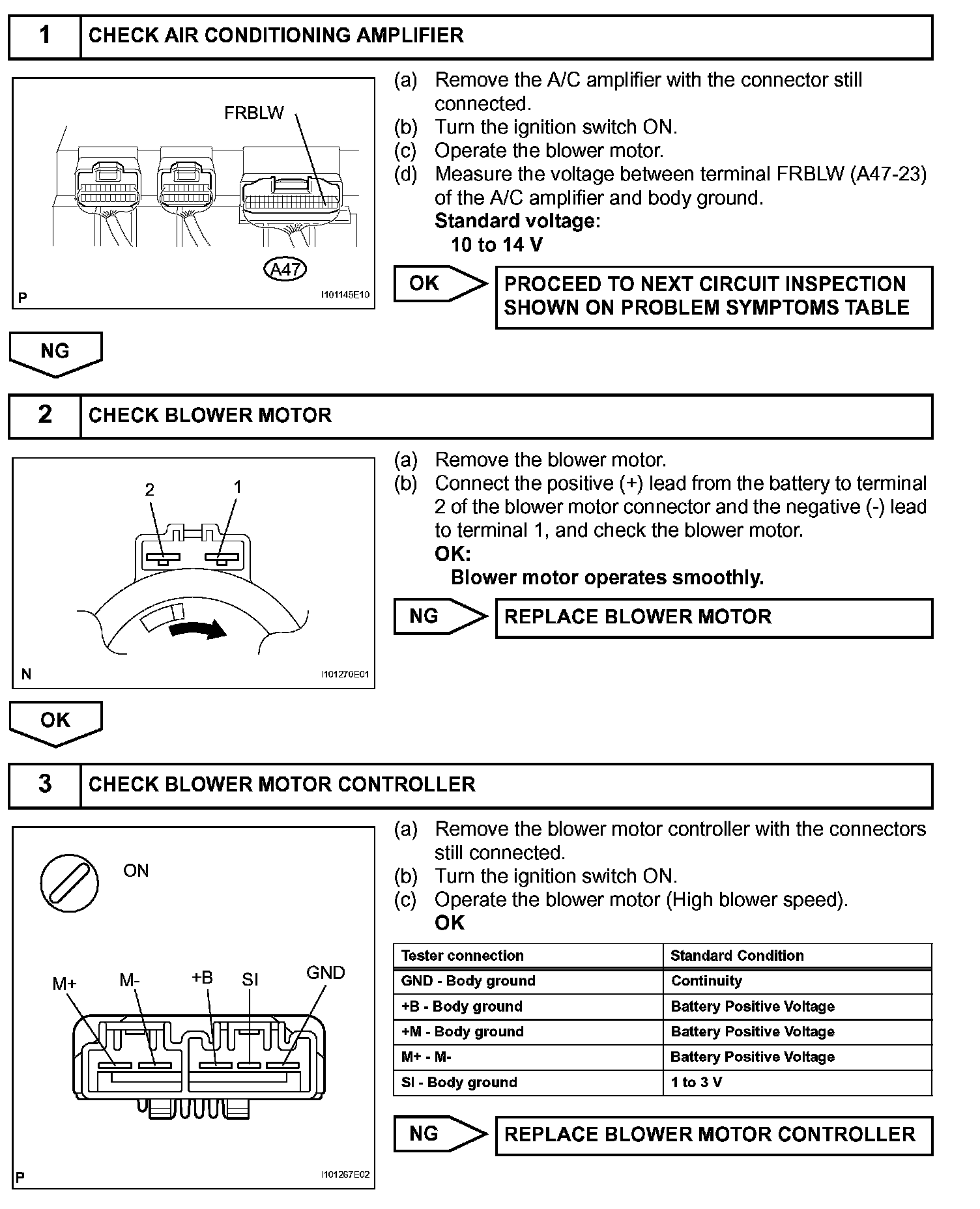

Step 1-3:

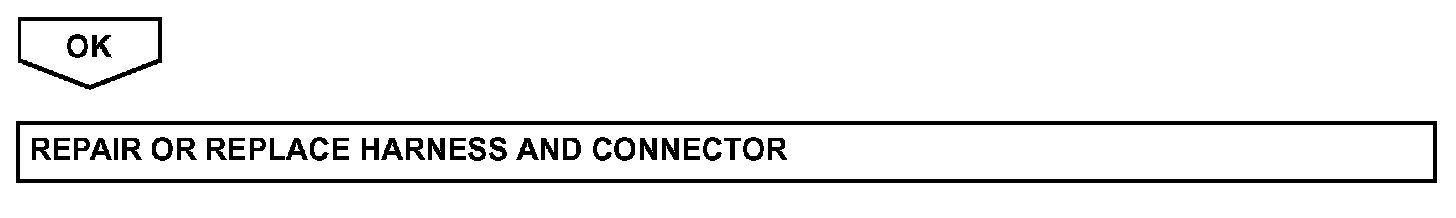

Step 3 (Continued):
