Back-Up Power Source Circuit

Back-up Power Source Circuit

DESCRIPTION

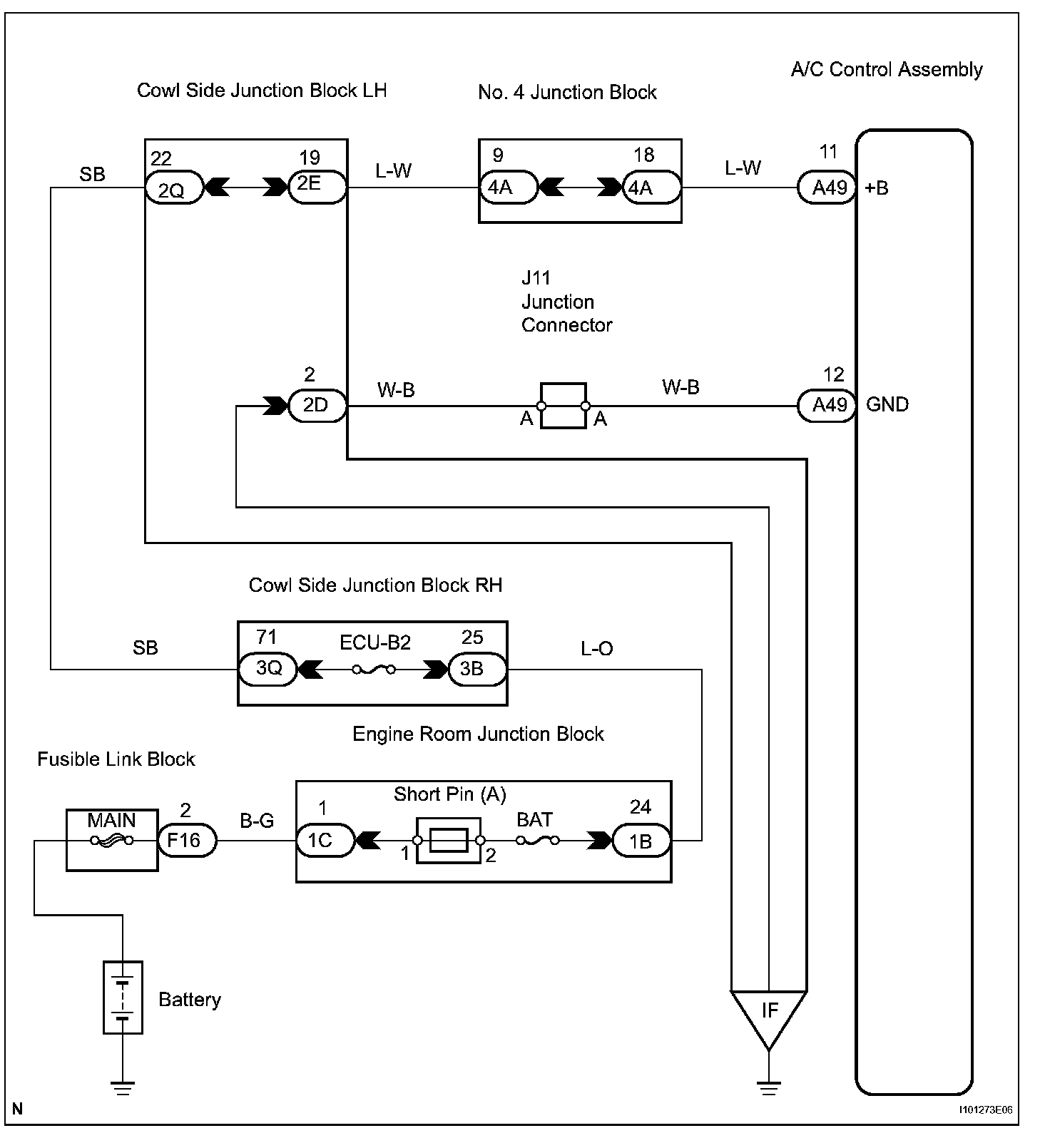

This is the back-up power source for the A/C amplifier. Power is supplied even when the ignition switch is OFF and is used for diagnostic trouble code memory, etc.
