Removal and Replacement

AIR REFINER ELEMENT

REMOVAL

1. REMOVE GLOVE COMPARTMENT DOOR SUBASSEMBLY
2. REMOVE NO. 2 FINISH PANEL LOWER

3. REMOVE AIR REFINER FILTER

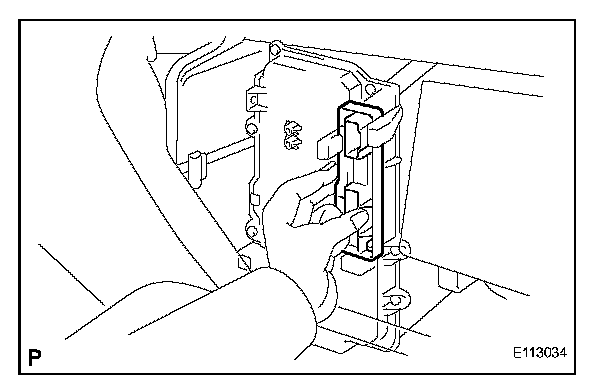

a. Release the 2 claws and remove the filter cover.

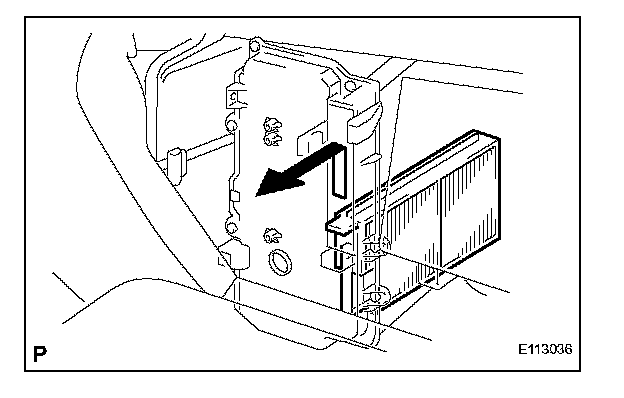

b. Pull out the air refiner filter (upper side).




c. Pull out the filter upward, and then pull out the air refiner filter (lower side).

INSTALLATION
Installation is in the reverse order of removal.
