Water Pump: Service and Repair

WATER PUMP

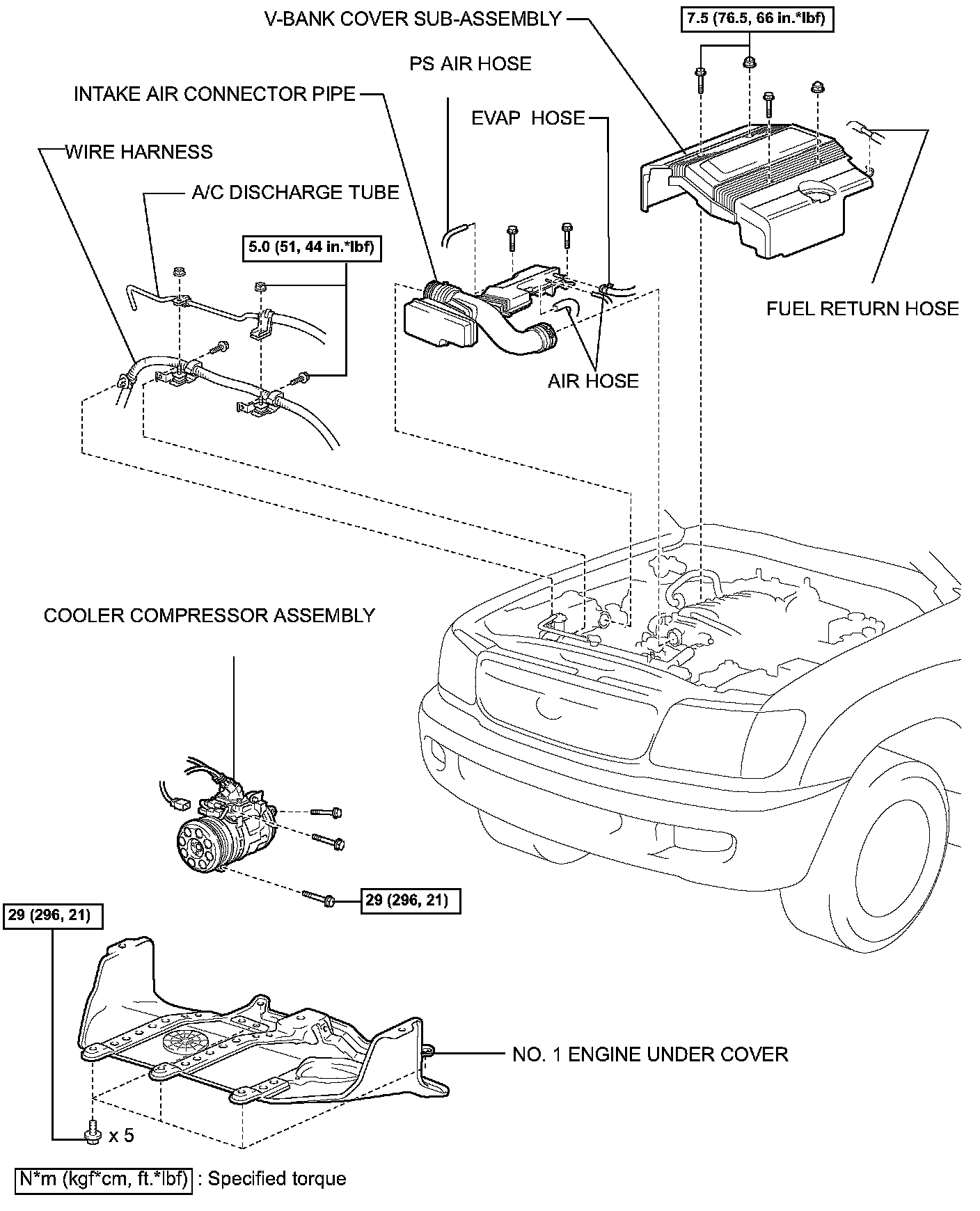

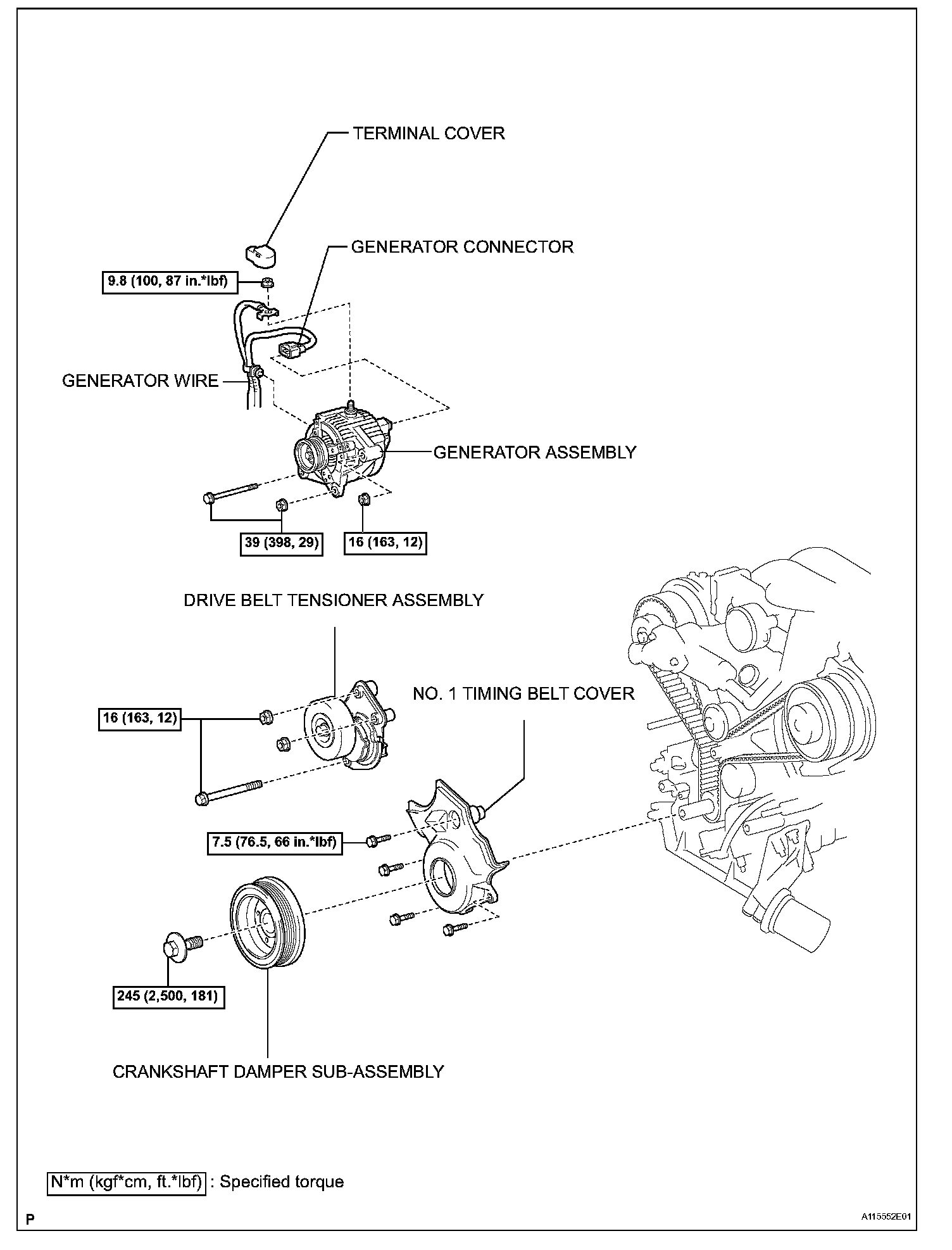

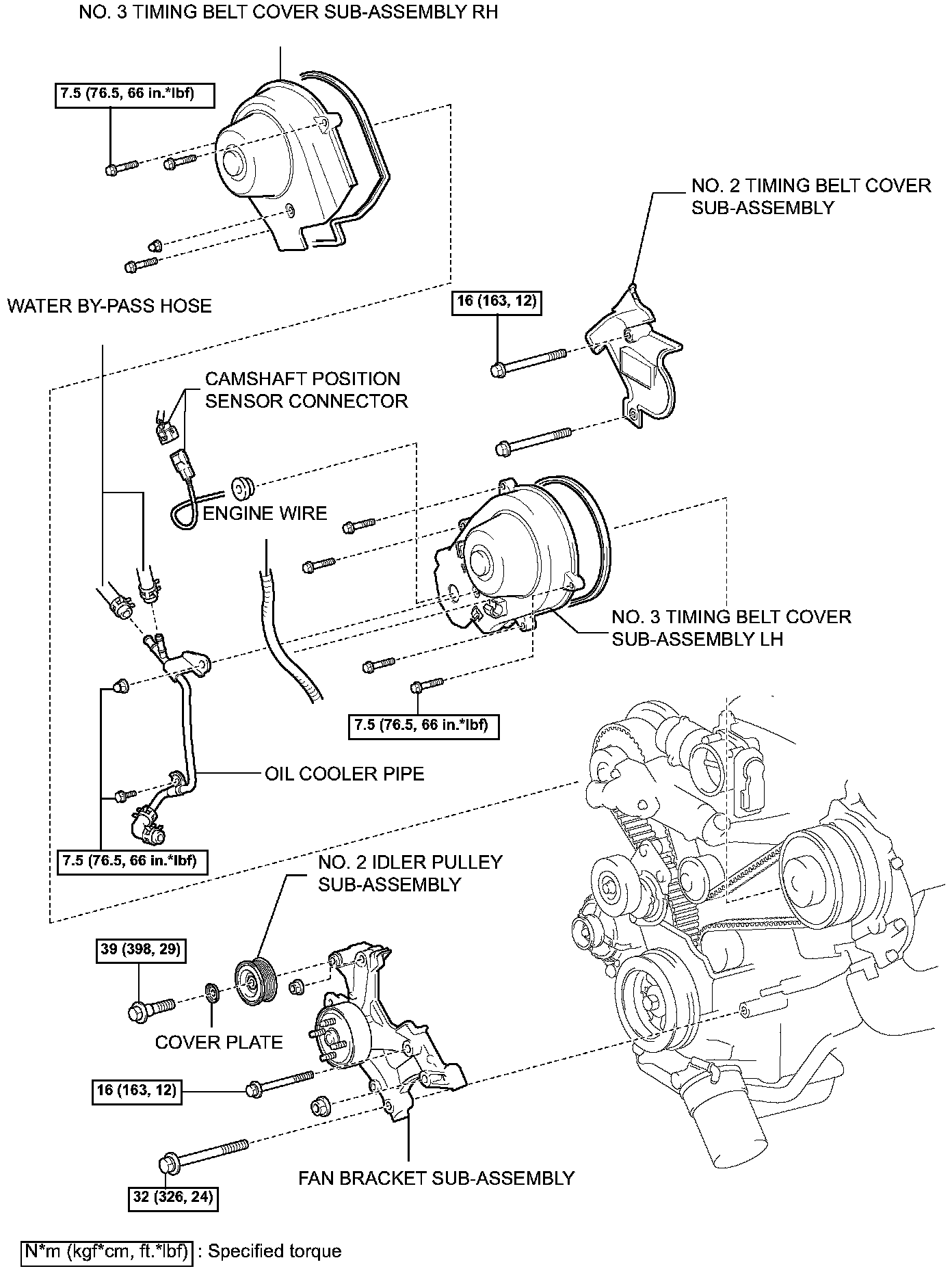

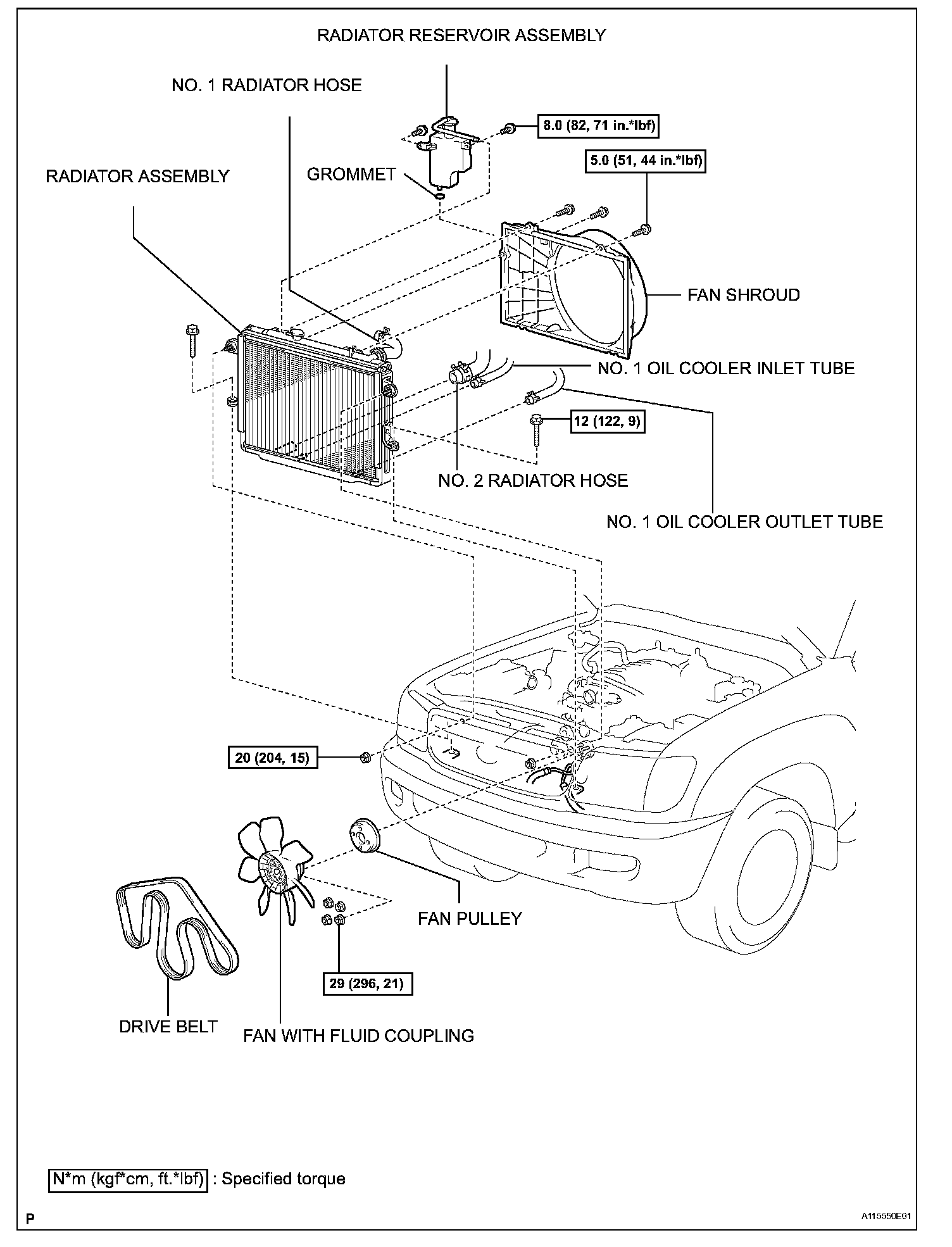

COMPONENTS:

REMOVAL
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 ENGINE UNDER COVER
3. DRAIN ENGINE COOLANT
4. REMOVE V-BANK COVER SUB-ASSEMBLY
5. REMOVE INTAKE AIR CONNECTOR PIPE
6. REMOVE COOLER COMPRESSOR ASSEMBLY
7. REMOVE DRIVE BELT
8. REMOVE RADIATOR ASSEMBLY
a. Remove the radiator assembly.
9. REMOVE OIL COOLER PIPE
10. REMOVE TIMING BELT
a. Remove the timing belt.
11. REMOVE NO. 2 TIMING BELT IDLER PULLEY SUB-ASSEMBLY
a. Remove the bolt and idler pulley.

12. REMOVE WATER INLET HOUSING
a. Disconnect the water by-pass hose from the water inlet housing.

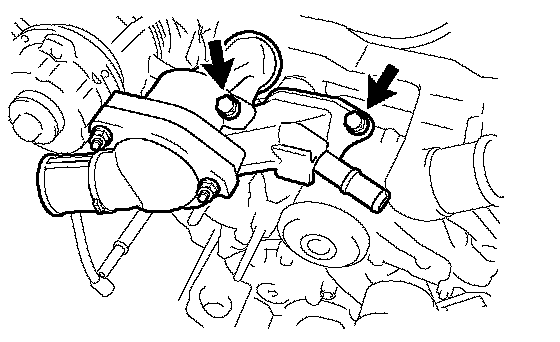

b. Remove the 2 bolts holding the water inlet housing to the water pump.
c. Disconnect the water inlet housing from the front water by-pass joint, and remove the water inlet and inlet housing.

13. REMOVE WATER PUMP ASSEMBLY

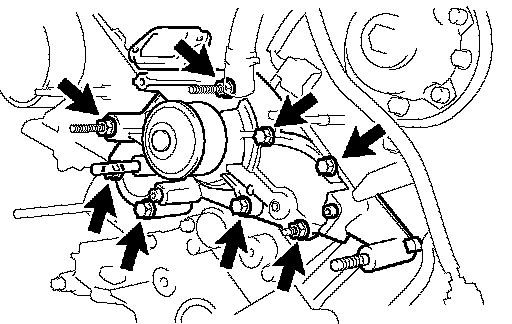

a. Remove the 5 bolts, 2 stud bolts, nut, water pump and gasket.

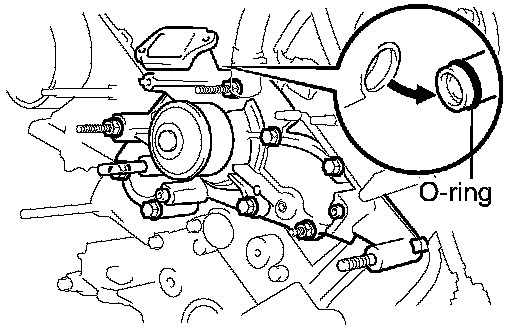

b. Remove the O-ring from the water by-pass pipe.

INSTALLATION
1. INSTALL WATER PUMP ASSEMBLY

a. Install a new O-ring to the water by-pass pipe end.
b. Apply soapy water to the O-ring.
c. Connect the water pump to the water by-pass pipe end.

d. Install the water pump and a new gasket with the 5 bolts, 2 stud bolts and nut. Uniformly tighten the bolts, stud bolts and nut in several passes.
Torque: 21 Nm (214 kgf-cm, 15 ft. lbs.) for bolt
18 Nm (194 kgf-cm, 24 ft. lbs.) for nut and stud bolt

HINT: Use bolts 35 mm (1.38 inch) in length.

2. INSTALL WATER INLET HOUSING
a. Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the water inlet housing and water pump.

HINT:
^ Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing groove.
^ Thoroughly clean all components to remove all the loose material.
^ Using a non-residue solvent, clean both sealing surfaces.

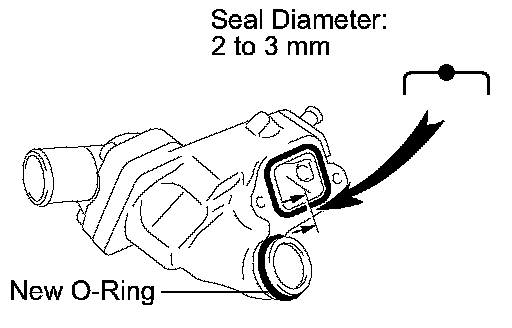

b. Apply seal packing to the sealing groove of the water inlet housing as shown in the illustration.
Seal packing: Part No. 08826-00100 or equivalent
Seal diameter: 2 to 3 mm (0.078 to 0.118 inch)

HINT:
^ Use a nozzle that has opening of 2 to 3 mm (0.08 to 0.12 inch).
^ Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied.
^ Immediately remove nozzle from the tube and reinstall cap after application.

c. Install a new O-ring to the water inlet housing.
d. Apply soapy water on the O-ring.
e. Attach the water inlet housing end to the front water by-pass joint tube.

f. Install the water inlet and housing assembly with the 2 bolts. Alternately tighten the 2 bolts.
Torque: 18 Nm (184 kgf-cm, 13 ft. lbs.)

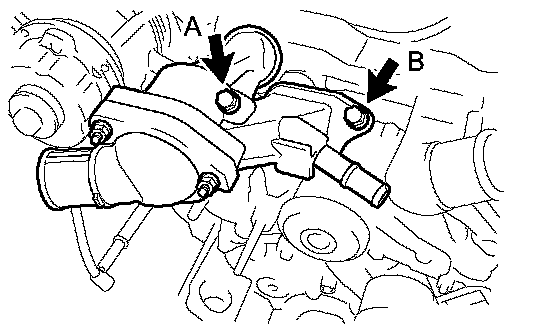

HINT: Each bolt length is indicated.

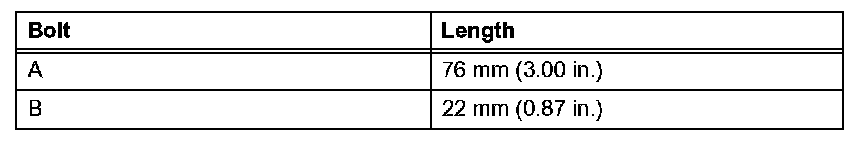

Standard Bolt Length:

3. INSTALL NO. 2 TIMING BELT IDLER PULLEY SUB-ASSEMBLY
a. Install the idler pulley with the bolt.
Torque: 34.5 Nm (352 kgf-cm, 25 ft. lbs.)
4. INSTALL TIMING BELT
a. Install the timing belt.
5. INSTALL OIL COOLER PIPE
6. INSTALL RADIATOR ASSEMBLY
a. Install the radiator assembly.
7. INSTALL DRIVE BELT
8. INSTALL COOLER COMPRESSOR ASSEMBLY
9. INSTALL INTAKE AIR CONNECTOR PIPE
10. INSTALL V-BANK COVER SUB-ASSEMBLY
11. ADD ENGINE COOLANT
12. INSTALL NO. 1 ENGINE UNDER COVER
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
14. PERFORM INITIALIZATION
a. Perform initialization.

NOTICE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

15. CHECK FOR ENGINE COOLANT LEAKS
a. Check for engine coolant leaks.
