Home >> Lexus Truck >> 2007 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Hood >> Hood Latch Release Cable

Hood Latch Release Cable

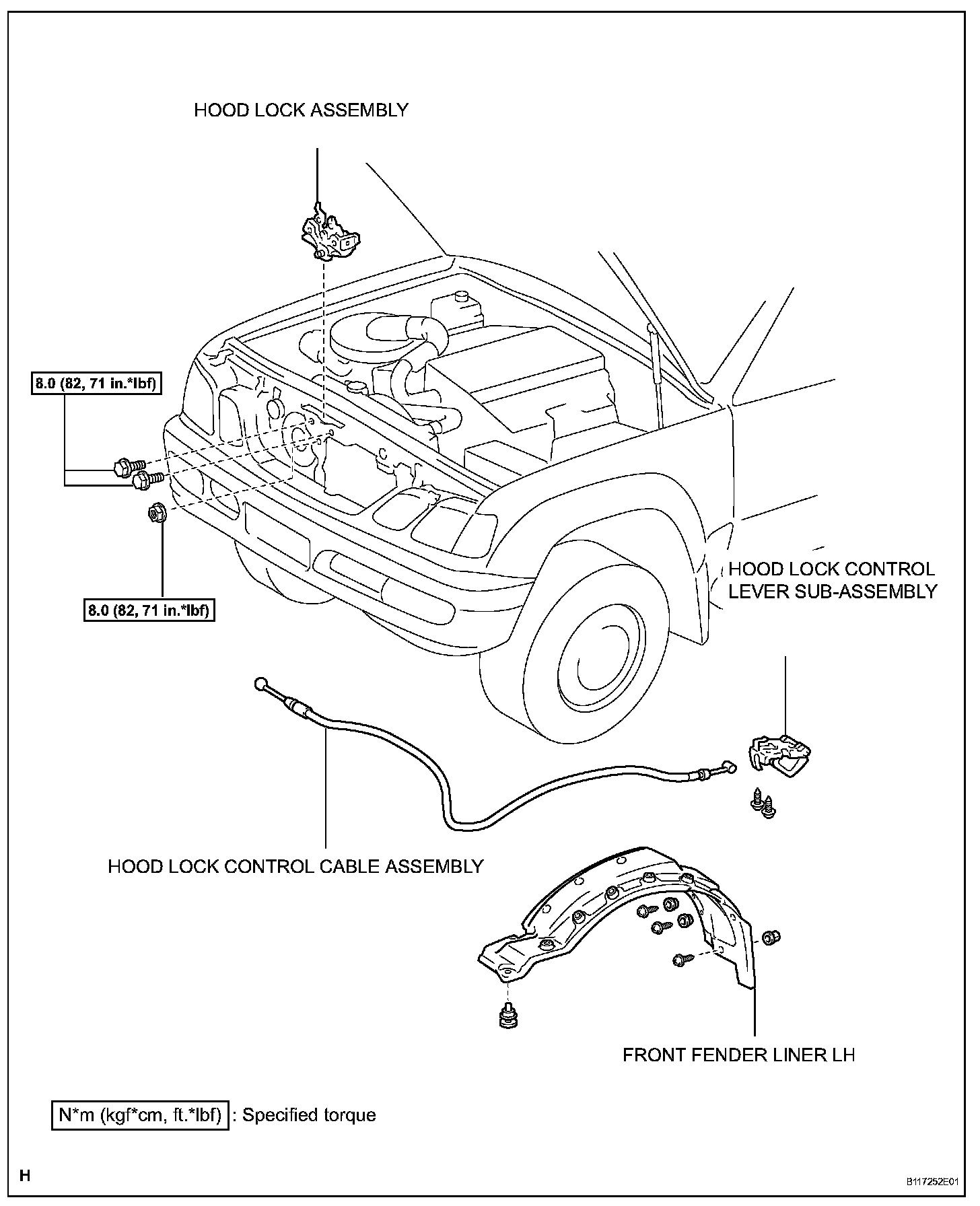

Hood Lock Control Cable Assembly:
