Road Test

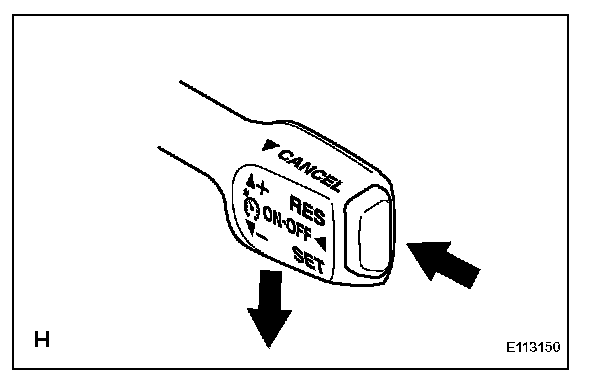

ROAD TEST1.INSPECT SET SWITCH
a. Push the main switch ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).
c. Press the control switch to the -/SET.
d. After releasing the switch, check that the vehicle cruises at the desired speed.

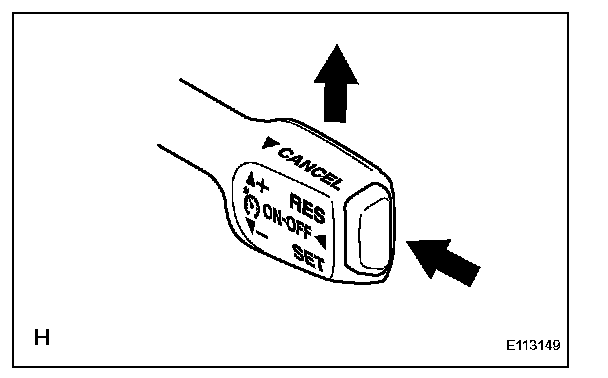

2. INSPECT "+" SWITCH
a. Push the main switch button to ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).
c. Press the control switch to the -/SET.
d. Check that the vehicle speed increases while the control switch is pulled up to +/RES, and that the vehicle cruises at the set speed when the switch is released.
e. Momentarily press the control switch upward to +/ RES and then immediately release it. Check that the vehicle speed increases by about 1.6 km/h (1 mph) (Tap-up function).

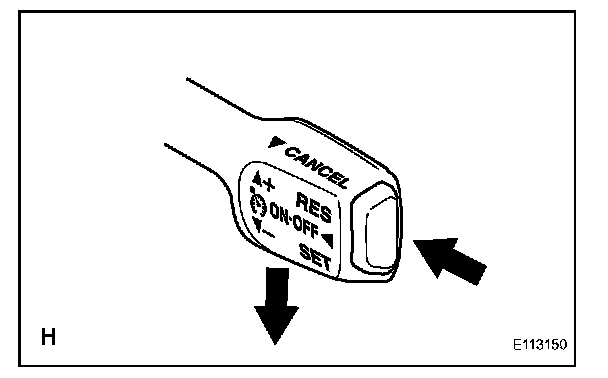

3. INSPECT "-" SWITCH
a. Push the main switch button to ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).
c. Press the control switch to the -/SET.
d. Check that the vehicle speed decreases while the control switch is pushed down to -/SET, and the vehicle cruises at the set speed when the switch is released.
e. Momentarily press the control switch downward to -/ SET, and then immediately release it. Check that the vehicle speed decreases by about 1.6 km/h (1 mph) (Tap-down function).

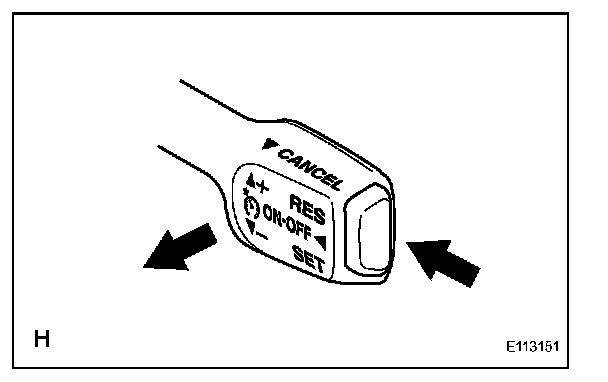

4. INSPECT CANCEL SWITCH
a. Push the main switch button to ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).
c. Press the control switch to the -/SET.
d. When operating one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
- Depress the brake pedal
- Shift to except D or 4 position
- Push the main switch button to OFF
- Push the cruise control switch to CANCEL

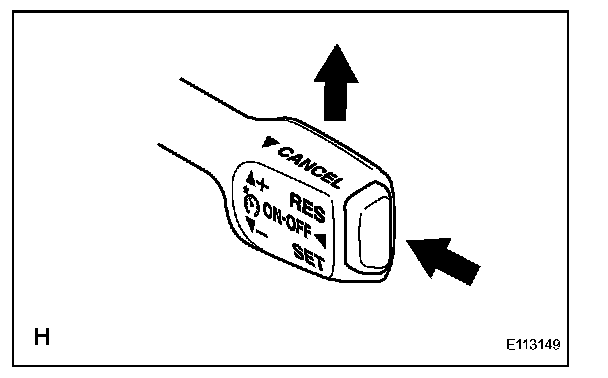

5. INSPECT RES (RESUME) SWITCH
a. Push the main switch button to ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).
c. Press the control switch to the -/SET.
d. When operating one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
- Depress the brake pedal
- Shift to except D or 4 position
- Push the cruise control switch to CANCEL
e. After the control switch is pulled up to +/RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed before the cancellation.
