VSC Warning Light Circuit (Remains On)

VSC Warning Light Remains ON

DESCRIPTION

When checking for a 2 digit DTC, the VSC TRAC warning light may remain on.

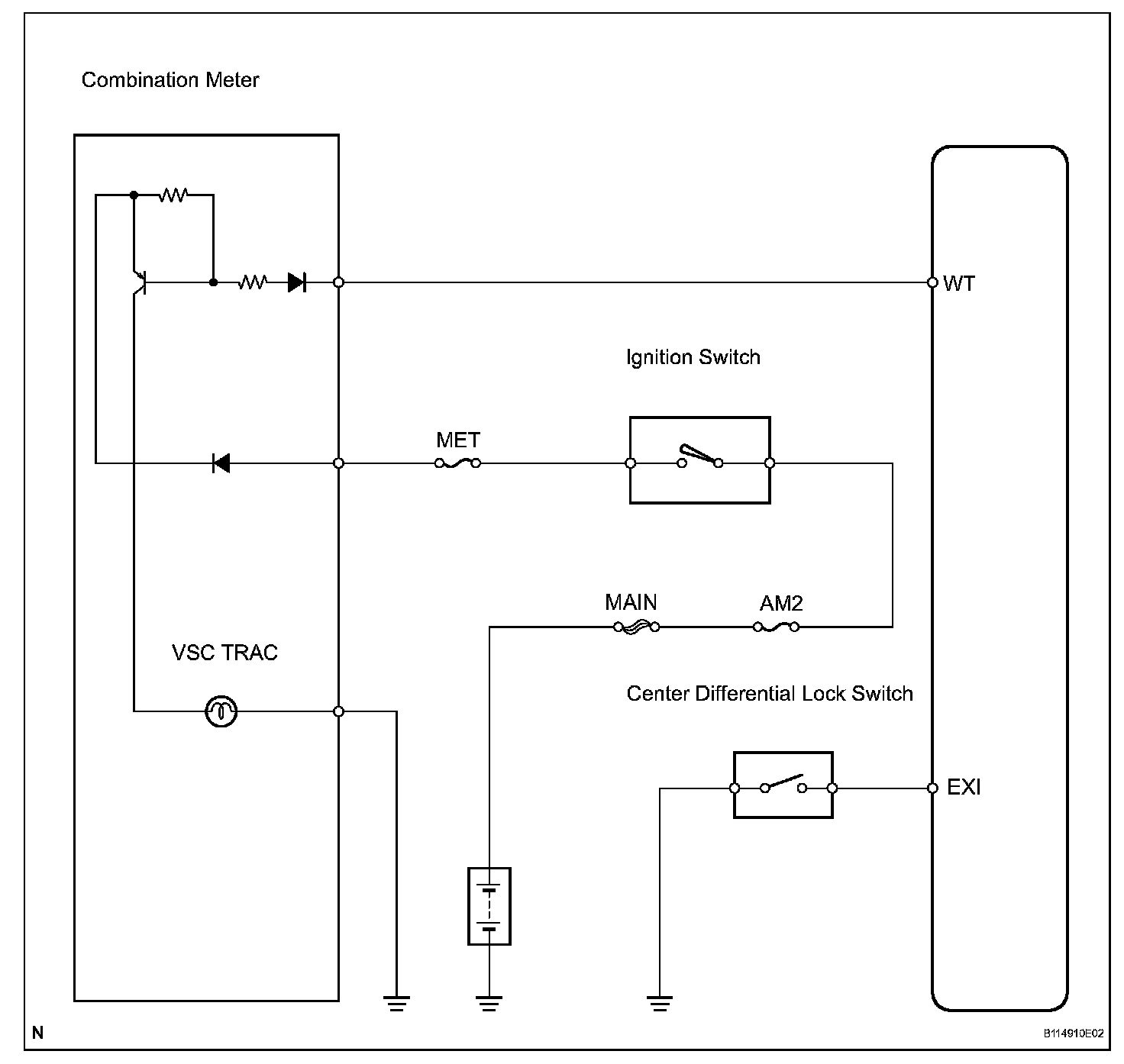

Wiring Diagram:

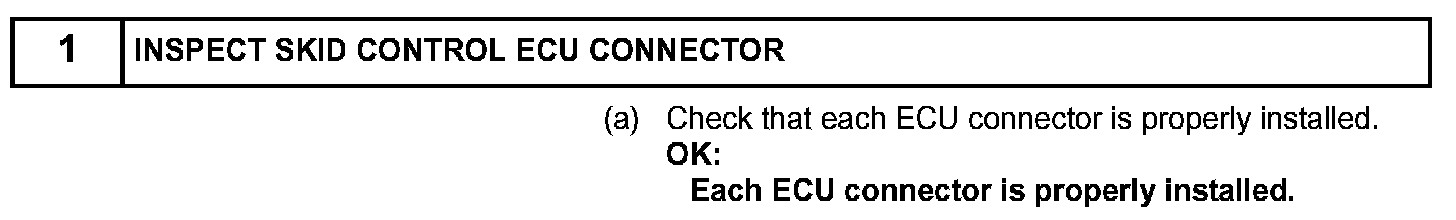

Step 1:

Step 1(Continued)-5:

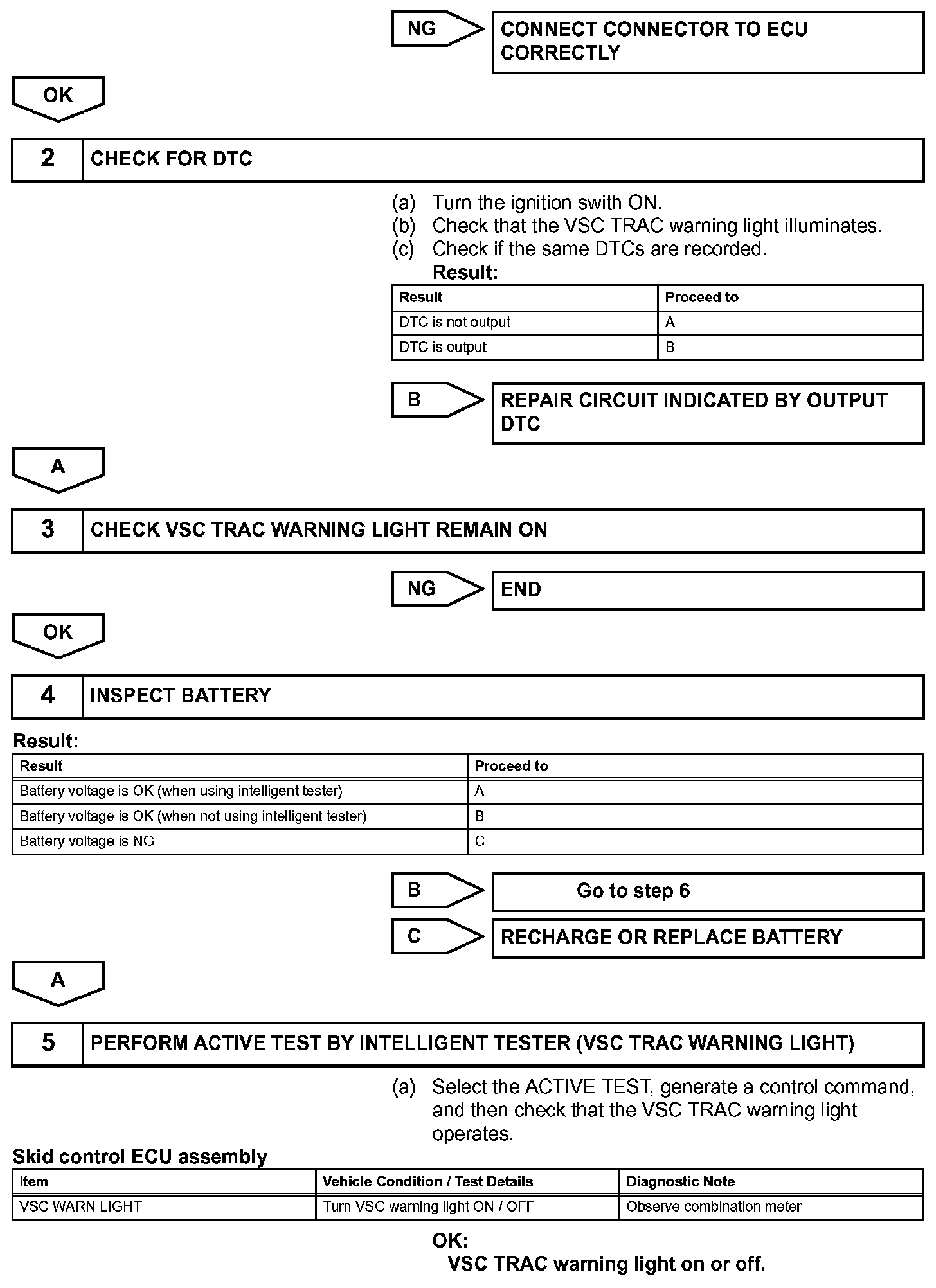

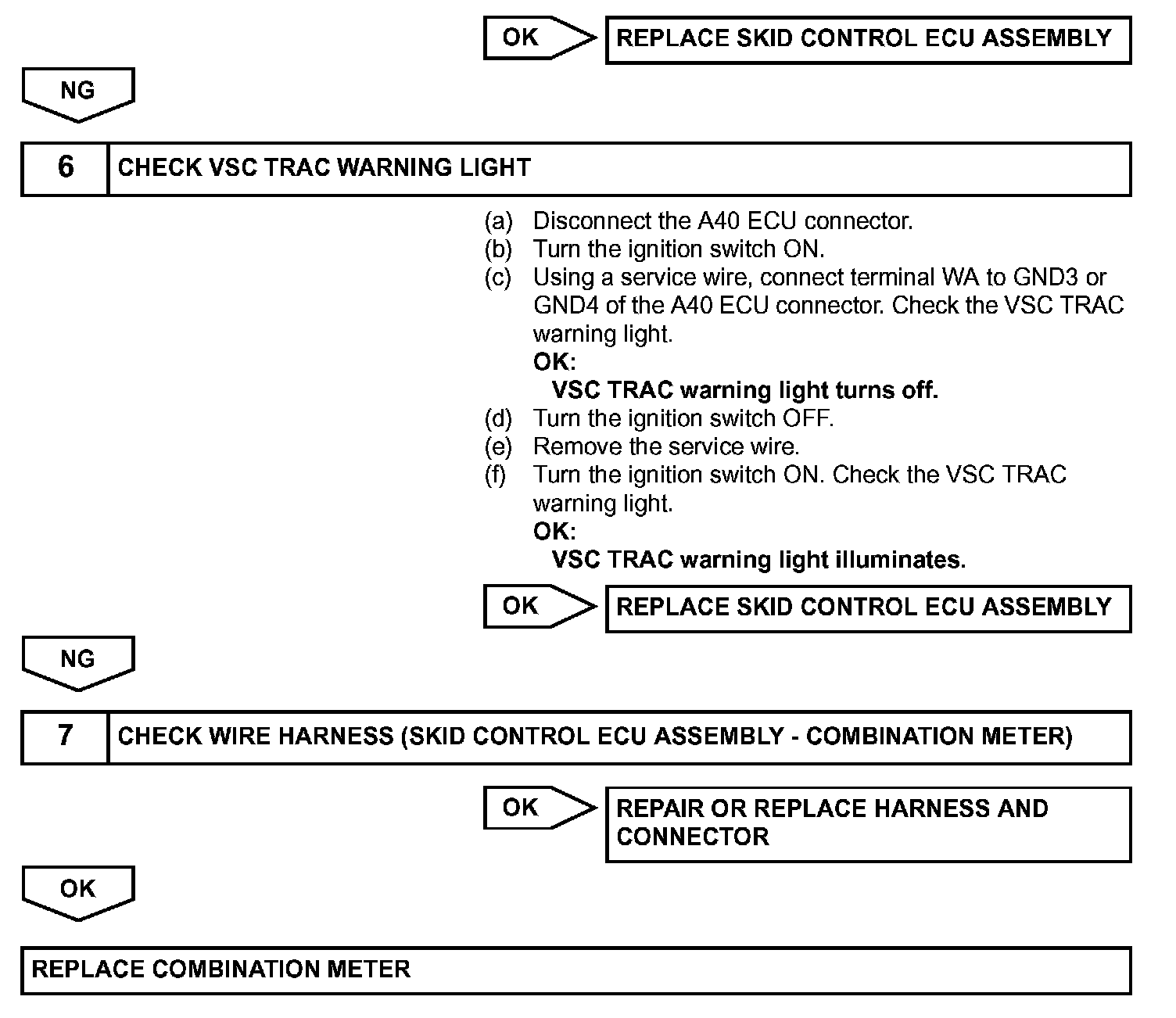

Step 5(Continued)-7:

INSPECTION PROCEDURE
