ABS Warning Light Circuit (Remains on)

ABS Warning Light Remains ON

DESCRIPTION

When checking for a 2 digit DTC, the ABS warning light may remain on.

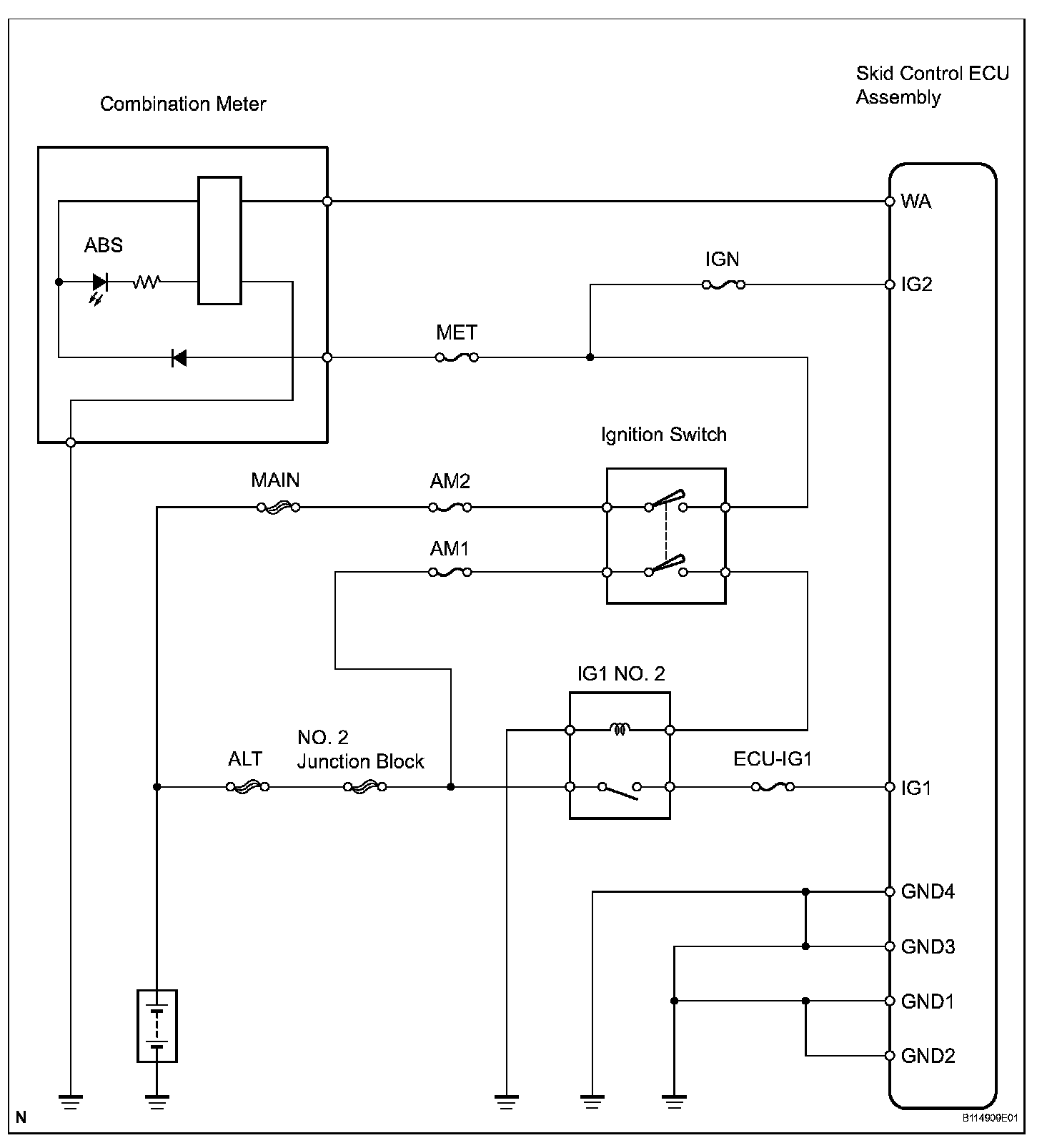

Wiring Diagram:

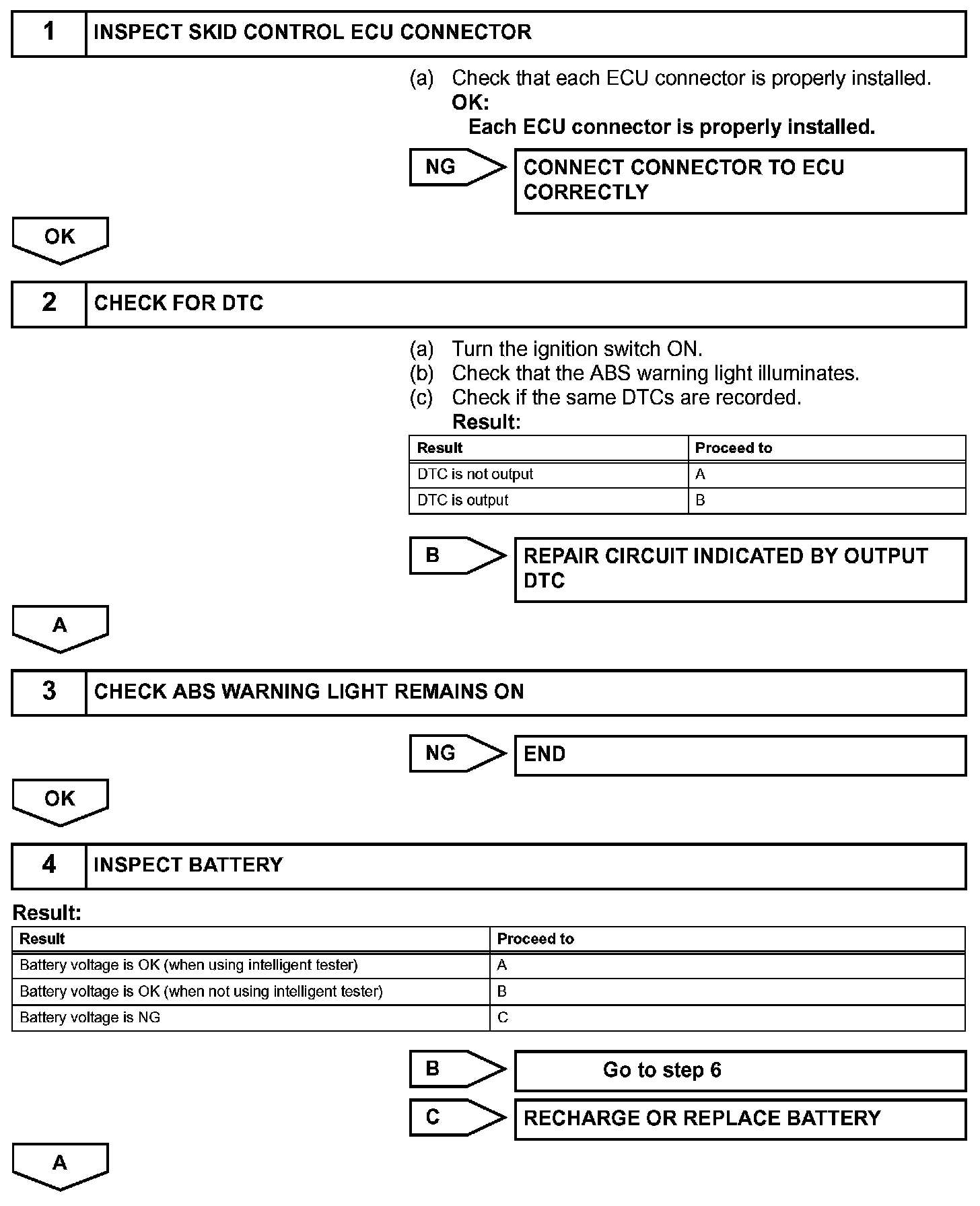

Step 1-4:

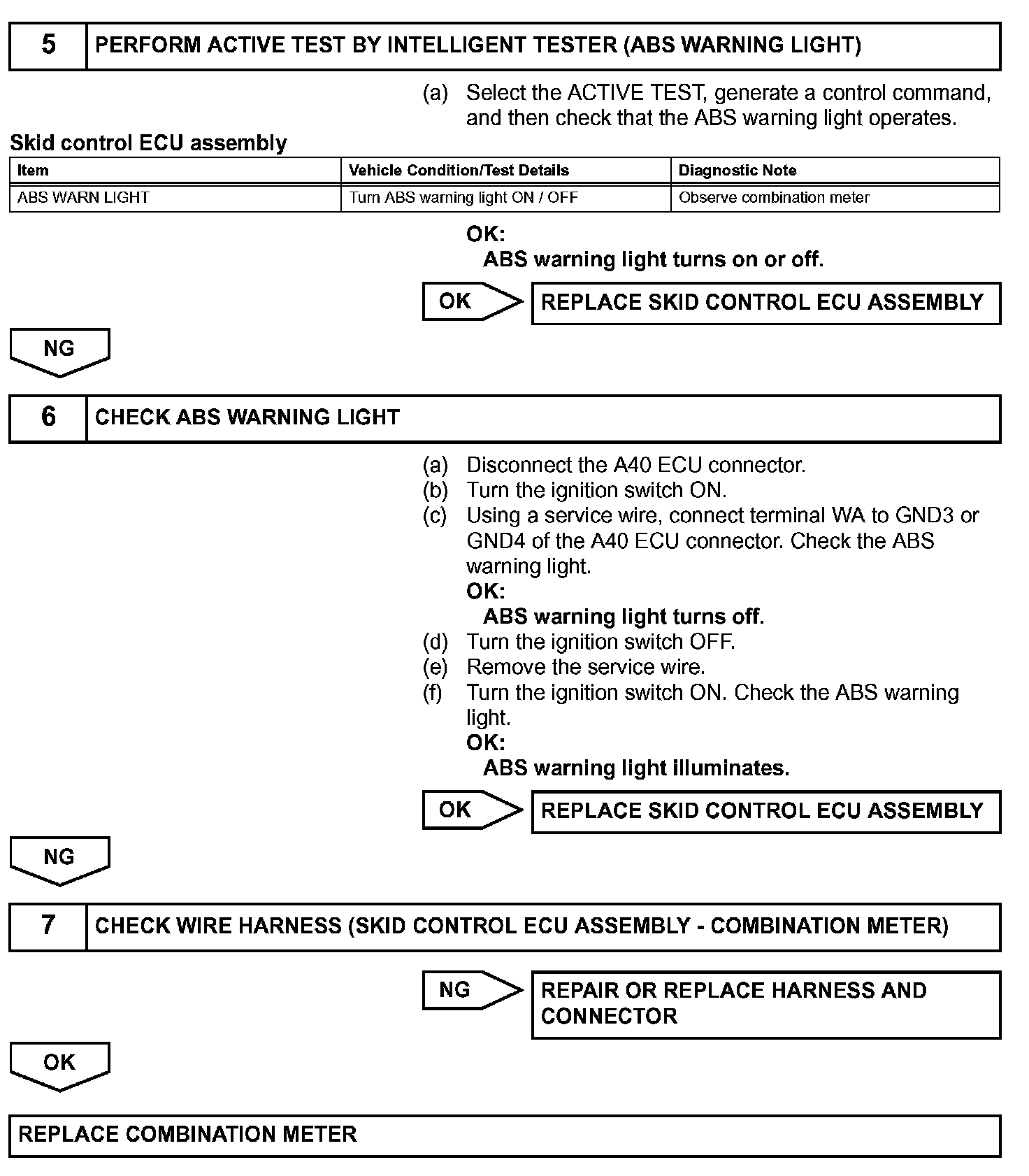

Step 5-7:

INSPECTION PROCEDURE
