Check DTC

CHECK DTC (When not using intelligent tester)

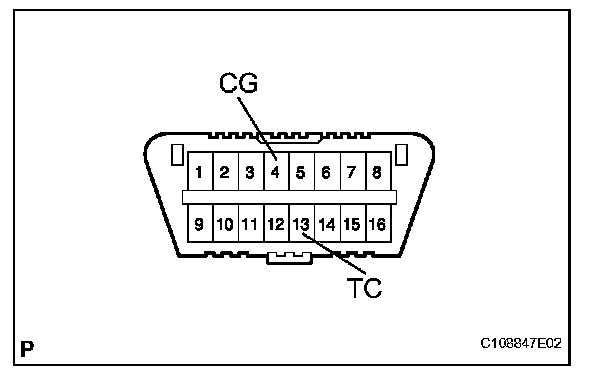

a. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST 09843-18040

b. Turn the ignition switch ON.




c. Read the DTC from the ABS warning light and VSC TRAC warning light on the combination meter.

HINT:
- If no code appears, check the TC terminal circuit, ABS warning light circuit or VSC TRAC warning light circuit.

Trouble Area
TC terminal circuit
ABS warning light circuit
VSC TRAC warning light circuit

- If more than 1 DTC is detected at the same time, the DTCs will be displayed.
- The blinking patterns for a normal system code and trouble codes 11 and 21 are shown in the illustration.
- Codes are explained in the Diagnostic Trouble Code.

d. After completing the check, disconnect terminals 13 (TC) and 4 (CG) of the DLC3, and turn the ignition switch OFF.
