VSC Warning Buzzer Circuit

VSC Buzzer Circuit

DESCRIPTION

The brake warning and VSC buzzer sounds while the accumulator pressure is abnormally low or an abnormality causing low fluid pressure occurs when the VSC is activated.

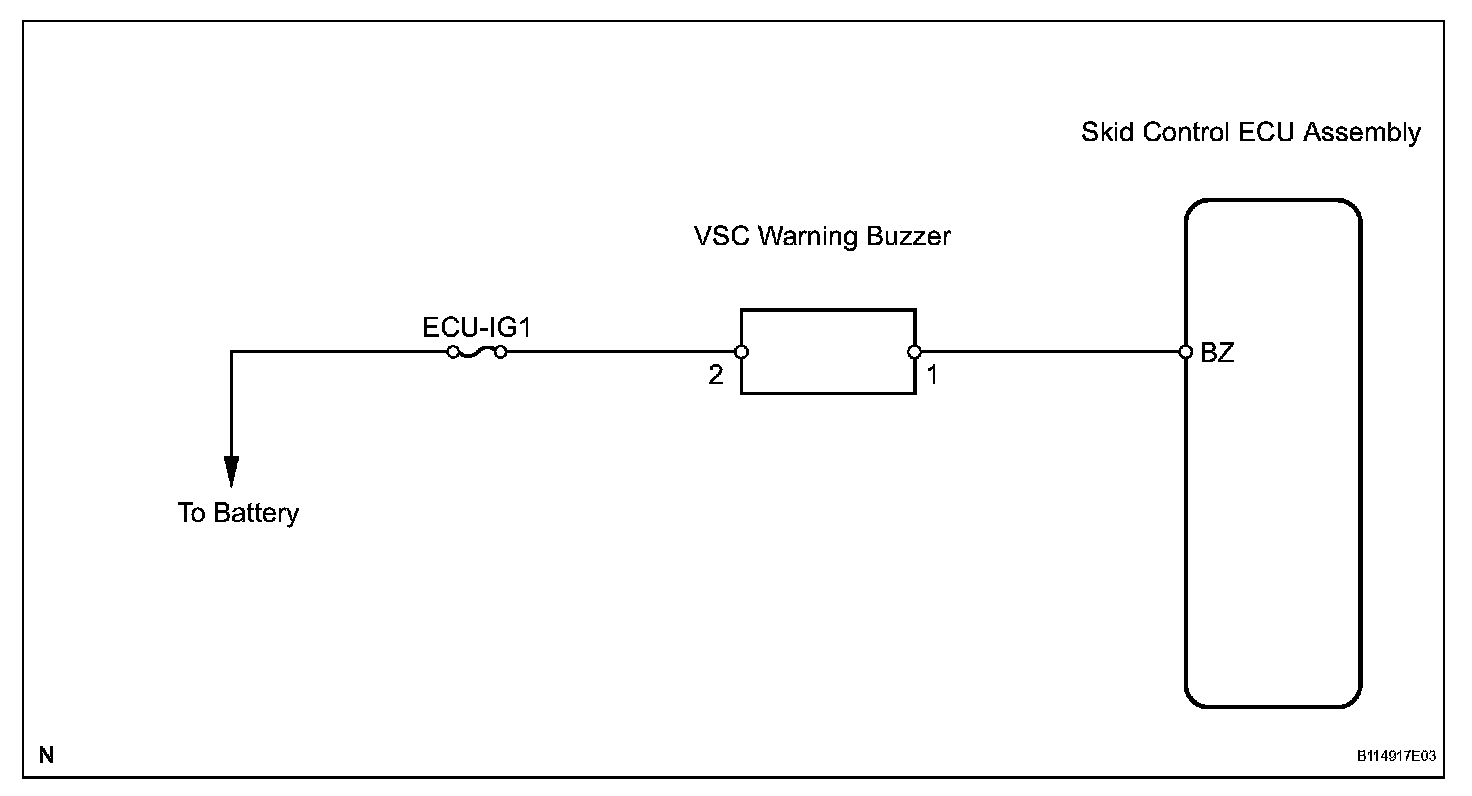

Wiring Diagram:

Step 1:

Step 2-3:

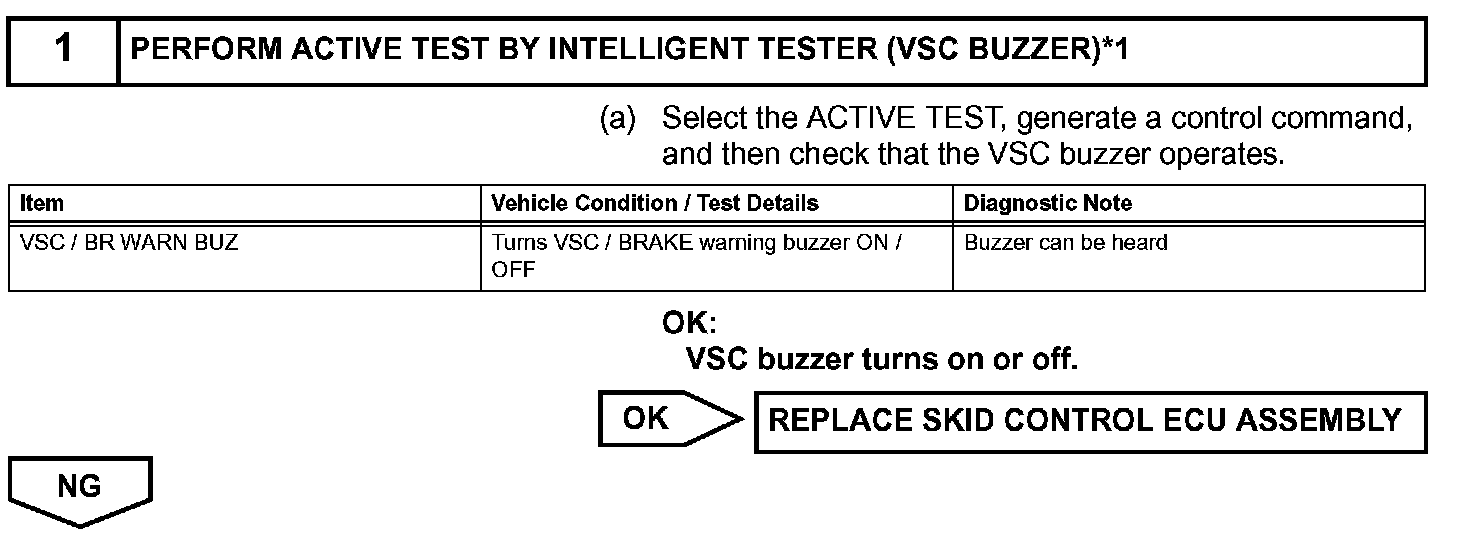

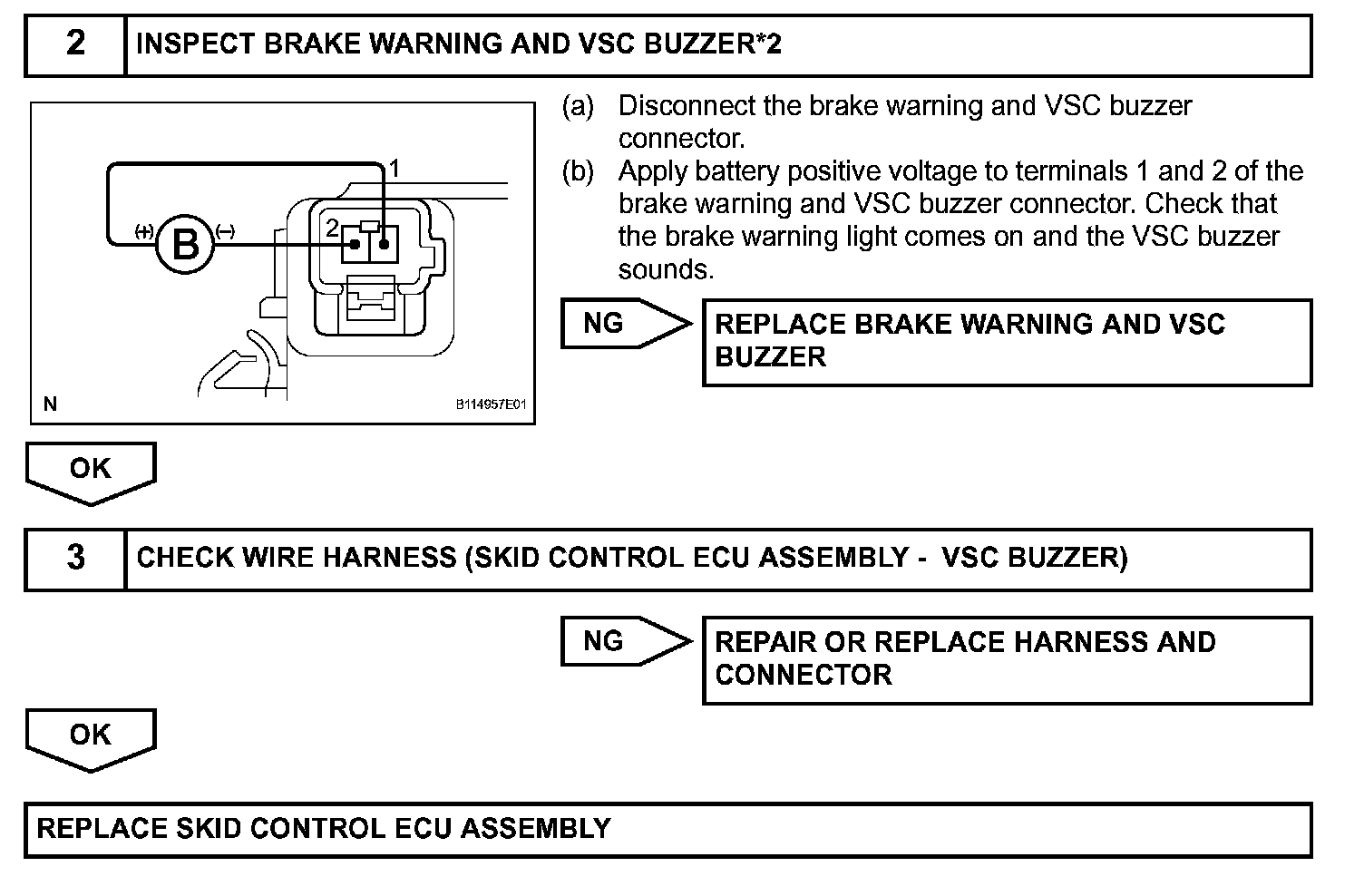

INSPECTION PROCEDURE

HINT: When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.
