VSC TRAC Warning Light Circuit

VSC TRAC Warning Light Circuit

DESCRIPTION

If the ECU stores DTC, the VSC TRAC warning light illuminates the combination meter.

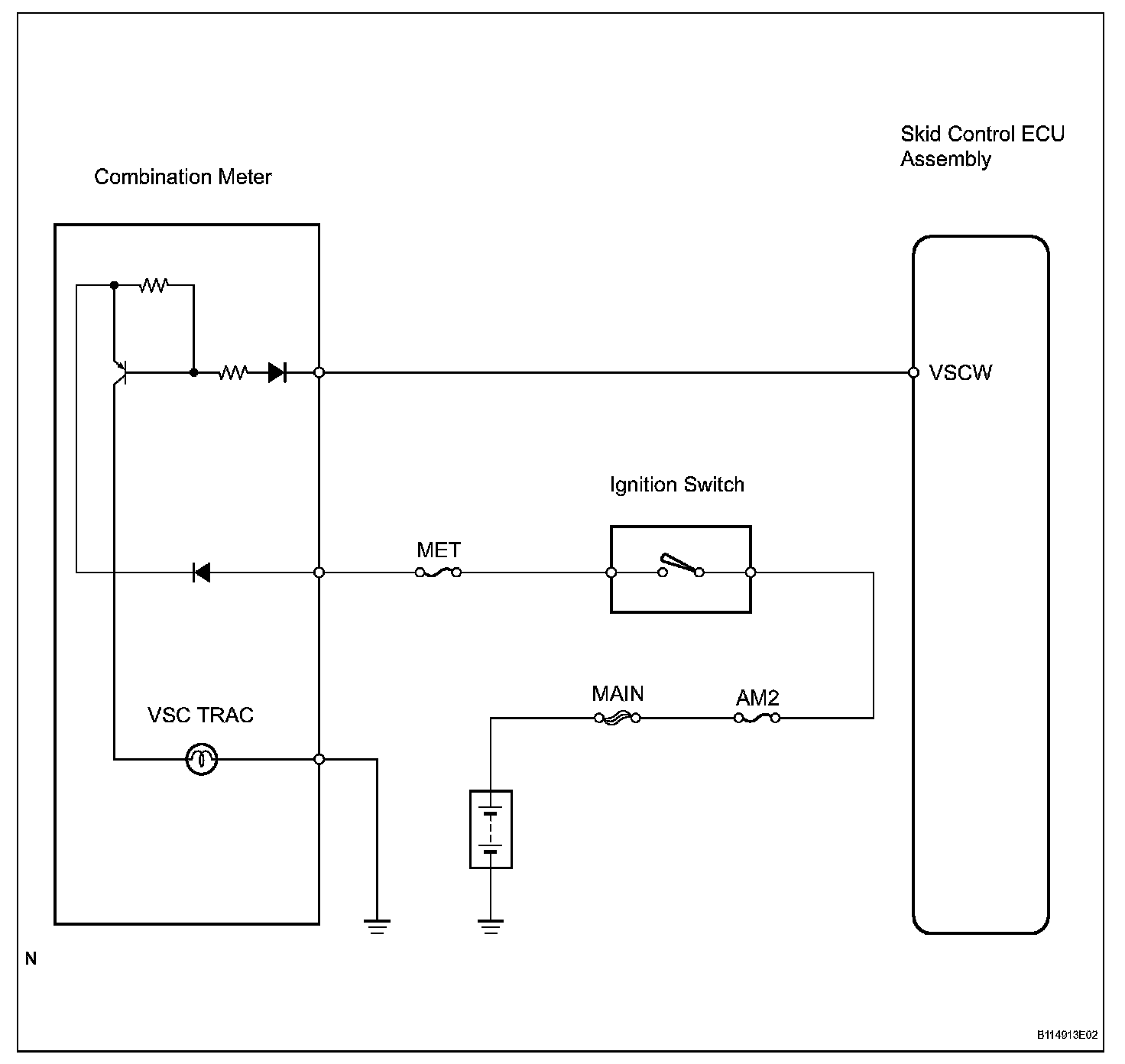

Wiring Diagram:

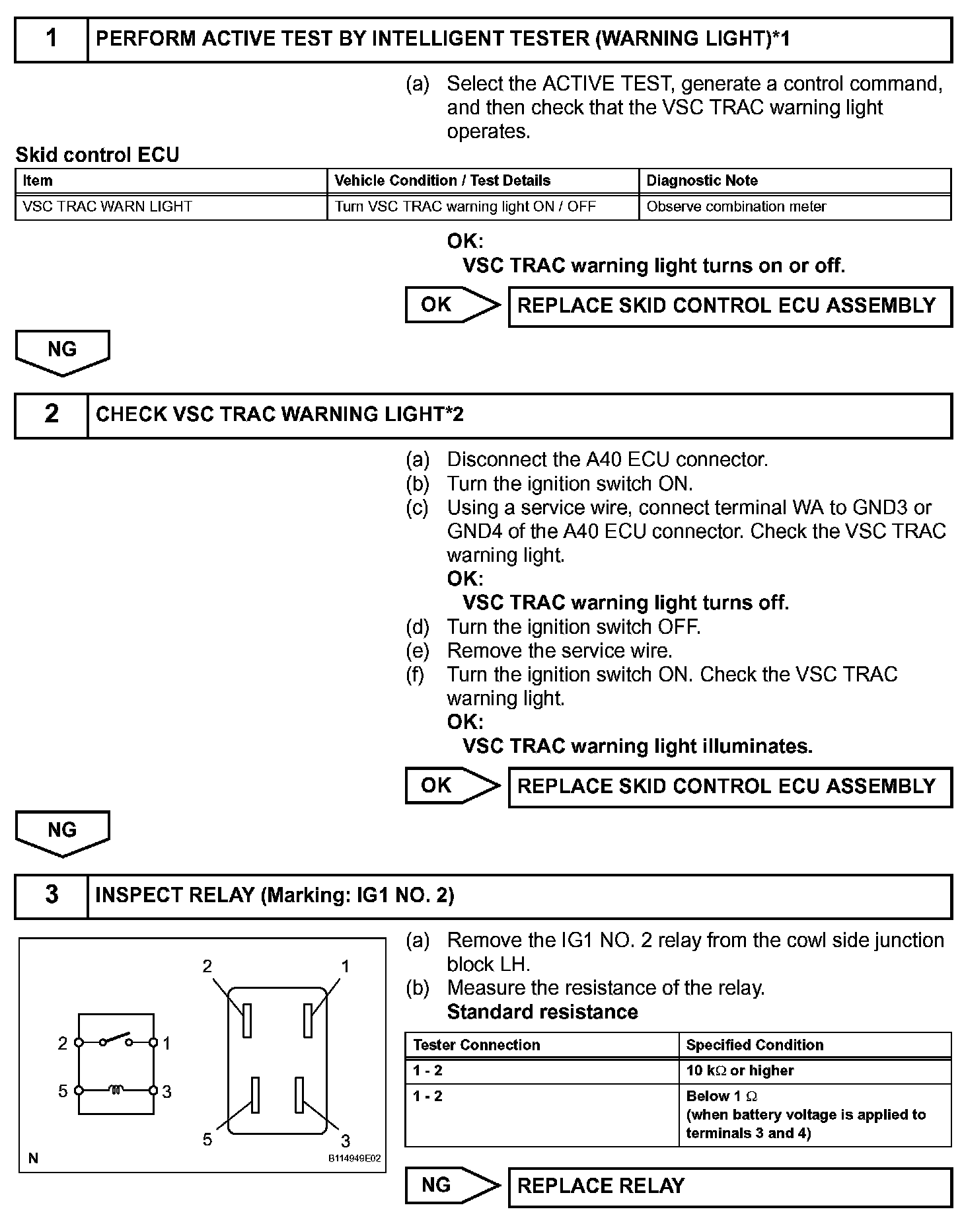

Step 1-3:

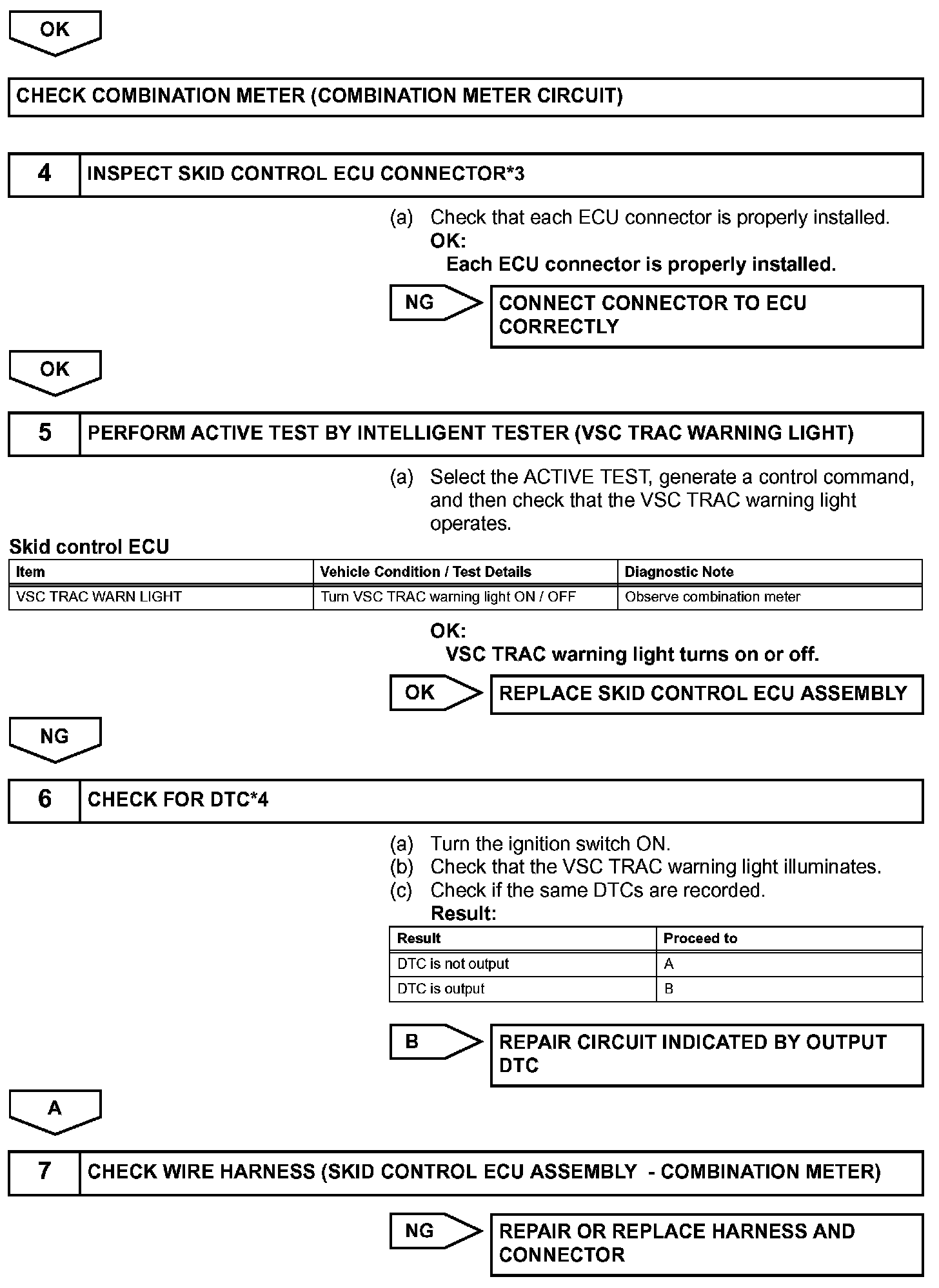

Step 3(Continued)-7:

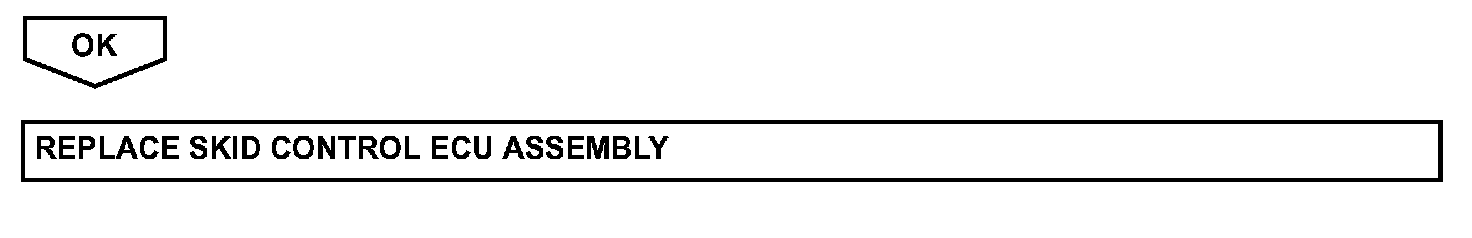

Step 7(Continued):

INSPECTION PROCEDURE

HINT:
- When using the intelligent tester, start form *1 if the VSC TRAC warning light does not light up, or start form *3 if the VSC TRAC warning light remains on.
- When not using the intelligent tester, start form *2 if the VSC TRAC warning light does not light up, or start form *4 if the VSC TRAC warning light remains on.
