VSC Off Indicator Light Circuit

VSC OFF Indicator Light Circuit

DESCRIPTION

This is the VSC control main switch. When the center differential is locked, VSC control goes off and the VSC OFF indicator light lights up.

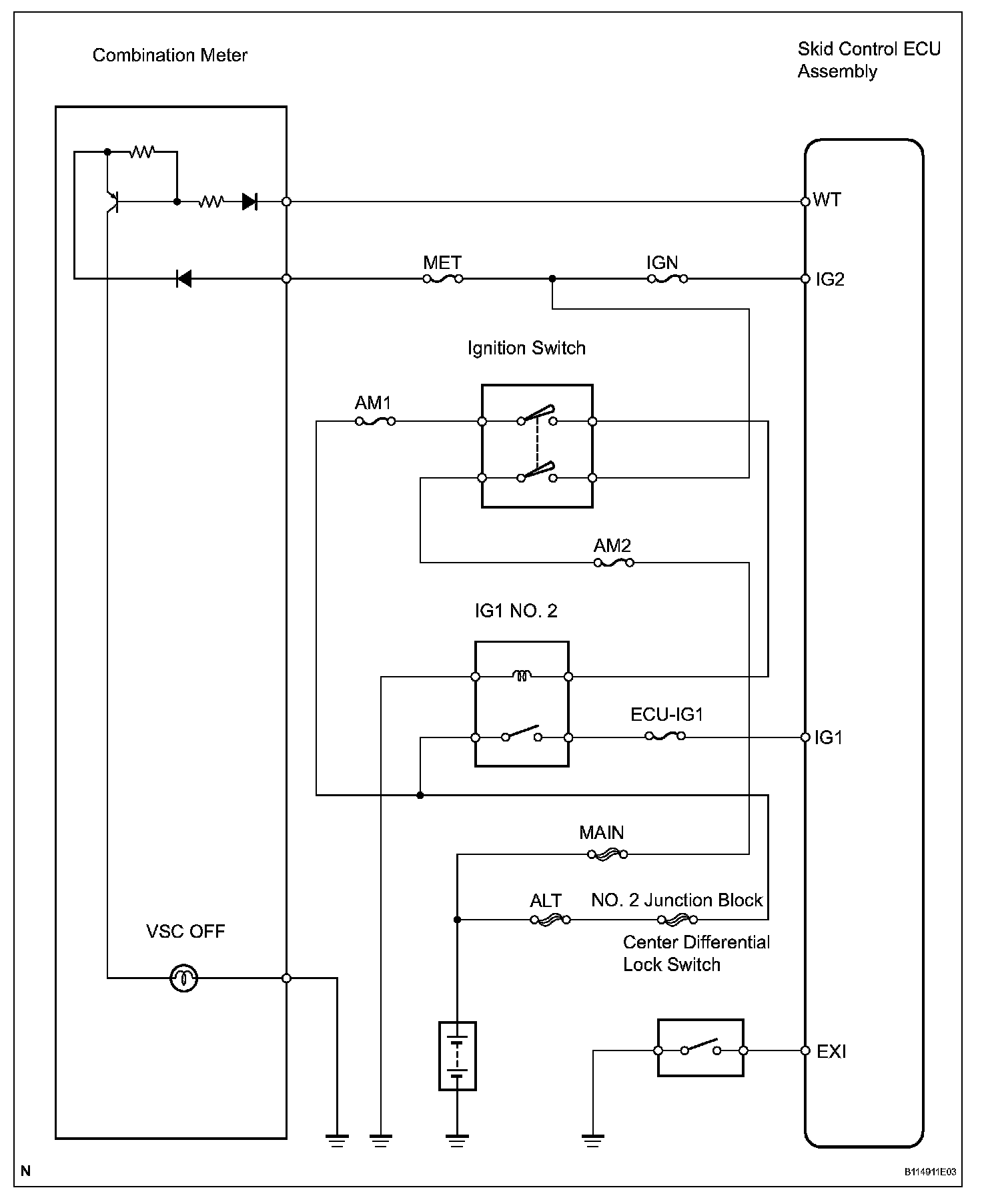

Wiring Diagram:

Step 1-3:

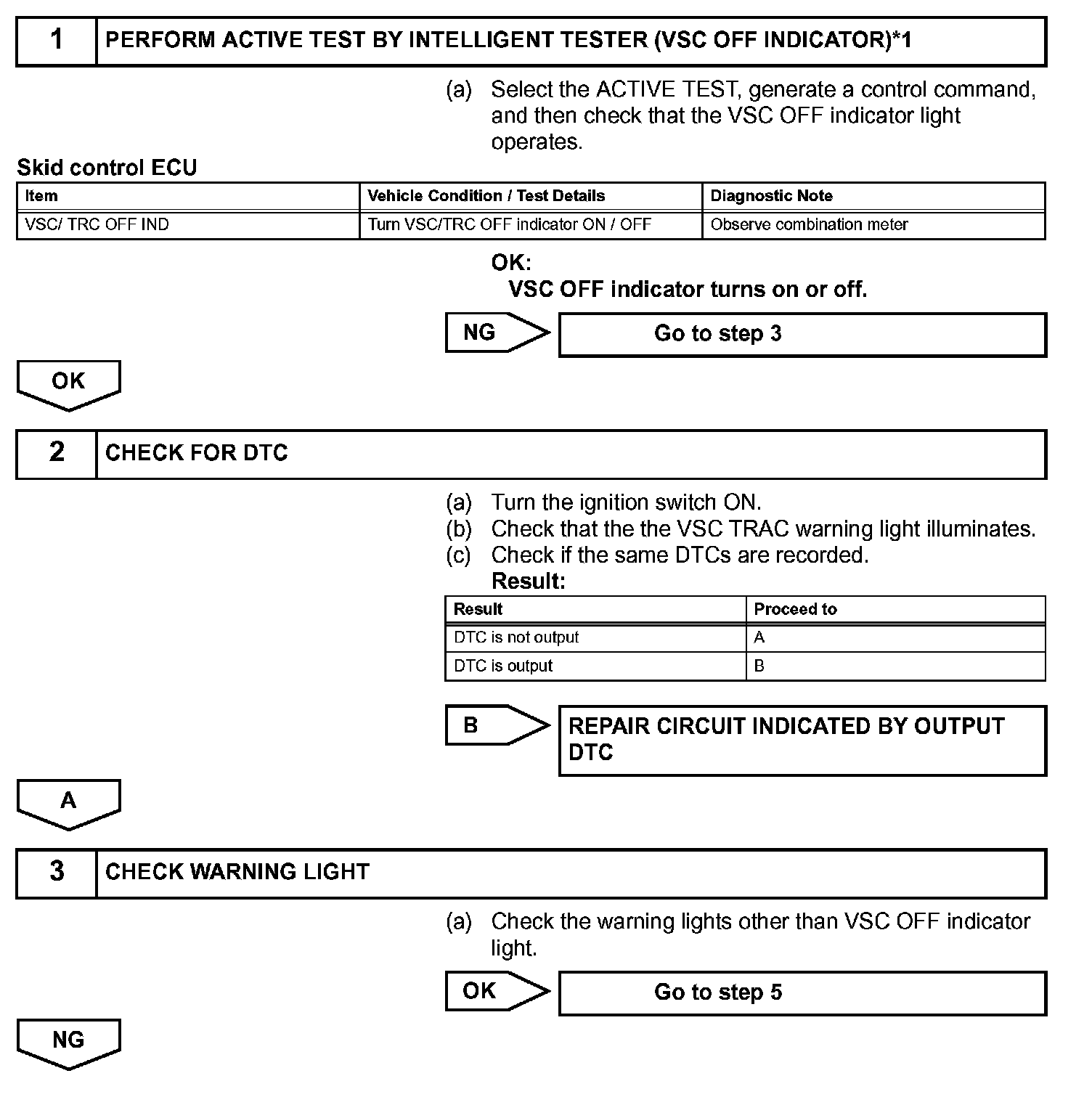

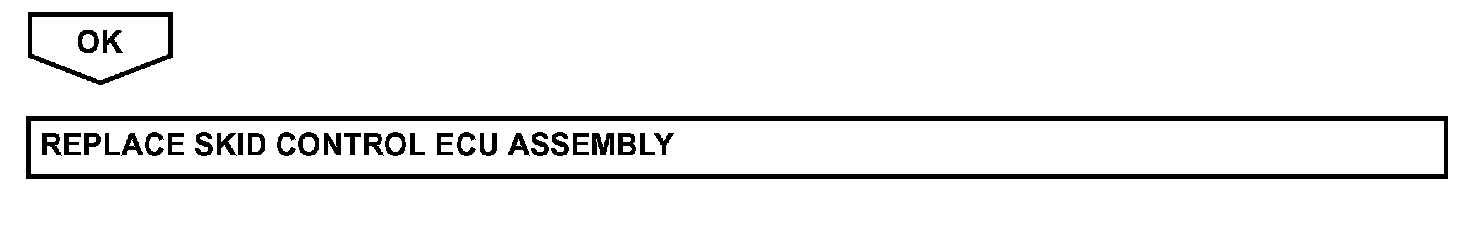

Step 4-8:

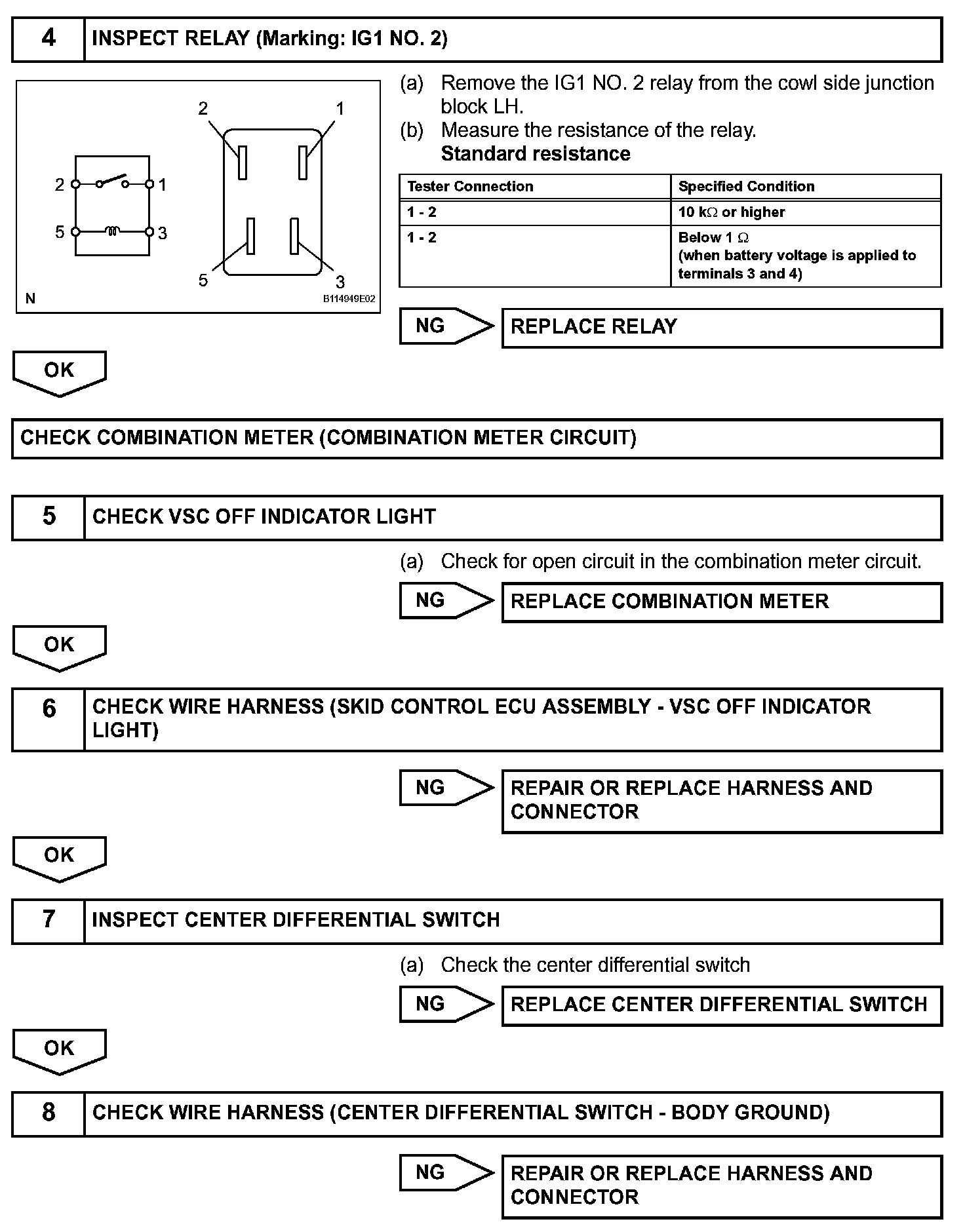

Step 8(Continued):

INSPECTION PROCEDURE

HINT: When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.
