Slip Indicator Lamp Circuit

Slip Indicator Light Circuit

DESCRIPTION

The SLIP indicator blinks during VSC operation.

Wiring Diagram:

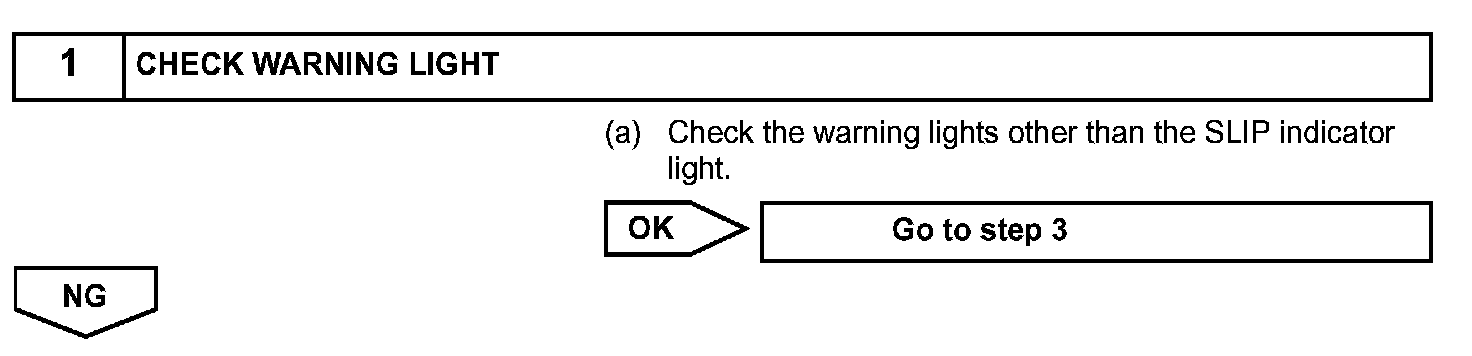

Step 1:

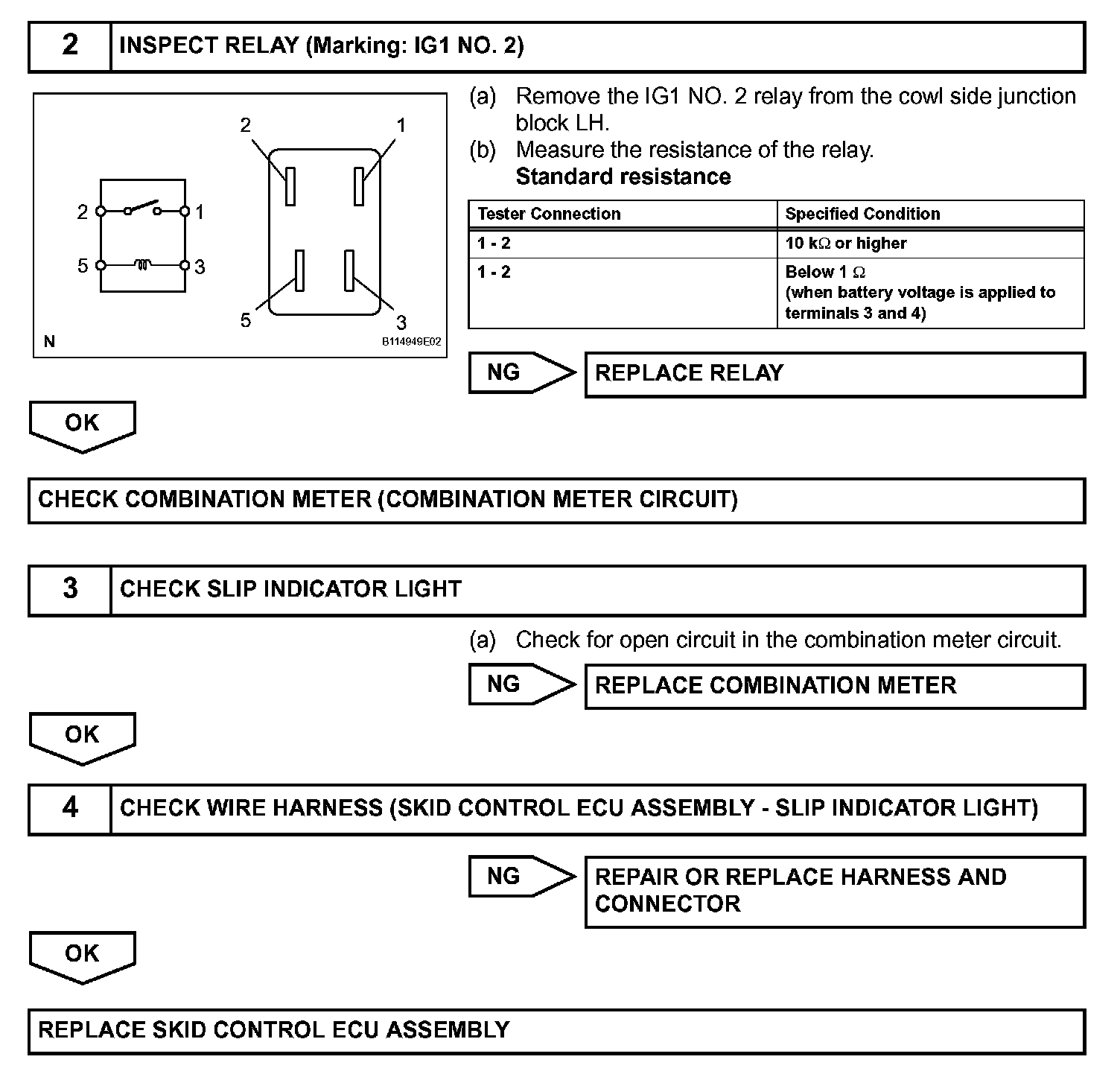

Step 2-4:




INSPECTION PROCEDURE
