Brake Warning Lamp Circuit

Brake Warning Light Circuit

DESCRIPTION

The BRAKE warning light lights up while the brake fluid is insufficient and EBD is abnormal.

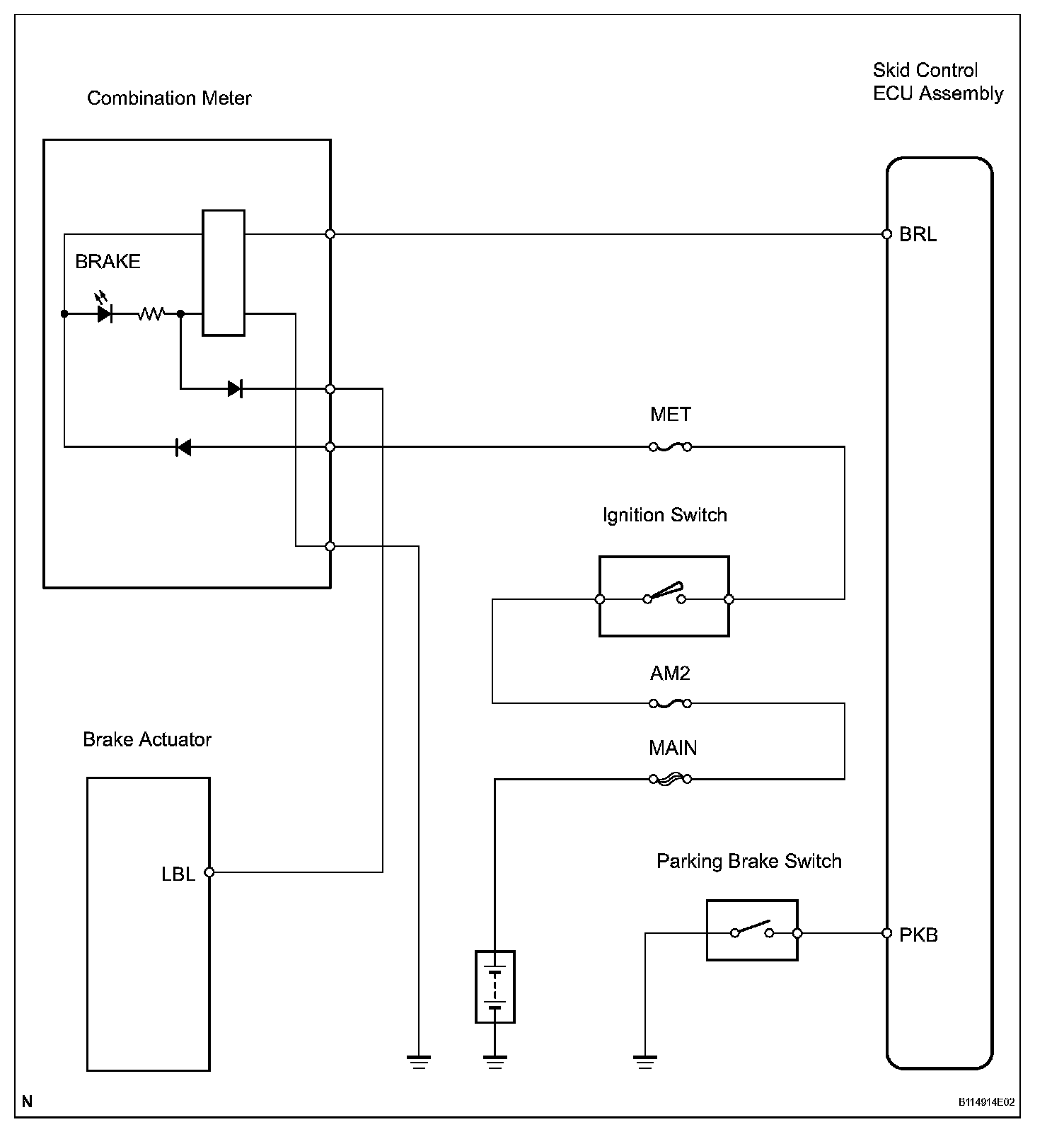

Wiring Diagram:

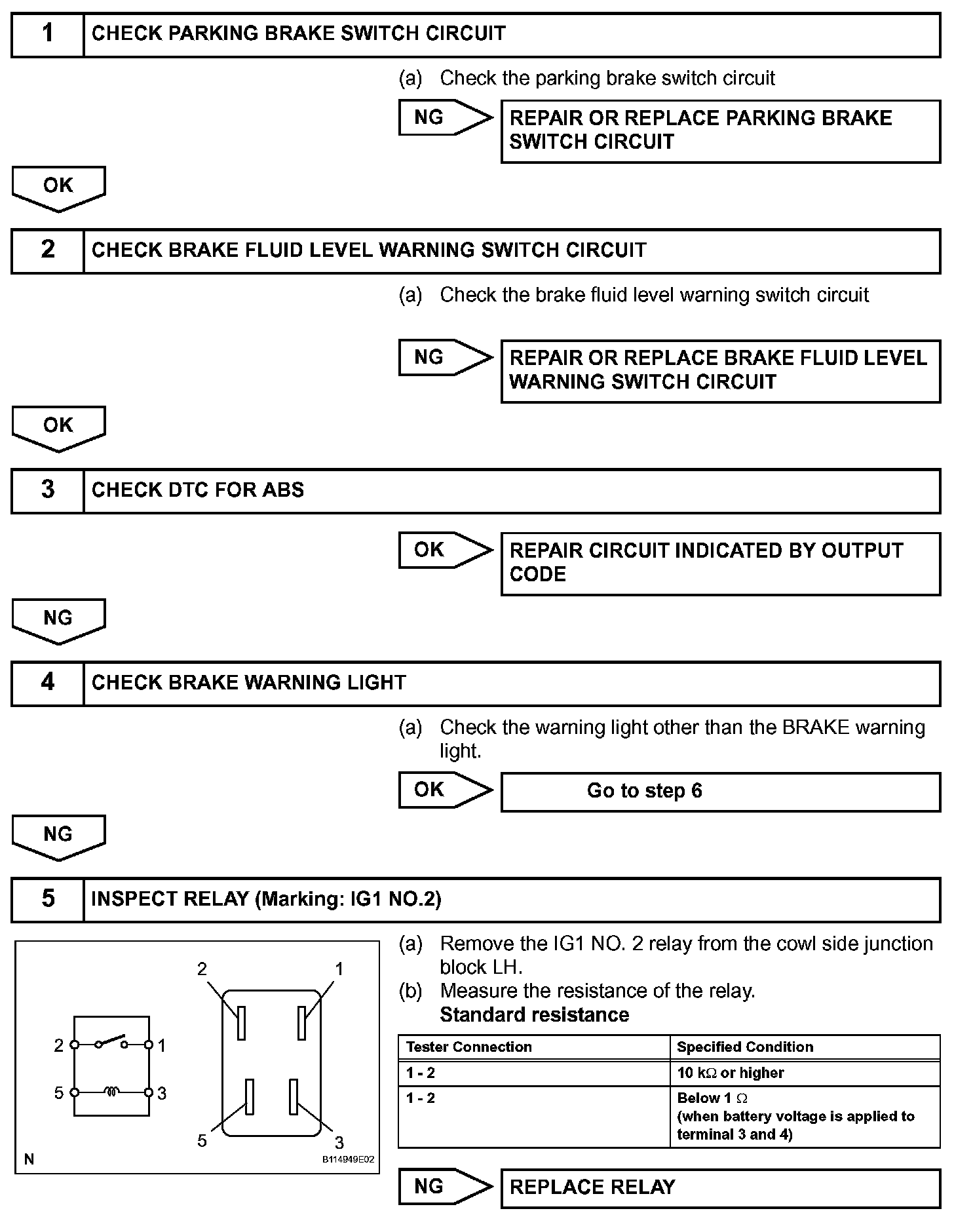

Step 1-5:

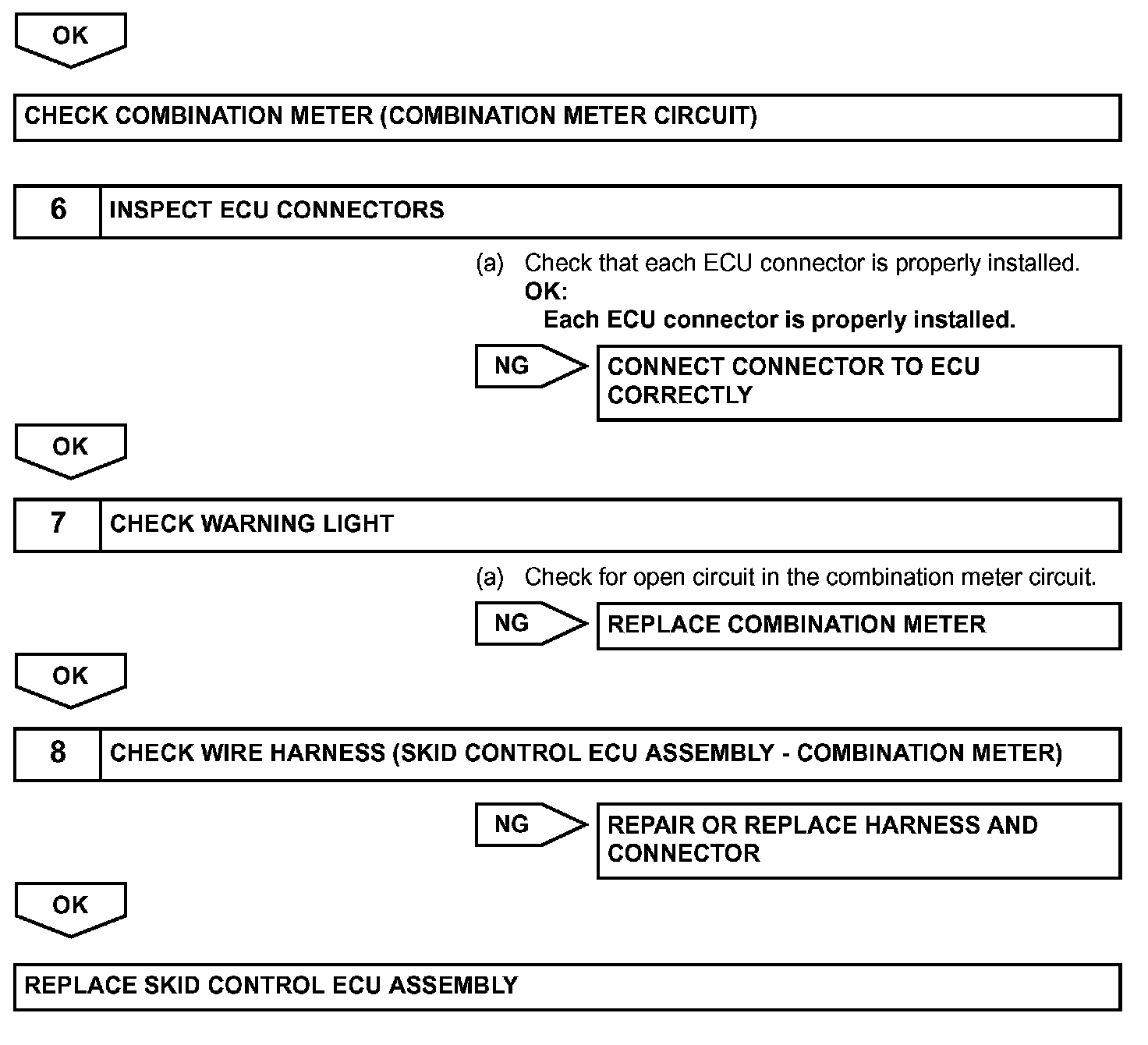

Step 5(Continued)-8:

INSPECTION PROCEDURE
