ABS Warning Light Circuit

ABS Warning Light Circuit

DESCRIPTION

If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory.Connect terminals TC and CG of DLC3 to make the ABS warning light blink and output the DTC.

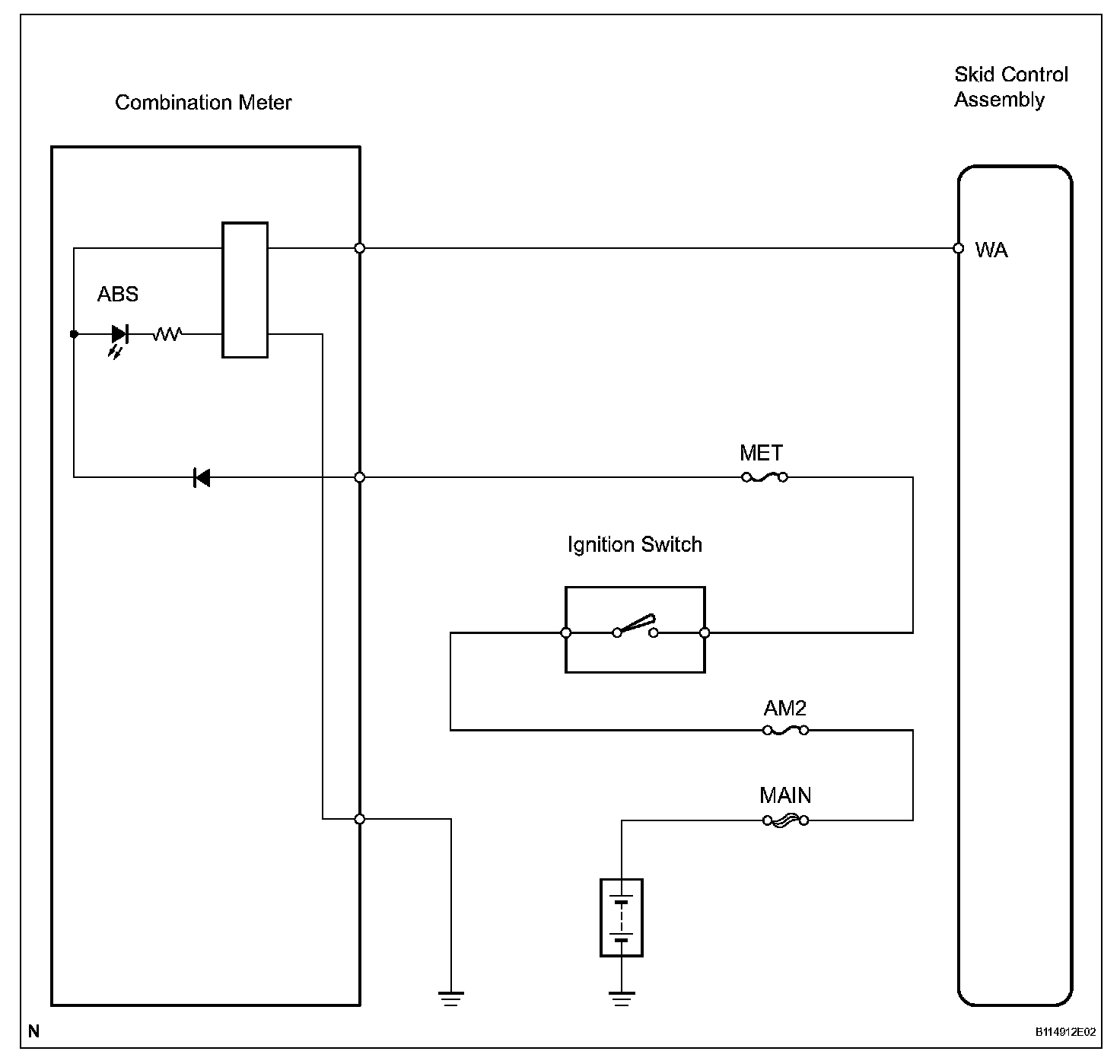

Wiring Diagram:

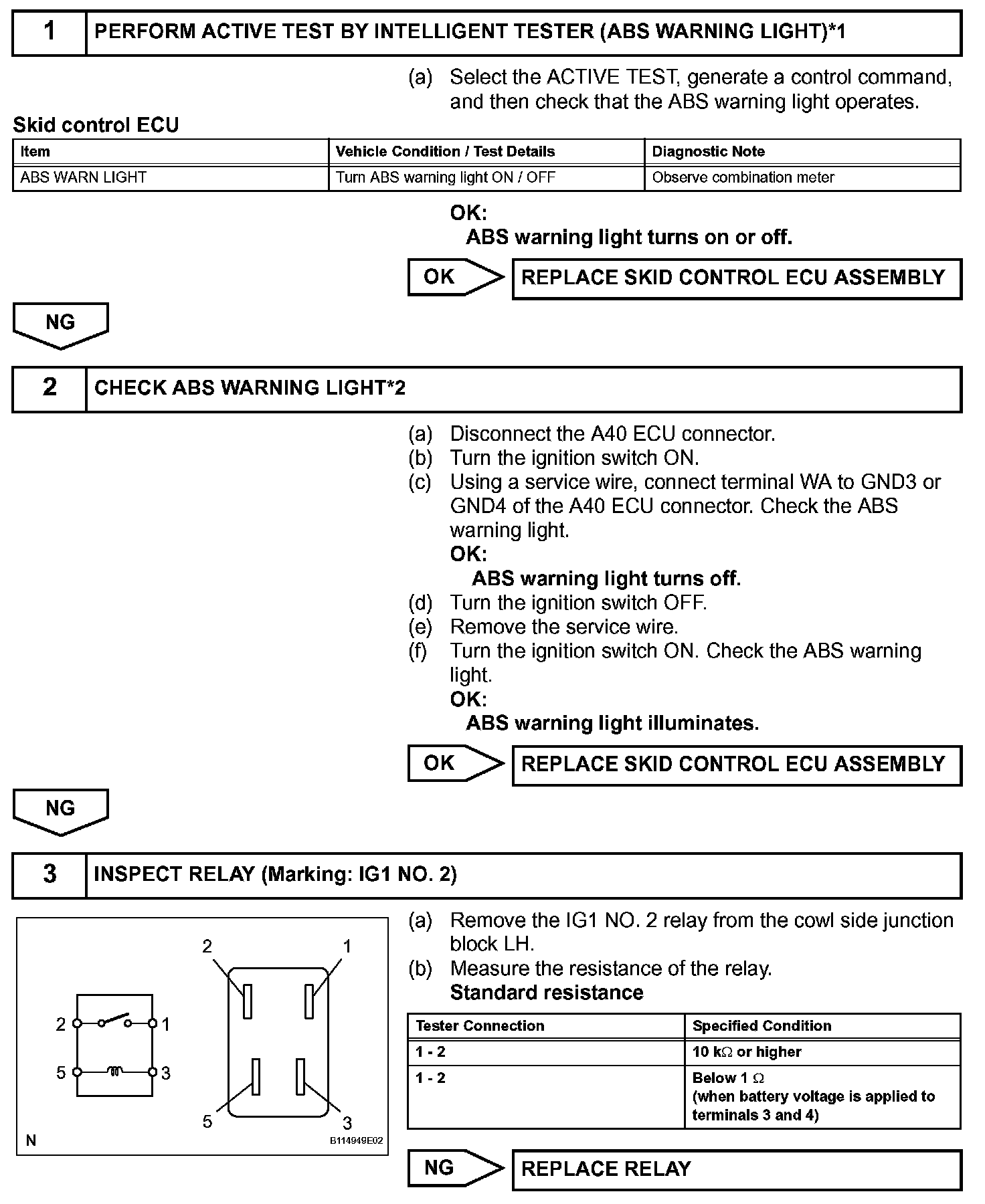

Step 1-3:

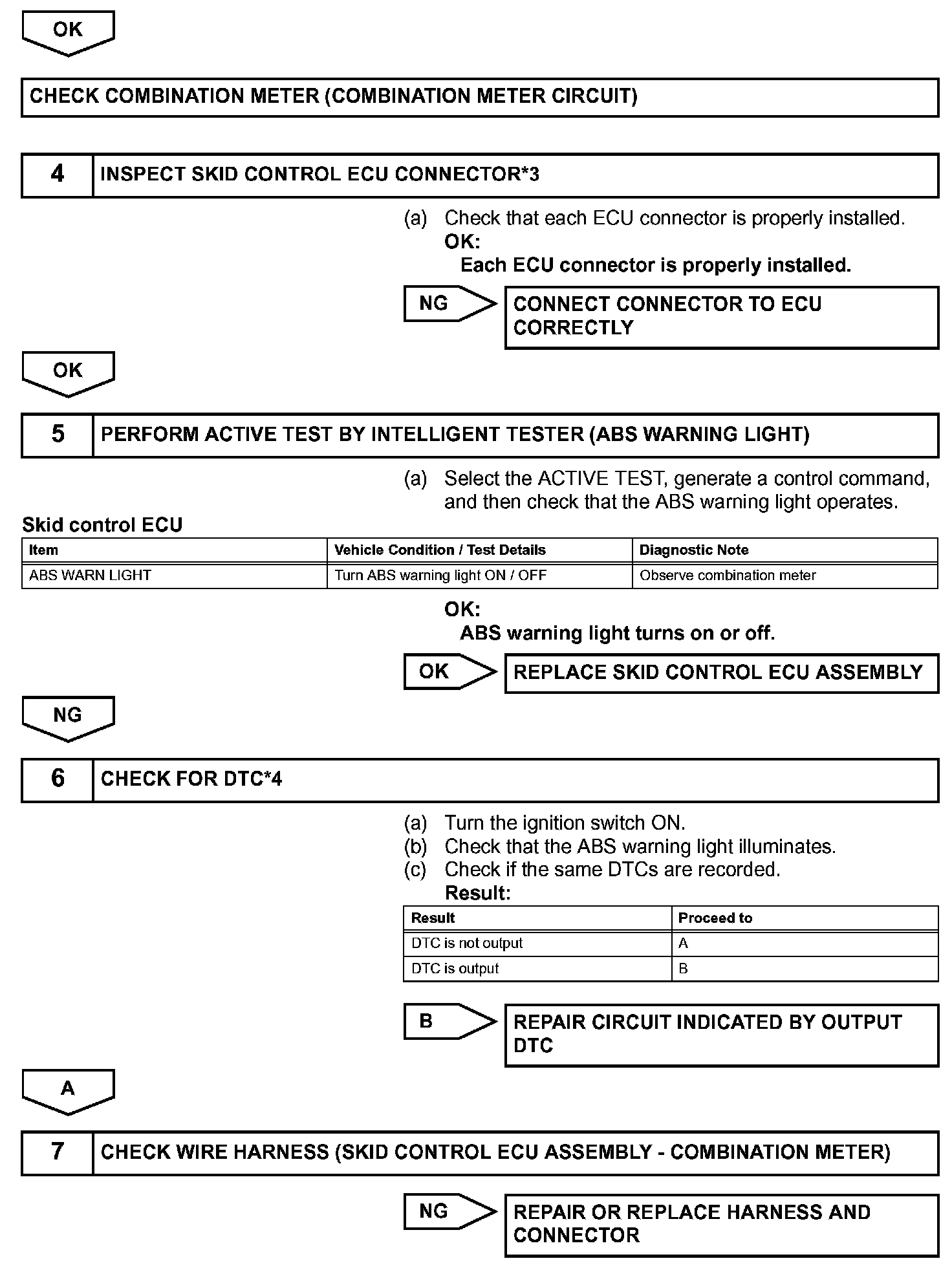

Step 3(Continued)-7:

Step 7(Continued):

INSPECTION PROCEDURE

HINT:
- When using the intelligent tester, start form *1 if the ABS warning light does not light up, or start form *3 if the ABS warning light remains on.
- When not using the intelligent tester, start form *2 if the ABS warning light does not light up, or start form *4 if the ABS warning light remains on.
