Front Power Seat Control System (W/ Seat Position Memory System)
PROBLEM SYMPTOMS TABLETroubleshoot the circuits for the applicable problem symptom in the order given in the chart below. Proceed to the appropriate DTC for each circuit.
HINT:
- If the instruction "Proceed to next circuit inspection shown on problem symptoms table" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
- If the trouble still reappears even though there are no abnormalities in any of the other circuits, then check the power seat control ECU as the last step. Replace if necessary.

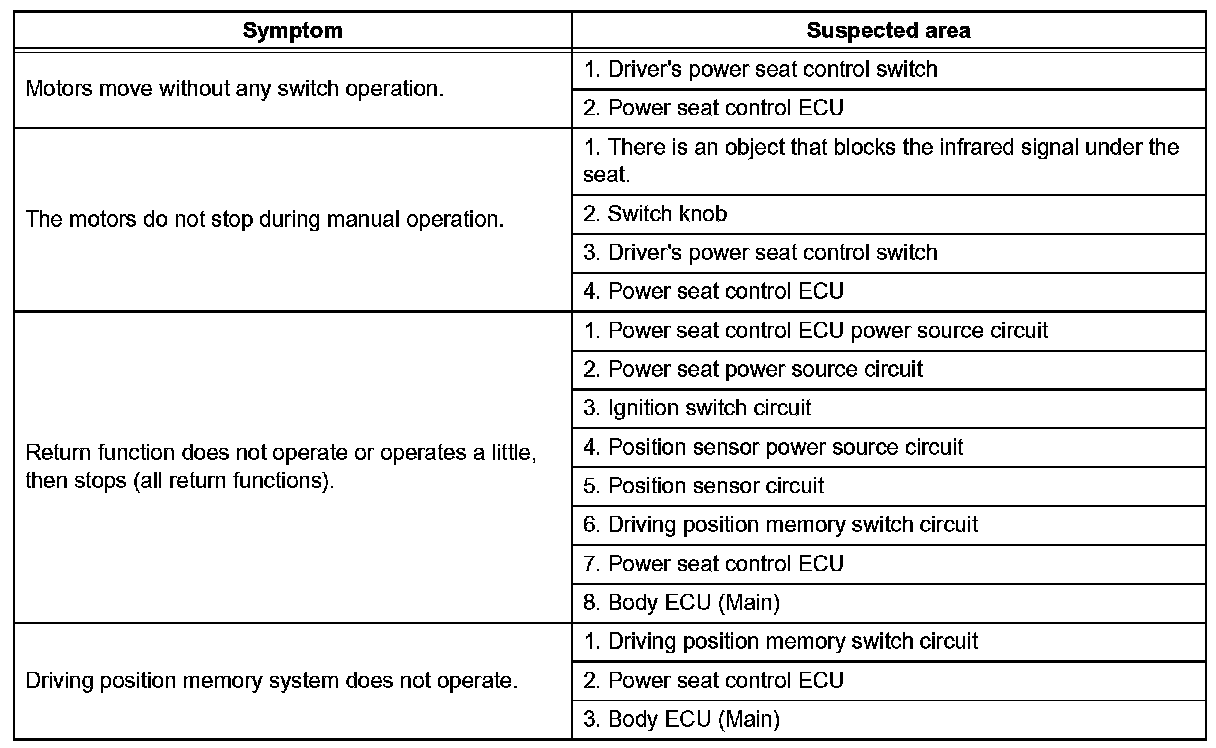

Problem Symptoms Table - Front Power Seat Control System (w/ Memory):
Problem Symptoms Table - Front Power Seat Control System (w/ Memory):
