Front Seat Assembly

FRONT SEAT ASSEMBLY

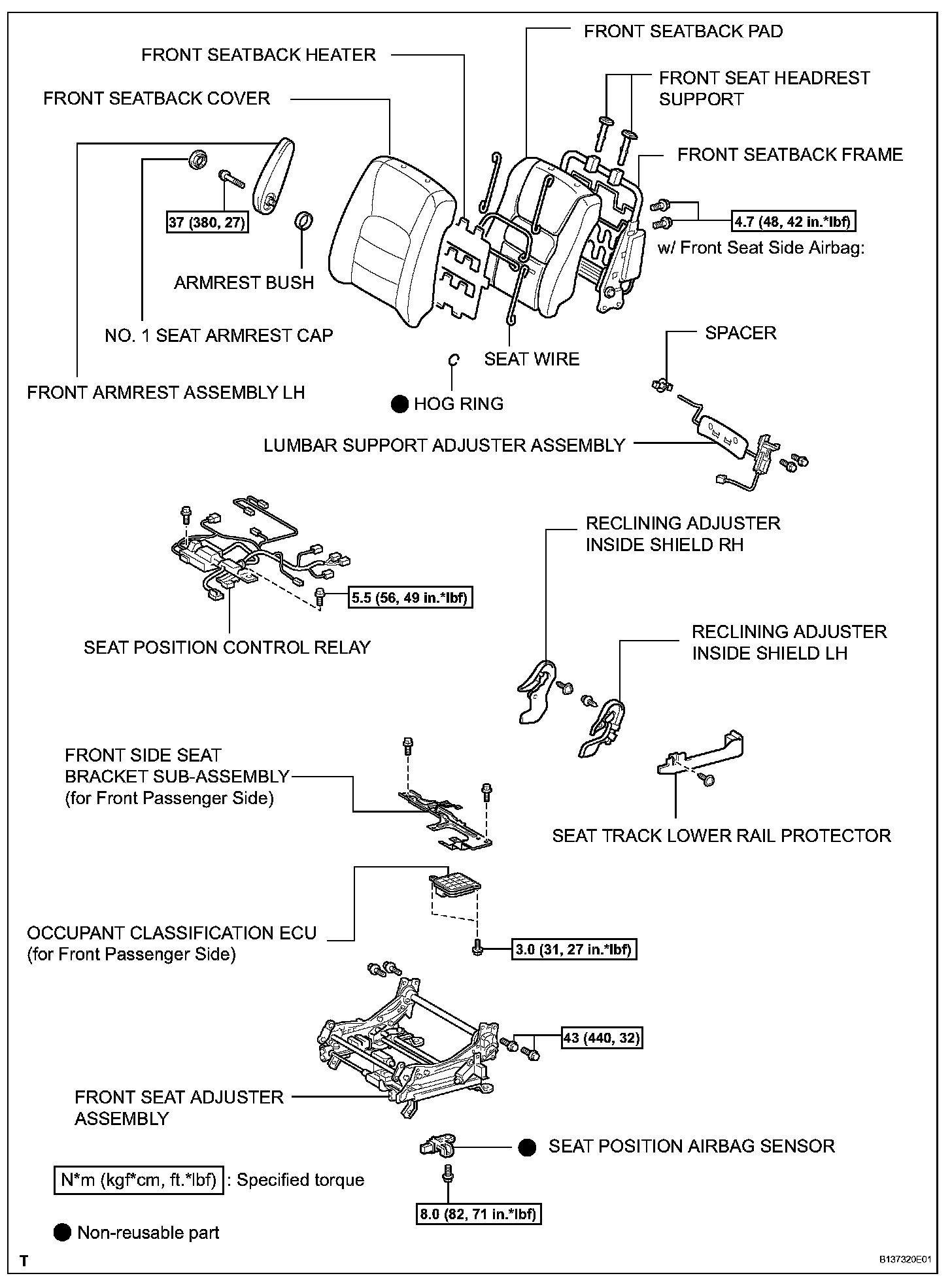

Front Seat Assembly:

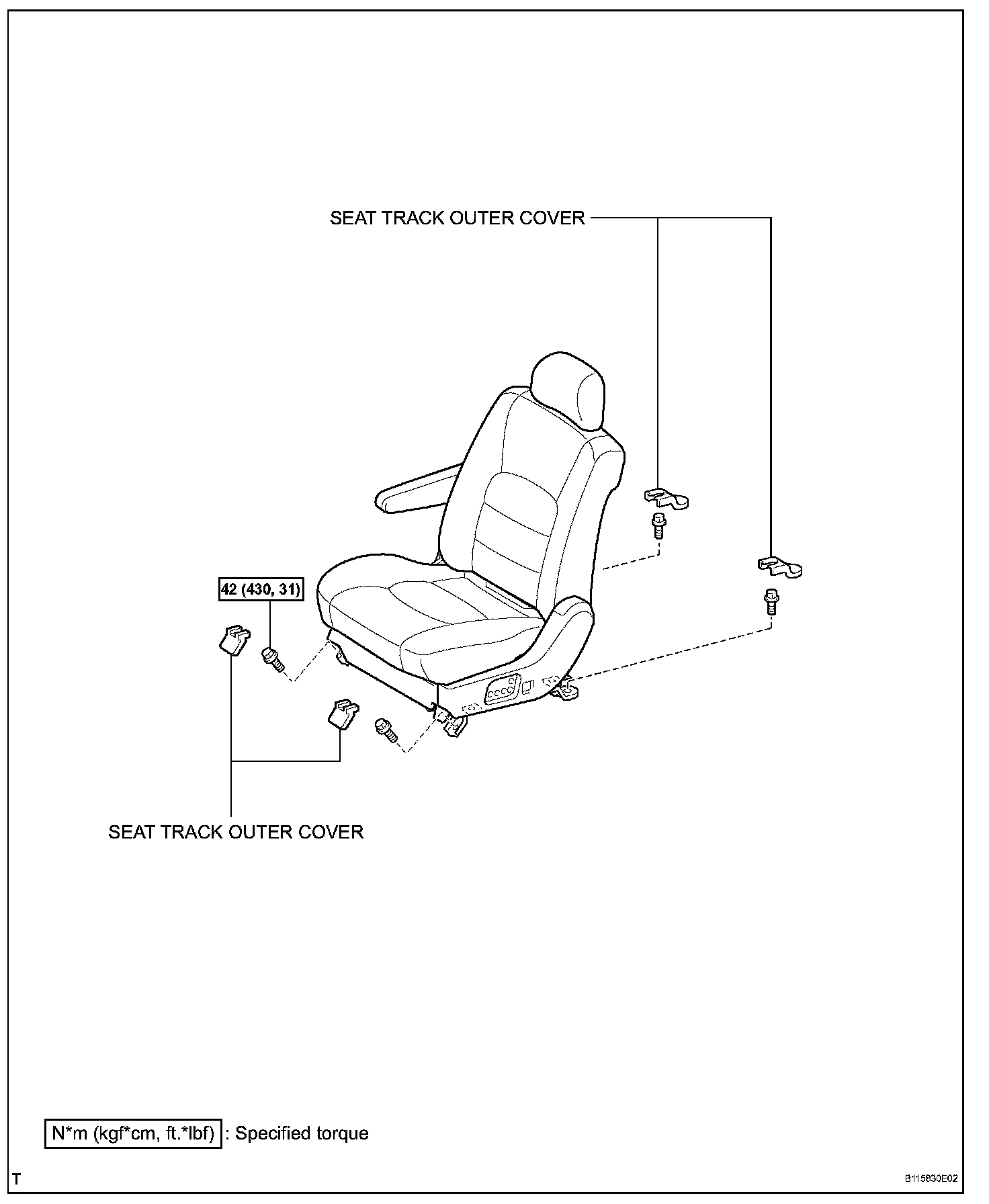

Front Seat Assembly:

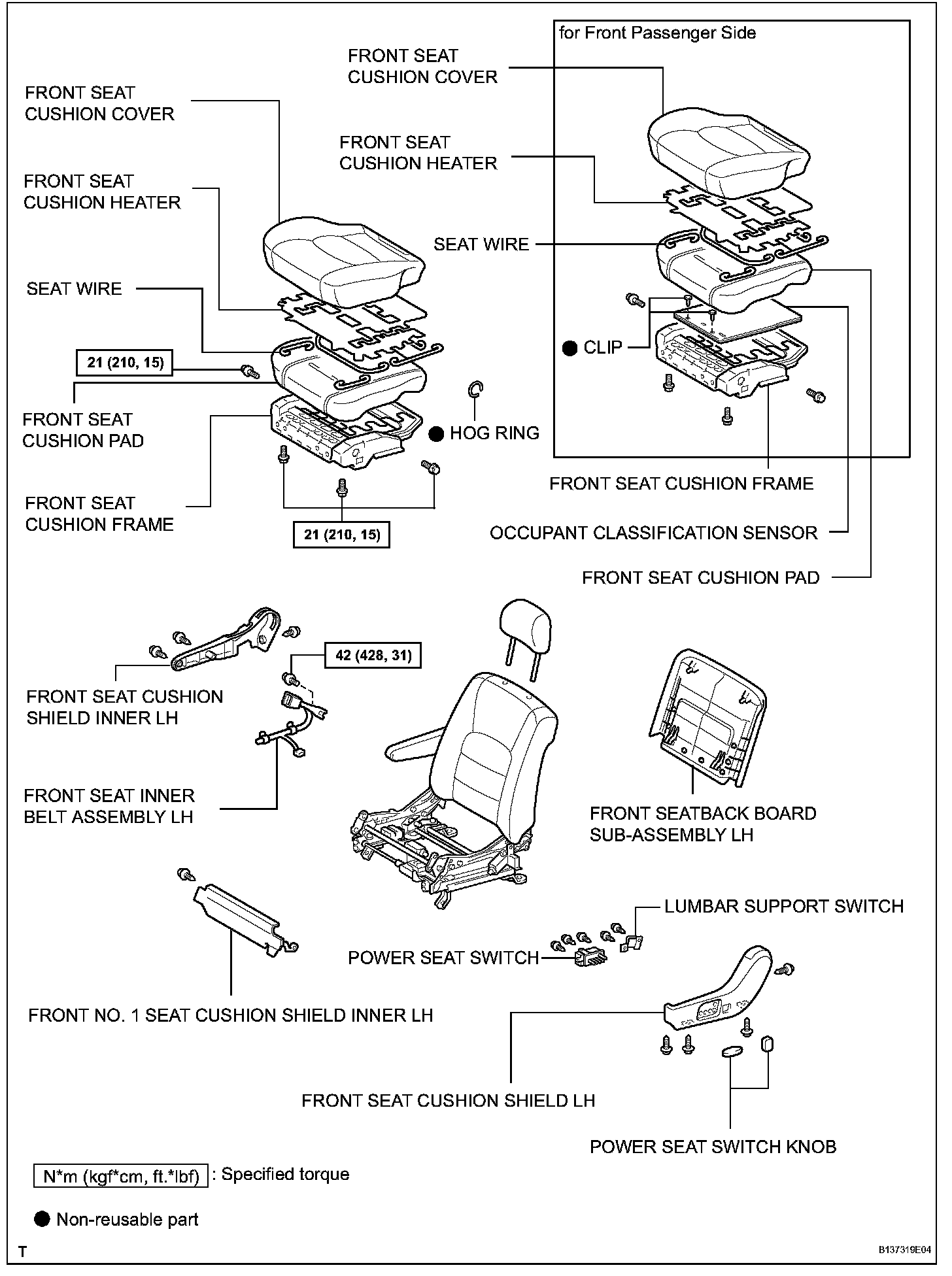

Front Seat Assembly:





REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE SEAT TRACK OUTER COVER
a. Using a screwdriver, detach the claws and remove the 4 covers.

HINT: Tape the screwdriver tip before use.

3. REMOVE FRONT SEAT ASSEMBLY
a. Remove the 4 bolts.
b. Disconnect the connectors and remove the seat.

NOTICE:
- When handling the airbag connector, take care not to damage the airbag wire harness.
- Be careful not to damage the vehicle body.

INSTALLATION

1. INSTALL FRONT SEAT ASSEMBLY
a. Install the seat and connect the connectors.

NOTICE:
- When handling the airbag connector, take care not to damage the airbag wire harness.
- Be careful not to damage the vehicle body.

b. Install the 4 bolts.

Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

2. INSTALL SEAT TRACK OUTER COVER
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
